NPPC062 Series

Catalog

CONN HDR 12POS 0.1 GOLD PCB R/A

Part	Contact Finish Thickness - Post	Contact Shape	Insulation Material	Contact Material	Material Flammability Rating	Contact Finish - Post	Current Rating (Amps)	Voltage Rating	Number of Rows [custom]	Connector Type	Contact Type	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Mating	Insulation Height [z]	Insulation Height [z]	Number of Positions	Fastening Type	Pitch - Mating	Pitch - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Mating	Insulation Color	Mounting Type	Number of Positions Loaded	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Features	Insulation Height
Sullins Connector Solutions NPPC062LJBN-RC	Flash	Square	Nylon 6T Polyamide (PA6T)	Phosphor Bronze	UL94 V-0	Gold	3 A	250 V	2	Header	Female Socket	0.124 in	3.15 mm	Flash	0.2 in	5.08 mm	12	Push-Pull	0.1 "	2.54 mm	0.1 in	2.54 mm	Gold	Black	Right Angle Through Hole	All	Solder	-40 C	105 ░C
Sullins Connector Solutions NPPC062KFMP-RC	Flash	Square	Nylon 6T Polyamide (PA6T)	Phosphor Bronze	UL94 V-0	Gold	3 A	250 V	2	Header	Female Socket			Flash	0.299 "		12	Push-Pull	0.1 "	2.54 mm	0.1 in	2.54 mm	Gold	Black	Surface Mount	All	Solder	-40 C	125 °C	Board Guide	7.6 mm

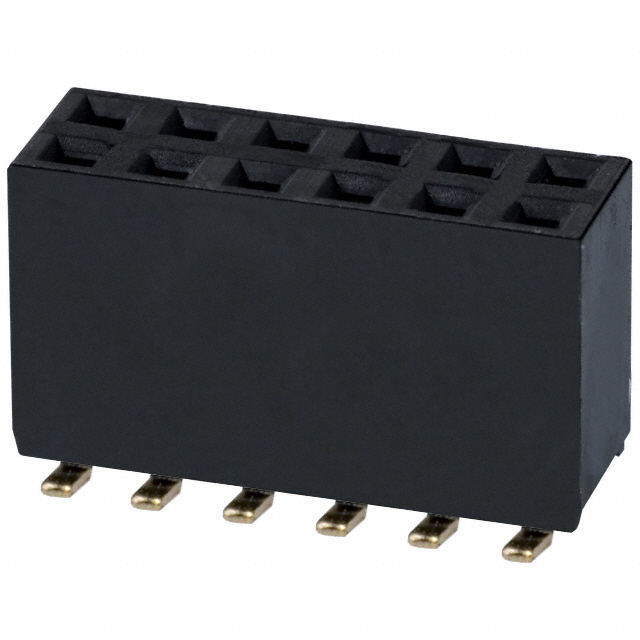

Sullins Connector Solutions NPPC062KFMS-RC	Flash	Square	Nylon 6T Polyamide (PA6T)	Phosphor Bronze	UL94 V-0	Gold	3 A	250 V	2	Header	Female Socket			Flash	0.299 "		12	Push-Pull	0.1 "	2.54 mm	0.1 in	2.54 mm	Gold	Black	Surface Mount	All	Solder	-40 C	125 °C		7.6 mm
