9A0824 Series

DC Fans DC Axial Fan, 60x60x25mm, 24VDC

Manufacturer: Sanyo Denki America Inc.

Catalog

DC Fans DC Axial Fan, 60x60x25mm, 24VDC

Catalog

DC Fans DC Axial Fan, 60x60x25mm, 24VDC

Part	Current Rating (Amps)	Material - Blade	Lifetime @ Temp.	Material - Frame	Voltage Range [Min]	Voltage Range [Max]	Features	Noise	Size / Dimension [z]	Size / Dimension [x]	RPM	Voltage - Rated	Approval Agency	Bearing Type	Width [y]	Static Pressure	Static Pressure	Operating Temperature [Min]	Operating Temperature [Max]	Weight	Weight	Power (Watts)	Fan Type	Termination	Air Flow	Air Flow	Operating Temperature [Max]	Operating Temperature [Min]

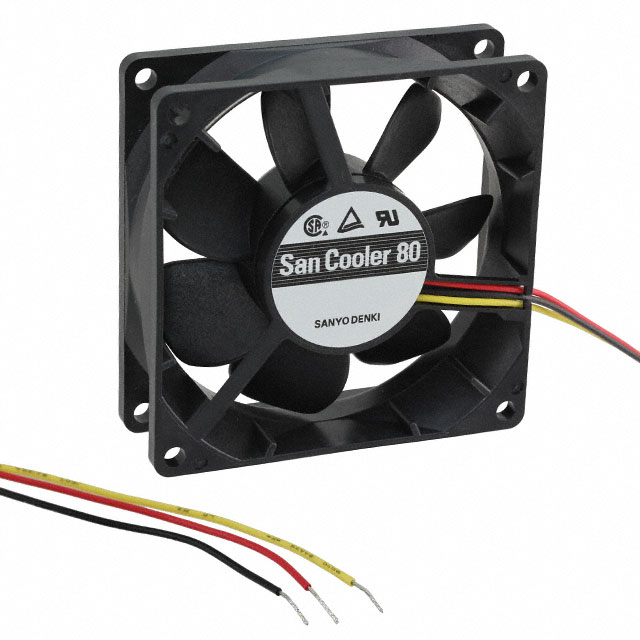

Sanyo Denki America Inc. 9A0824S4011	100 mA	Plastic	40000 Hrs	Plastic	12	27.6 VDC	Locked Rotor Protection Speed Sensor (Tach)	34 dB(A)	80 mm	80 mm	3400 RPM	24 VDC	CSA TUV UL	Ball	25 mm	0.193 in H2O	48.1 Pa	-20 ░C	70 °C	0.199 lb	90.26 g	2.4 W	Tubeaxial	3 Wire Leads
Sanyo Denki America Inc. 9A0824G401	0.21 A	Plastic		Plastic	12 VDC	26.4 VDC	Locked Rotor Protection Speed Sensor (Tach)	40 dB(A)	80 mm	80 mm	4500 RPM	24 VDC	CSA TUV UL	Ball	25 mm	0.323 in H2O	80.4 Pa	-20 ░C	60 °C	0.199 lb	90.26 g	5.04 W	Tubeaxial	3 Wire Leads	53 CFM	1.48 mł/min	60 °C	-4 °F

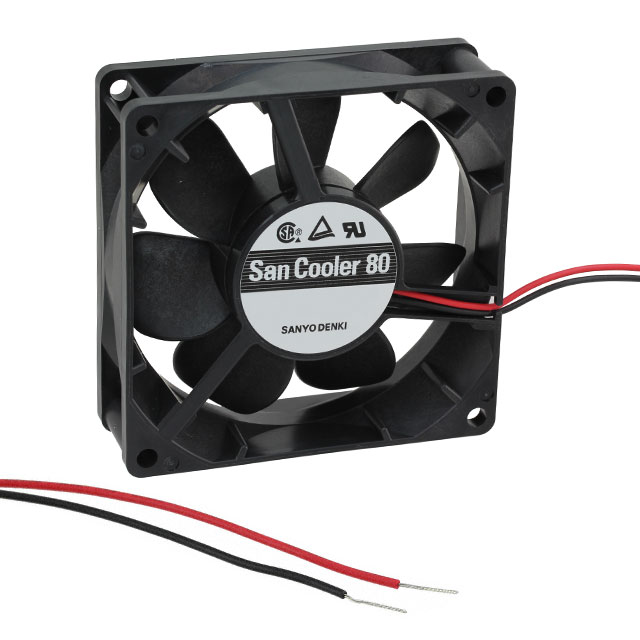

Sanyo Denki America Inc. 9A0824H402	70 mA	Plastic	40000 Hrs	Plastic	12	27.6 VDC		29 dB(A)	80 mm	80 mm	2900 RPM	24 VDC	CSA TUV UL	Ball	25 mm	0.142 in H2O	35.4 Pa	-20 ░C	70 °C	0.199 lb	90.26 g	1.68 W	Tubeaxial	2 Wire Leads	36.4 CFM	1.02 m³/min

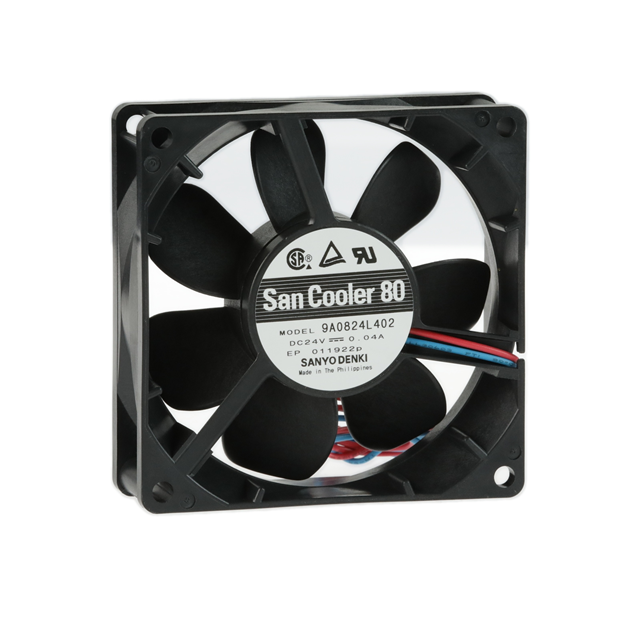

Sanyo Denki America Inc. 9A0824L402	40 mA	Plastic	40000 Hrs	Plastic	14	27.6 VDC		20 dB	80 mm	80 mm	1850 RPM	24 VDC	CSA TUV UL	Ball	25 mm	0.059 in H2O	14.7 Pa	-20 ░C	70 °C	0.199 lb	90.26 g	960 mW	Tubeaxial	2 Wire Leads	23 CFM	0.644 m³/min
Sanyo Denki America Inc. 9A0824S4D01	100 mA	Plastic	40000 Hrs	Plastic	12	27.6 VDC	Locked Rotor Sensor	34 dB(A)	80 mm	80 mm	3400 RPM	24 VDC	CSA TUV UL	Ball	25 mm	0.193 in H2O	48.1 Pa	-20 ░C	70 °C	0.199 lb	90.26 g	2.4 W	Tubeaxial	3 Wire Leads	42.4 CFM	1.19 mł/min
Sanyo Denki America Inc. 9A0824H401	70 mA	Plastic	40000 Hrs	Plastic	12	27.6 VDC	Locked Rotor Protection Speed Sensor (Tach)	29 dB(A)	80 mm	80 mm	2900 RPM	24 VDC	CSA TUV UL	Ball	25 mm	0.142 in H2O	35.4 Pa	-20 ░C	70 °C	0.199 lb	90.26 g	1.68 W	Tubeaxial	3 Wire Leads	36.4 CFM	1.02 m³/min
Sanyo Denki America Inc. 9A0824M4011	50 mA	Plastic	40000 Hrs	Plastic	12	27.6 VDC	Locked Rotor Protection Speed Sensor (Tach)	23 dB(A)	80 mm	80 mm	2350 RPM	24 VDC	CSA TUV UL	Ball	25 mm	0.09 in H2O	22.4 Pa	-20 ░C	70 °C	0.199 lb	90.26 g	1.2 W	Tubeaxial	3 Wire Leads	29.3 CFM	0.82 m³/min
Sanyo Denki America Inc. 9A0824F4D011	60 mA	Plastic	40000 Hrs	Plastic	12	27.6 VDC	Locked Rotor Sensor	26 dB	80 mm	80 mm	2600 RPM	24 VDC	CSA TUV UL	Ball	25 mm	0.114 in H2O	28.4 Pa	-20 ░C	70 °C	0.199 lb	90.26 g	1.44 W	Tubeaxial	3 Wire Leads	32.5 CFM	0.91 mł/min
Sanyo Denki America Inc. 9A0824M401	50 mA	Plastic	40000 Hrs	Plastic	12	27.6 VDC	Locked Rotor Protection Speed Sensor (Tach)	23 dB(A)	80 mm	80 mm	2350 RPM	24 VDC	CSA TUV UL	Ball	25 mm	0.09 in H2O	22.4 Pa	-20 ░C	70 °C	0.199 lb	90.26 g	1.2 W	Tubeaxial	3 Wire Leads	29.3 CFM	0.82 m³/min
Sanyo Denki America Inc. 9A0824M4D011	50 mA	Plastic	40000 Hrs	Plastic	12	27.6 VDC	Locked Rotor Sensor	23 dB(A)	80 mm	80 mm	2350 RPM	24 VDC	CSA TUV UL	Ball	25 mm	0.09 in H2O	22.4 Pa	-20 ░C	70 °C	0.199 lb	90.26 g	1.2 W	Tubeaxial	3 Wire Leads	29.3 CFM	0.82 m³/min
