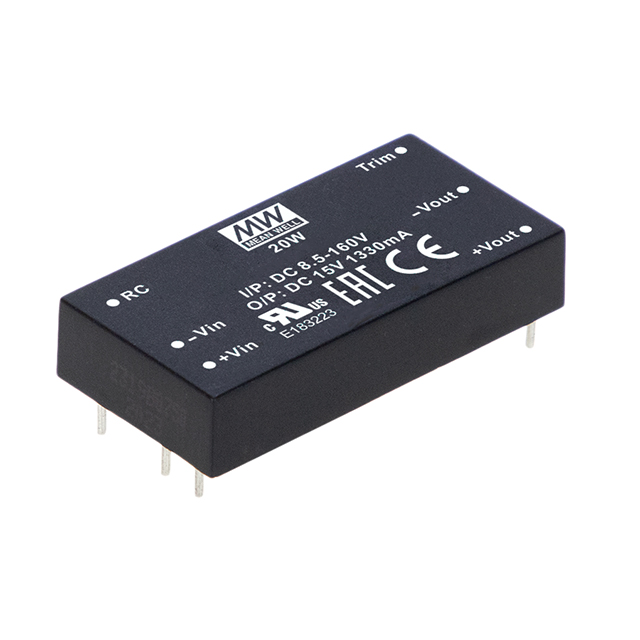

RSDW20 Series

Catalog

DC/DC MODULE 20W,I/P: 8.5-160VDC

Part	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1	Current - Output (Max) [Max]	Efficiency	Package / Case	Power (Watts)	Approval Agency	Mounting Type	Features	Size / Dimension	Type	Applications	Voltage - Isolation	Voltage - Input (Max) [Max]	Number of Outputs
MEAN WELL USA Inc. RSDW20UW-12	8.5 V	95 °C	-40 °C	12 V	1.67 A	89 %	6-DIP Module	20 W	CE cURus EAC UL	Through Hole	Remote On/Off	0.4 in 10.2 mm 25.4 mm 50.8 mm	Isolated Module	ITE (Commercial) Railway	3000 V	160 V	1
MEAN WELL USA Inc. RSDW20UW-05	8.5 V	95 °C	-40 °C	5 V	4 A	85.5 %	6-DIP Module	20 W	CE cURus EAC UL	Through Hole	Remote On/Off	0.4 in 10.2 mm 25.4 mm 50.8 mm	Isolated Module	ITE (Commercial) Railway	3000 V	160 V	1
MEAN WELL USA Inc. RSDW20UW-15	8.5 V	95 °C	-40 °C	15 V	1.33 A	89 %	6-DIP Module	20 W	CE cURus EAC UL	Through Hole	Remote On/Off	0.4 in 10.2 mm 25.4 mm 50.8 mm	Isolated Module	ITE (Commercial) Railway	3000 V	160 V	1
