1761633 Series

Catalog

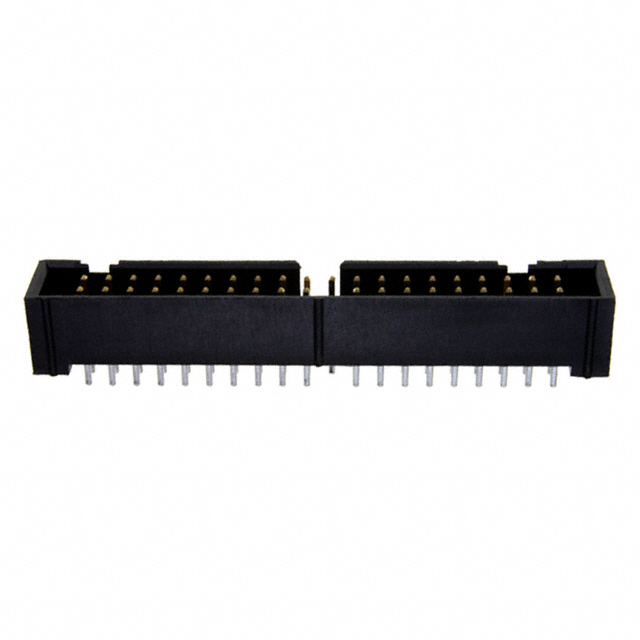

IDC LOW PRO HDR 39/40P VERT 15 AU

Part	Insulation Height [custom]	Insulation Height [custom]	Termination	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions	Fastening Type	Contact Material	Material Flammability Rating	Contact Length - Mating	Contact Length - Mating [x]	Number of Positions Loaded	Features	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape	Shrouding	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Connector Type	Insulation Color	Number of Rows	Mounting Type	Contact Type	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Insulation Material	Style	Contact Finish - Post
TE Connectivity Raychem Cable Protection 1761633-2	0.35 in	8.89 mm	Solder	2.54 mm	0.1 in	40	Push-Pull	Phosphor Bronze	UL94 V-0	6.1 mm	0.24 in	39	Keying Slot	15 µin	0.38 µm	Square	Shrouded - 4 Wall	0.102 in	2.6 mm	2.54 µm	100 µin	Header	Black	2	Through Hole	Male Pin	0.1 in	2.54 mm	Gold	Polybutylene Terephthalate (PBT)	Board to Cable/Wire	Tin
