51721 Series

Catalog

R/A HDR POWERBLADE

Part	Connector Style	Operating Temperature [Min]	Operating Temperature [Max]	Features	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Contact Finish	Pitch [x]	Pitch [x]	Material Flammability Rating	Mounting Type	Termination	Color	Contact Layout, Typical [custom]	Contact Layout, Typical [custom]	Connector Type	Number of Positions Loaded	Contact Layout, Typical [custom]	Contact Layout, Typical [custom]	Number of Positions
Amphenol ICC (FCI) 51721-10000807AA	Blade Power	-20 C	105 ░C	Board Lock Mating Guide	0.76 Ám	30 Áin	15	Gold or Gold GXT™	2.54 mm	0.1 in	UL94 V-0	Board Edge Right Angle Through Hole	Solder	Black	7 Power	8 Signal	Header Male Pins and Blades	All
Amphenol ICC (FCI) 51721-10001204ABLF	Blade Power	-20 C	105 ░C	Mating Guide	0.76 Ám	30 Áin		Gold or Gold GXT™	2.54 mm	0.1 in	UL94 V-0	Board Edge Right Angle Through Hole	Solder	Black			Header Male Pins and Blades	All	12	4	16
Amphenol ICC (FCI) 51721-10000806ABLF	Blade Power	-20 C	105 ░C	Mating Guide	0.76 Ám	30 Áin	14	Gold or Gold GXT™	2.54 mm	0.1 in	UL94 V-0	Board Edge Right Angle Through Hole	Solder	Black			Header Male Pins and Blades	All	8	6
Amphenol ICC (FCI) 51721-10001604AALF	Blade Power	-20 C	105 ░C	Board Lock Mating Guide	0.76 Ám	30 Áin	20	Gold or Gold GXT™	2.54 mm	0.1 in	UL94 V-0	Board Edge Right Angle Through Hole	Solder	Black			Header Male Pins and Blades	All	16	4
Amphenol ICC (FCI) 51721-10002406AB	Blade Power	-20 C	105 ░C	Mating Guide	0.76 Ám	30 Áin	30	Gold or Gold GXT™	2.54 mm	0.1 in	UL94 V-0	Board Edge Right Angle Through Hole	Solder	Black			Header Male Pins and Blades	All	24	6

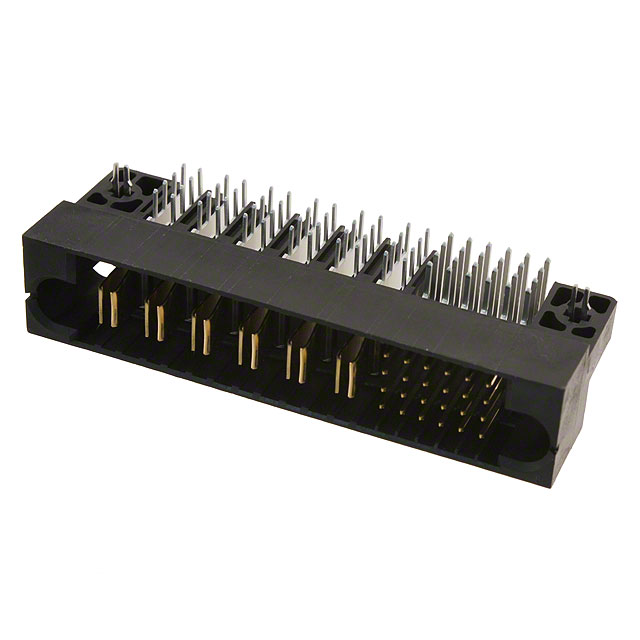

Amphenol ICC (FCI) 51721-10002406AALF	Blade Power	-20 C	105 ░C	Board Lock Mating Guide	0.76 Ám	30 Áin	30	Gold or Gold GXT™	2.54 mm	0.1 in	UL94 V-0	Board Edge Right Angle Through Hole	Solder	Black			Header Male Pins and Blades	All	24	6
Amphenol ICC (FCI) 51721-10003603AA	Blade Power	-20 C	105 ░C	Board Lock Mating Guide	0.76 Ám	30 Áin	39	Gold or Gold GXT™	2.54 mm	0.1 in	UL94 V-0	Board Edge Right Angle Through Hole	Solder	Black			Header Male Pins and Blades	All	36	3
Amphenol ICC (FCI) 51721-10000406AALF	Blade Power	-20 C	105 ░C	Board Lock Mating Guide	0.76 Ám	30 Áin	10	Gold or Gold GXT™	2.54 mm	0.1 in	UL94 V-0	Board Edge Right Angle Through Hole	Solder	Black			Header Male Pins and Blades	All	4	6
Amphenol ICC (FCI) 51721-10002004AALF	Blade Power	-20 C	105 ░C	Board Lock Mating Guide	0.76 Ám	30 Áin	24	Gold or Gold GXT™	2.54 mm	0.1 in	UL94 V-0	Board Edge Right Angle Through Hole	Solder	Black			Header Male Pins and Blades	All	20	4
Amphenol ICC (FCI) 51721-10001608AALF	Blade Power	-20 C	105 ░C	Board Lock Mating Guide	0.76 Ám	30 Áin	24	Gold or Gold GXT™	2.54 mm	0.1 in	UL94 V-0	Board Edge Right Angle Through Hole	Solder	Black			Header Male Pins and Blades	All	16	8
