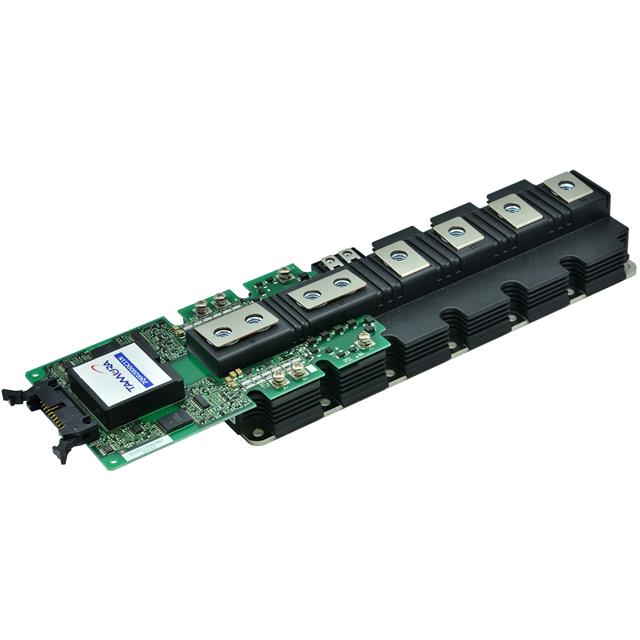

2QG020 Series
Manufacturer: Tamura
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
IC GATE DRVR HALF-BRIDGE MODULE
| Part | Voltage - Supply (Maximum) | Voltage - Supply (Minimum) | Number of Drivers | Operating Temperature (Min) | Operating Temperature (Max) | Package Name | Driven Configuration | Fall Time (Typ) | Rise Time (Typ) | Input Type | Mounting Type | Gate Type | Package / Case | Channel Type | Current - Peak Output (Sink) | Current - Peak Output (Source) | Logic Voltage - VIL | Logic Voltage - VIH |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Tamura | 28 V | 13 V | 2 | -40 °C | 85 °C | Module | Half-Bridge | 500 ns | 500 ns | Non-Inverting | Chassis Mount | IGBT | Module | Independent | 43 A | 43 A | 0.5 V | 13 V |
