001084 Series

Manufacturer: Molex

Catalog

CONN HEADER VERT 15POS 6.35MM

Part	Applications	Insulation Material	Insulation Height	Insulation Height	Connector Type	Contact Shape	Style	Contact Type	Number of Positions	Termination	Number of Rows [custom]	Contact Finish - Post	Fastening Type	Number of Positions Loaded	Material Flammability Rating	Mounting Type	Pitch - Mating	Pitch - Mating	Shrouding	Row Spacing - Mating	Row Spacing - Mating	Contact Length - Post	Contact Length - Post	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Number of Rows	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]

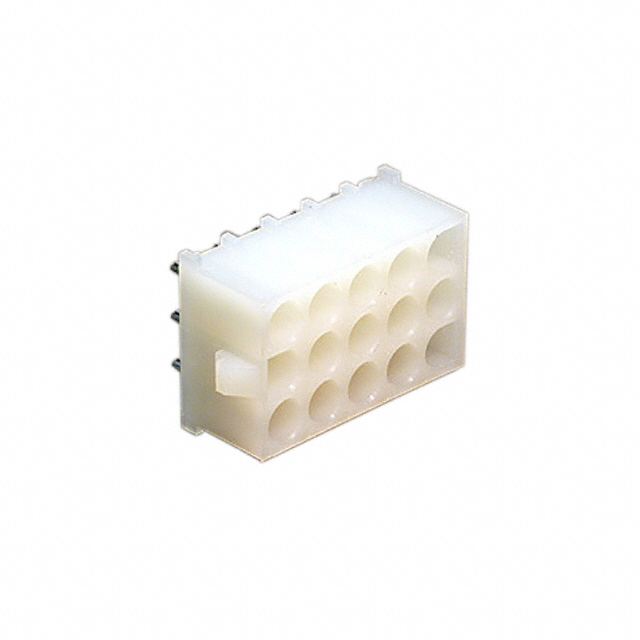

Molex 0010844150	Automotive General Purpose Industrial	Nylon 6/6 Polyamide (PA66)	0.55 in	13.97 mm	Header	Circular	Board to Cable/Wire	Male Pin	15	Solder	3	Tin	Locking Ramp	All	UL94 V-2	Through Hole	6.35 mm	0.25 in	Shrouded - 4 Wall	6.35 mm	0.25 in	0.169 in	4.3 mm	Natural	137.8 µin	3.5 µm
Molex 0010844042	Automotive General Purpose Industrial Telecommunications	Nylon 6/6 Polyamide (PA66)	0.55 in	13.97 mm	Header	Circular	Board to Cable/Wire	Female Socket	4	Solder		Tin	Locking Ramp	All	UL94 V-2	Through Hole	6.35 mm	0.25 in				0.169 in	4.3 mm	Natural	137.8 µin	3.5 µm	3.5 Ám	137.8 Áin	Phosphor Bronze	1	600 V	-55 C	105 ░C
Molex 0010845150	Automotive General Purpose Industrial	Polybutylene Terephthalate (PBT)	0.55 in	13.97 mm	Header	Circular	Board to Cable/Wire	Male Pin	15	Solder	3	Tin	Locking Ramp	All	UL94 V-0	Through Hole	6.35 mm	0.25 in	Shrouded - 4 Wall	6.35 mm	0.25 in	0.169 in	4.3 mm	Natural	137.8 µin	3.5 µm
Molex 0010845040	Automotive General Purpose Industrial	Polybutylene Terephthalate (PBT)	0.55 in	13.97 mm	Header	Circular	Board to Cable/Wire	Male Pin	4	Solder		Tin	Locking Ramp	All	UL94 V-0	Through Hole	6.35 mm	0.25 in	Shrouded - 4 Wall			0.169 in	4.3 mm	Natural	137.8 µin	3.5 µm				1

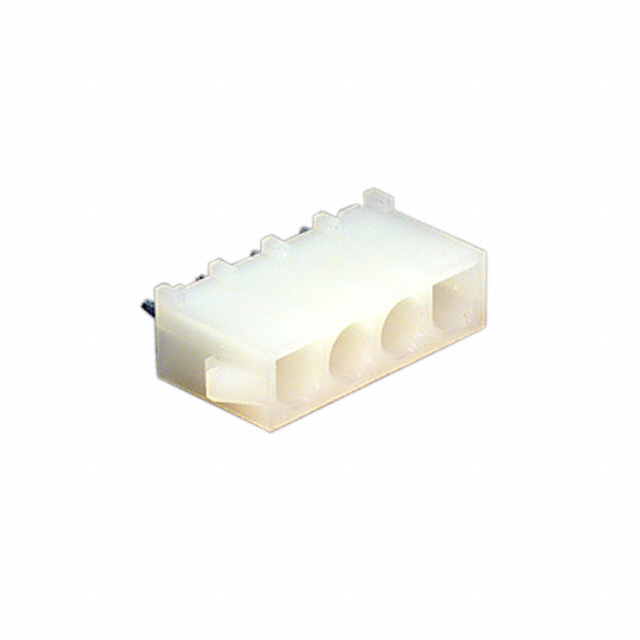

Molex 0010844040	Automotive General Purpose Industrial	Nylon 6/6 Polyamide (PA66)	0.55 in	13.97 mm	Header	Circular	Board to Cable/Wire	Male Pin	4	Solder		Tin	Locking Ramp	All	UL94 V-2	Through Hole	6.35 mm	0.25 in	Shrouded - 4 Wall			0.169 in	4.3 mm	Natural	137.8 µin	3.5 µm				1

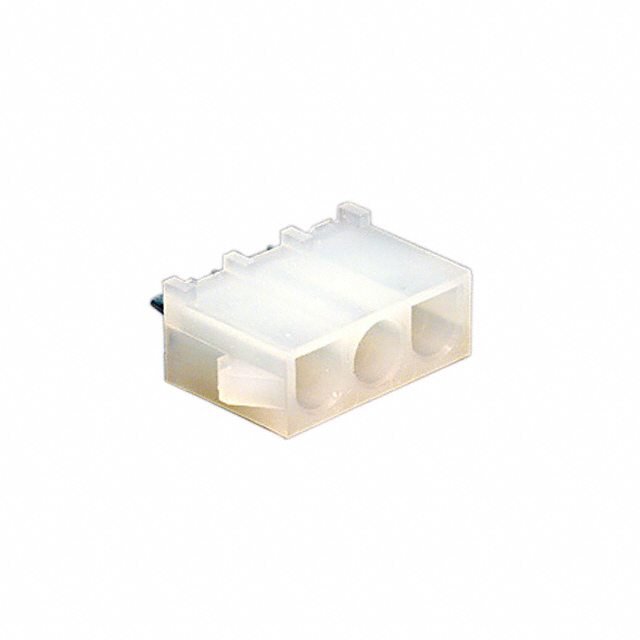

Molex 0010844032	Automotive General Purpose Industrial Telecommunications	Nylon 6/6 Polyamide (PA66)	0.55 in	13.97 mm	Header	Circular	Board to Cable/Wire	Female Socket		Solder		Tin	Locking Ramp	All	UL94 V-2	Through Hole	6.35 mm	0.25 in				0.169 in	4.3 mm	Natural	137.8 µin	3.5 µm	3.5 Ám	137.8 Áin	Phosphor Bronze	1	600 V	-55 C	105 ░C

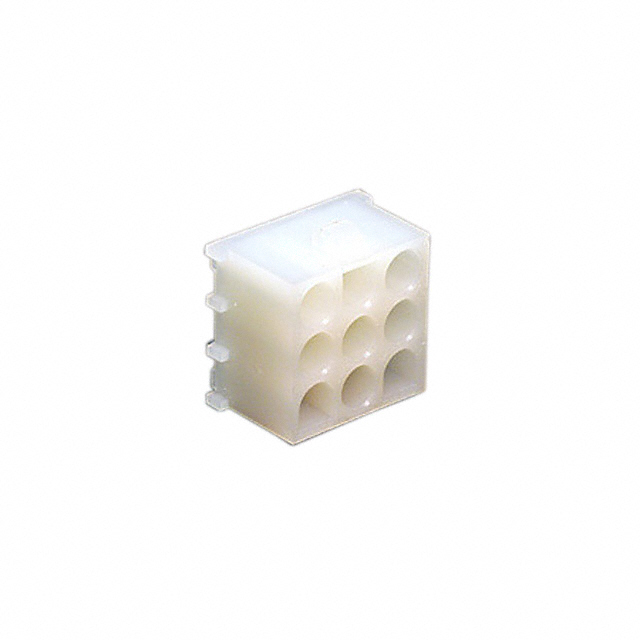

Molex 0010844090	Automotive General Purpose Industrial	Nylon 6/6 Polyamide (PA66)	0.55 in	13.97 mm	Header	Circular	Board to Cable/Wire	Male Pin	9	Solder	3	Tin	Locking Ramp	All	UL94 V-2	Through Hole	6.35 mm	0.25 in	Shrouded - 4 Wall	6.35 mm	0.25 in	0.169 in	4.3 mm	Natural	137.8 µin	3.5 µm
Molex 0010844122	Automotive General Purpose Industrial Telecommunications	Nylon 6/6 Polyamide (PA66)	0.55 in	13.97 mm	Header	Circular	Board to Cable/Wire	Female Socket	12	Solder	3	Tin	Locking Ramp	All	UL94 V-2	Through Hole	6.35 mm	0.25 in		6.35 mm	0.25 in	0.169 in	4.3 mm	Natural	137.8 µin	3.5 µm	3.5 Ám	137.8 Áin	Phosphor Bronze		600 V	-55 C	105 ░C

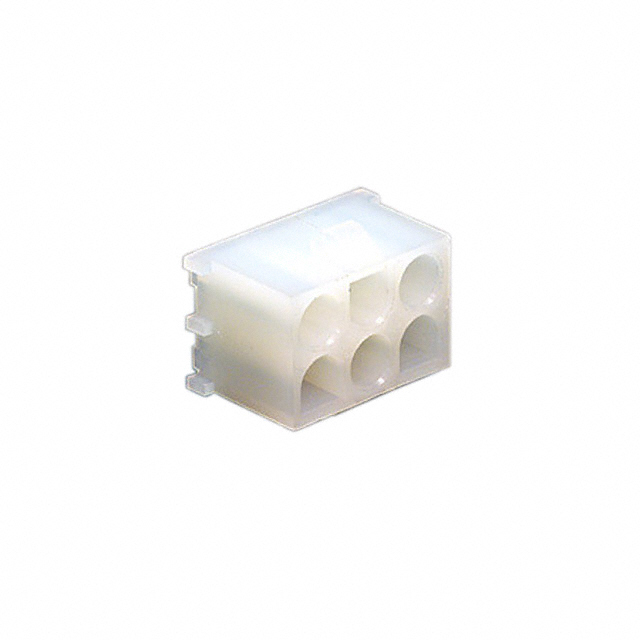

Molex 0010844060	Automotive General Purpose Industrial	Nylon 6/6 Polyamide (PA66)	0.55 in	13.97 mm	Header	Circular	Board to Cable/Wire	Male Pin	6	Solder	2	Tin	Locking Ramp	All	UL94 V-2	Through Hole	6.35 mm	0.25 in	Shrouded - 4 Wall	6.35 mm	0.25 in	0.169 in	4.3 mm	Natural	137.8 µin	3.5 µm
Molex 0010844062	Automotive General Purpose Industrial Telecommunications	Nylon 6/6 Polyamide (PA66)	0.55 in	13.97 mm	Header	Circular	Board to Cable/Wire	Female Socket	6	Solder	2	Tin	Locking Ramp	All	UL94 V-2	Through Hole	6.35 mm	0.25 in		6.35 mm	0.25 in	0.169 in	4.3 mm	Natural	137.8 µin	3.5 µm	3.5 Ám	137.8 Áin	Phosphor Bronze		600 V	-55 C	105 ░C
