77807WS Series
Manufacturer: Belden Inc.
Beta
⌘K

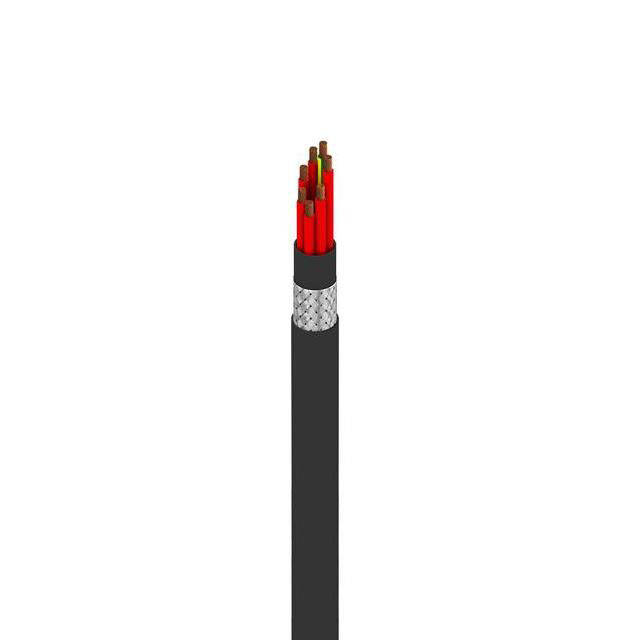

CABLE 7COND 18AWG BLK SHLD
| Part | Shield Coverage | Shield Material | Cable Type | Conductor Strand | Features | Conductor Material | Shield Type | Jacket Color | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length | Length | Jacket (Insulation) Material | Wire Gauge | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Insulation | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness [custom] | Number of Conductors | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 85 % | Copper Tinned | Multi-Conductor | 38 AWG 105 | Oil Resistant | Copper Bare | Braid | Black | 13.51 mm | 0.532 in | 304.8 m | 1000 ft | Poly-Vinyl Chloride (PVC) | 18 AWG | -5 °C | 90 °C | Poly-Vinyl Chloride (PVC) | 1.143 mm | 0.045 in | 7 | UL Style 2587 |
