79124 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

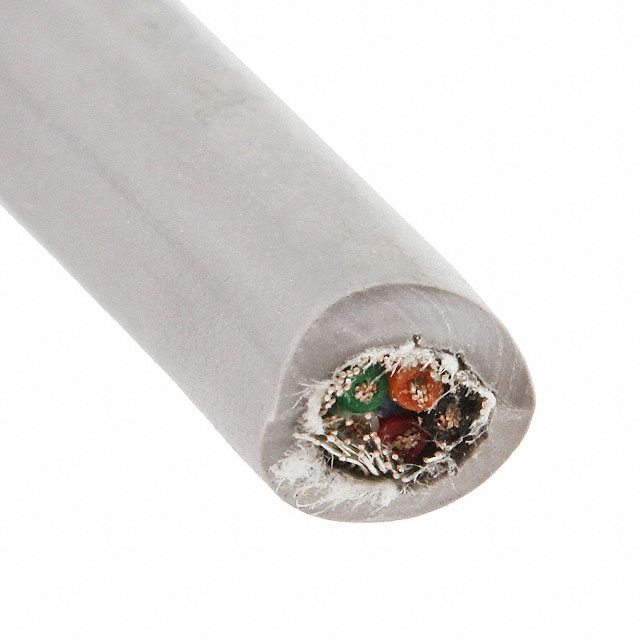

CABLE 5CON 14AWG SLATE SHLD
| Part | Shield Material | Shield Coverage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Type | Features | Shield Type | Voltage | Conductor Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Insulation | Wire Gauge | Jacket Color | Length [x] | Length [x] | Number of Conductors | Ratings | Jacket (Insulation) Material | Conductor Strand [custom] | Conductor Strand [custom] | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Copper Tinned | 85 % | 9.22 mm | 0.363 in | Multi-Conductor | Biological Compatibility | Braid | 600 V | Copper Tinned | 0.035 in | 0.889 mm | Polyphenylene Ether Modified (mPPE) | 14.5 AWG | Slate | 100 ft | 30.5 m | 5 | ISO 10993 | Polyphenylene Ether Modified (mPPE) | 41 | 30 | -40 C | 105 ░C |
ALPHA WIRE | Copper Tinned | 85 % | 9.22 mm | 0.363 in | Multi-Conductor | Biological Compatibility | Braid | 600 V | Copper Tinned | 0.035 in | 0.889 mm | Polyphenylene Ether Modified (mPPE) | 14.5 AWG | Slate | 5 | ISO 10993 | Polyphenylene Ether Modified (mPPE) | 41 | 30 | -40 C | 105 ░C |
