745-082 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 82POS 0.100

Part	Termination Rows [custom]	Material - Insulation	Contact Material	Number of Positions	Read Out	Termination	Gender	Mounting Type	Card Thickness [Max]	Card Thickness [Min]	Card Type	Number of Rows [custom]	Number of Positions/Bay/Row	Operating Temperature [Min]	Operating Temperature [Max]	Pitch	Pitch	Color	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Contact Type
EDAC Inc. 745-082-522-206	2	Polyester Thermoplastic	Copper Alloy	82	Dual	Press-Fit	Female	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	2	41	-40 C	105 ░C	0.1 "	2.54 mm	Black	30 Áin	0.76 Ám	Gold	Cantilever
EDAC Inc. 745-082-520-201	2	Polyester Thermoplastic	Copper Alloy	82	Dual	Press-Fit	Female	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	2	41	-40 C	105 ░C	0.1 "	2.54 mm	Black	30 Áin	0.76 Ám	Gold	Cantilever
EDAC Inc. 745-082-545-201	2	Polyester Thermoplastic	Copper Alloy	82	Dual	Press-Fit	Female	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	2	41	-40 C	105 ░C	0.1 "	2.54 mm	Black	30 Áin	0.76 Ám	Gold	Cantilever
EDAC Inc. 745-082-522-201	2	Polyester Thermoplastic	Copper Alloy	82	Dual	Press-Fit	Female	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	2	41	-40 C	105 ░C	0.1 "	2.54 mm	Black	30 Áin	0.76 Ám	Gold	Cantilever

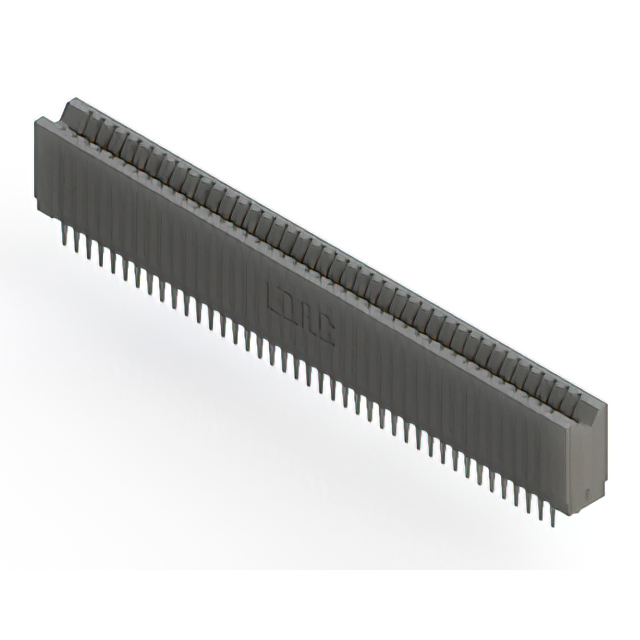

EDAC Inc. 745-082-525-206	2	Polyester Thermoplastic	Copper Alloy	82	Dual	Press-Fit	Female	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	2	41	-40 C	105 ░C	0.1 "	2.54 mm	Black	30 Áin	0.76 Ám	Gold	Cantilever
EDAC Inc. 745-082-540-206	2	Polyester Thermoplastic	Copper Alloy	82	Dual	Press-Fit Wire Wrap	Female	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	2	41	-40 C	105 ░C	0.1 "	2.54 mm	Black	30 Áin	0.76 Ám	Gold	Cantilever
EDAC Inc. 745-082-545-206	2	Polyester Thermoplastic	Copper Alloy	82	Dual	Press-Fit	Female	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	2	41	-40 C	105 ░C	0.1 "	2.54 mm	Black	30 Áin	0.76 Ám	Gold	Cantilever
