TPS2H160-Q1 Series

40-V, 160-mΩ, 2-ch automotive smart high-side switch with adjustable current limit

Catalog

40-V, 160-mΩ, 2-ch automotive smart high-side switch with adjustable current limit

Part	Number of Outputs	Grade	Current - Output (Max) [Max]	Switch Type	Output Configuration	Fault Protection	Ratio - Input:Output [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Package / Case	Mounting Type	Output Type	Rds On (Typ)	Interface	Qualification	Supplier Device Package	Voltage - Load [Max]	Voltage - Load [Min]	Features	Utilized IC / Part	Supplied Contents	Function	Type
Texas Instruments TPS2H160BQPWPRQ1	2	Automotive	2.5 A	General Purpose	High Side	Current Limiting (Adjustable) Over Temperature	1:1	-40 °C	125 °C	16-PowerTSSOP	0.173 in 4.4 mm Width	Surface Mount	N-Channel	155 mOhm	On/Off	AEC-Q100	16-HTSSOP	40 V	3.4 V
Texas Instruments TPS2H160AQPWPRQ1	2	Automotive	2.5 A	General Purpose	High Side	Current Limiting (Adjustable) Over Temperature	1:1	-40 °C	125 °C	16-PowerTSSOP	0.173 in 4.4 mm Width	Surface Mount	N-Channel	155 mOhm	On/Off	AEC-Q100	16-HTSSOP	40 V	3.4 V	Status Flag

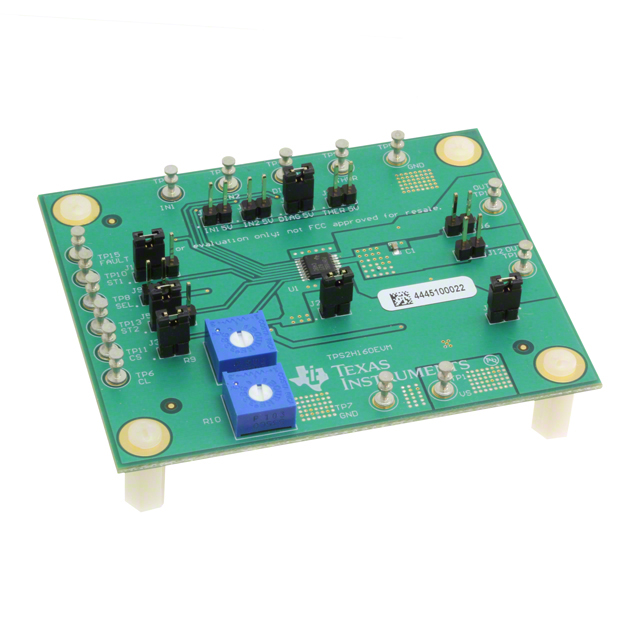

Texas Instruments TPS2H160EVM																					TPS2H160	Board(s)	Power Distribution Switch (Load Switch)	Power Management

Catalog

40-V, 160-mΩ, 2-ch automotive smart high-side switch with adjustable current limit

Key Features

• Qualified for Automotive ApplicationsAEC-Q100 Qualified With the Following Results:Device Temperature Grade 1: –40°C to 125°C Ambient Operating Temperature RangeDevice HBM ESD Classification Level H2Device CDM ESD Classification Level C4BFunctional safety capableDocumentation available to aid functional safety system designDual-Channel 160-mΩ Smart High-Side Switch With Full DiagnosticsVersion A: Open-Drain Status OutputVersion B: Current-Sense Analog OutputWide Operating Voltage 3.4 to 40 VUltralow Standby Current, < 500 nAHigh-Accuracy Current Sense:±17% Under >25-mA LoadAdjustable Current Limit With External Resistor ±15% Under >500-mA LoadProtection:Short-to-GND Protection by Current Limit (Internal or External)Thermal Shutdown With Latch-Off Option and Thermal SwingInductive Load Negative Voltage Clamp With Optimized Slew RateLoss of GND and Loss of Battery ProtectionDiagnostic:Overcurrent and Short to Ground DetectionOpen-Load and Short-to-Battery DetectionGlobal Fault for Fast Interrupt16-Pin Thermally-Enhanced PWP PackageQualified for Automotive ApplicationsAEC-Q100 Qualified With the Following Results:Device Temperature Grade 1: –40°C to 125°C Ambient Operating Temperature RangeDevice HBM ESD Classification Level H2Device CDM ESD Classification Level C4BFunctional safety capableDocumentation available to aid functional safety system designDual-Channel 160-mΩ Smart High-Side Switch With Full DiagnosticsVersion A: Open-Drain Status OutputVersion B: Current-Sense Analog OutputWide Operating Voltage 3.4 to 40 VUltralow Standby Current, < 500 nAHigh-Accuracy Current Sense:±17% Under >25-mA LoadAdjustable Current Limit With External Resistor ±15% Under >500-mA LoadProtection:Short-to-GND Protection by Current Limit (Internal or External)Thermal Shutdown With Latch-Off Option and Thermal SwingInductive Load Negative Voltage Clamp With Optimized Slew RateLoss of GND and Loss of Battery ProtectionDiagnostic:Overcurrent and Short to Ground DetectionOpen-Load and Short-to-Battery DetectionGlobal Fault for Fast Interrupt16-Pin Thermally-Enhanced PWP Package

Description

The TPS2H160-Q1 family is a fully-protected dual-channel smart high-side switch, with integrated 160-mΩ NMOS power FETs. Full diagnostics and high-accuracy current-sense features enable intelligent control of the load. An external adjustable current limit improves reliability of the whole system by limiting the inrush or overload current. The TPS2H160-Q1 family is a fully-protected dual-channel smart high-side switch, with integrated 160-mΩ NMOS power FETs. Full diagnostics and high-accuracy current-sense features enable intelligent control of the load. An external adjustable current limit improves reliability of the whole system by limiting the inrush or overload current.
