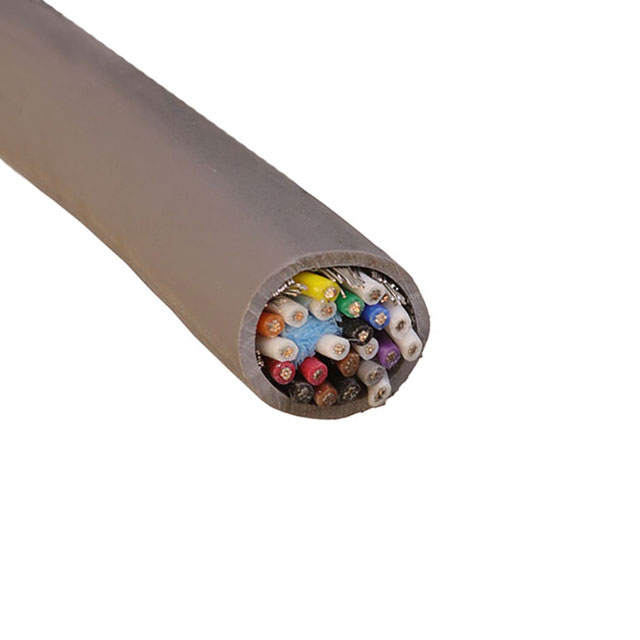

5279/11C Series
Manufacturer: ALPHA WIRE
Beta
⌘K
MULT-PR 22COND 24AWG 1000=1000'
| Part | Shield Coverage | Shield Material | Cable Type | Voltage | Conductor Insulation | Features | Usage | Wire Gauge | Jacket (Insulation) Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Material | Operating Temperature [Min] | Operating Temperature [Max] | Shield Type | Ratings | Conductor Strand [custom] | Conductor Strand [custom] | Jacket Color | Number of Conductors | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | Multi-Pair | 300 VDC | Poly-Vinyl Chloride (PVC) | Biological Compatibility Rip Cord | Communication Control | 24 AWG | Poly-Vinyl Chloride (PVC) | 0.813 mm | 0.032 in | 0.385 in | 9.78 mm | Copper Tinned | -35 °C | 105 ░C | Braid Foil | ISO 10993 | 7 | 32 AWG | Slate | 22 | ||
 ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | Multi-Pair | 300 VDC | Poly-Vinyl Chloride (PVC) | Biological Compatibility Rip Cord | Communication Control | 24 AWG | Poly-Vinyl Chloride (PVC) | 0.813 mm | 0.032 in | 0.385 in | 9.78 mm | Copper Tinned | -35 °C | 105 ░C | Braid Foil | ISO 10993 | 7 | 32 AWG | Slate | 22 | 152.4 m | 500 ft |
