T41134 Series

Circular Metric Connectors M12,FEMALE,RA,A CODE ,3P,PG9,GOLD

Manufacturer: TE Connectivity AMP Connectors

Catalog

Circular Metric Connectors M12,FEMALE,RA,A CODE ,3P,PG9,GOLD

Catalog

Circular Metric Connectors M12,FEMALE,RA,A CODE ,3P,PG9,GOLD

Part	Cable Opening [Max]	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Min]	Contact Material	Mounting Type	Applications	Number of Positions	Ingress Protection	Connector Type	Shell Finish	Backshell Material, Plating	Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Shell Material	Fastening Type	Termination	Shielding	Voltage Rating	Color	Contact Finish - Mating	Features	Shell Size - Insert	Primary Material	Insert Material [custom]	Insert Material [custom]	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
TE Connectivity AMP Connectors T4113412042-000	0.315 in	0.236 in	8 mm	6 mm	Brass	Free Hanging (In-Line) Right Angle	Industrial	4	IP67 - Dust Tight Waterproof	Receptacle Male Pins	Nickel	Brass Nickel	B	85 °C	-40 C	2.03 µm	80 µin	Brass	Threaded	Screw	Shielded	250 V	Silver	Silver	Backshell	M12-4	Metal	Nylon	Polyamide (PA)	4 A
TE Connectivity AMP Connectors T4113412052-000	0.315 in	0.236 in	8 mm	6 mm	Brass	Free Hanging (In-Line) Right Angle	Industrial	5	IP67 - Dust Tight Waterproof	Receptacle Male Pins	Nickel	Brass Nickel	B	85 °C	-40 C	2.03 µm	80 µin	Brass	Threaded	Screw	Shielded	60 VDC	Silver	Silver	Backshell	M12-5	Metal	Nylon	Polyamide (PA)	4 A
TE Connectivity AMP Connectors T4113401042-000	0.236 in	0.157 in	6 mm	4 mm	Brass	Free Hanging (In-Line) Right Angle	Industrial	4	IP67 - Dust Tight Waterproof	Receptacle Male Pins	Nickel	Polybutylene Terephthalate (PBT) Glass Filled	B	85 °C	-40 C	2.03 µm	80 µin	Brass	Threaded	Screw	Unshielded	250 V	Black Silver	Silver	Backshell	M12-4	Metal	Nylon	Polyamide (PA)	4 A
TE Connectivity AMP Connectors T4113411052-000	0.236 in	0.157 in	6 mm	4 mm	Brass	Free Hanging (In-Line) Right Angle	Industrial	5	IP67 - Dust Tight Waterproof	Receptacle Male Pins	Nickel	Brass Nickel	B	85 °C	-40 C	2.03 µm	80 µin	Brass	Threaded	Screw	Shielded	60 VDC	Silver	Silver	Backshell	M12-5	Metal	Nylon	Polyamide (PA)	4 A
TE Connectivity AMP Connectors T4113411041-000	0.236 in	0.157 in	6 mm	4 mm	Brass	Free Hanging (In-Line) Right Angle	Industrial	4	IP67 - Dust Tight Waterproof	Receptacle Male Pins	Nickel	Brass Nickel	B	85 °C	-40 C			Brass	Threaded	Screw	Shielded	250 V	Silver	Gold	Backshell	M12-4	Metal	Nylon	Polyamide (PA)	4 A	0.076 µm	3 µin
TE Connectivity AMP Connectors T4113401032-000	0.236 in	0.157 in	6 mm	4 mm	Brass	Free Hanging (In-Line) Right Angle	Industrial		IP67 - Dust Tight Waterproof	Receptacle Male Pins	Nickel	Polybutylene Terephthalate (PBT) Glass Filled	B	85 °C	-40 C	2.03 µm	80 µin	Brass	Threaded	Screw	Unshielded	250 V	Black Silver	Silver	Backshell	M12-3	Metal	Nylon	Polyamide (PA)	4 A
TE Connectivity AMP Connectors T4113411042-000	0.236 in	0.157 in	6 mm	4 mm	Brass	Free Hanging (In-Line) Right Angle	Industrial	4	IP67 - Dust Tight Waterproof	Receptacle Male Pins	Nickel	Brass Nickel	B	85 °C	-40 C	2.03 µm	80 µin	Brass	Threaded	Screw	Shielded	250 V	Silver	Silver	Backshell	M12-4	Metal	Nylon	Polyamide (PA)	4 A

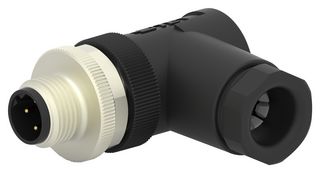

TE Connectivity AMP Connectors T4113402041-000	0.315 in	0.236 in	8 mm	6 mm	Brass	Free Hanging (In-Line) Right Angle	Industrial	4	IP67 - Dust Tight Waterproof	Receptacle Male Pins	Nickel	Polybutylene Terephthalate (PBT) Glass Filled	B	85 °C	-40 C			Brass	Threaded	Screw	Unshielded	250 V	Black Silver	Gold	Backshell	M12-4	Metal	Nylon	Polyamide (PA)	4 A	0.076 µm	3 µin
TE Connectivity AMP Connectors T4113402051-000	0.315 in	0.236 in	8 mm	6 mm	Zinc Alloy	Free Hanging (In-Line) Right Angle	Industrial	5	IP67 - Dust Tight Waterproof	Receptacle Male Pins	Nickel	Polybutylene Terephthalate (PBT) Glass Filled	B	85 °C	-40 C			Brass	Threaded	Screw	Unshielded	60 VDC	Black Silver	Gold	Backshell	M12-5	Metal	Nylon	Polyamide (PA)	4 A	0.076 µm	3 µin

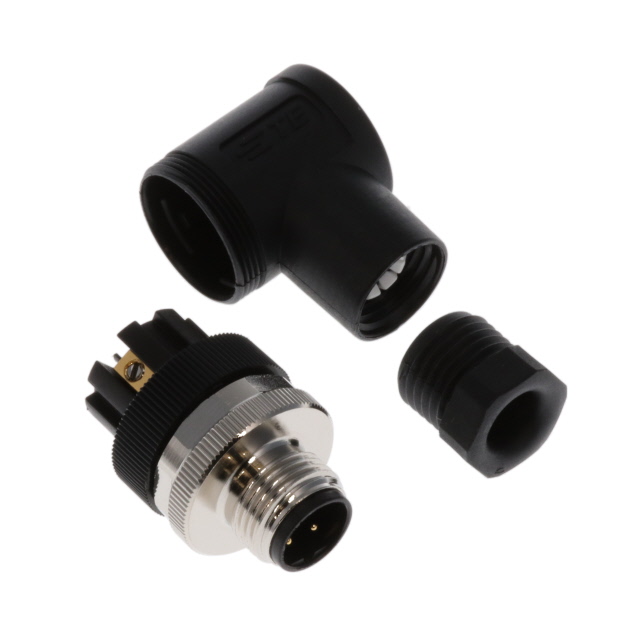

TE Connectivity AMP Connectors T4113401041-000	0.236 in	0.157 in	6 mm	4 mm	Brass	Free Hanging (In-Line) Right Angle	Industrial	4	IP67 - Dust Tight Waterproof	Receptacle Male Pins	Nickel	Polybutylene Terephthalate (PBT) Glass Filled	B	85 °C	-40 C			Brass	Threaded	Screw	Unshielded	250 V	Black Silver	Gold	Backshell	M12-4	Metal	Nylon	Polyamide (PA)	4 A	0.076 µm	3 µin
