332070 Series

Catalog

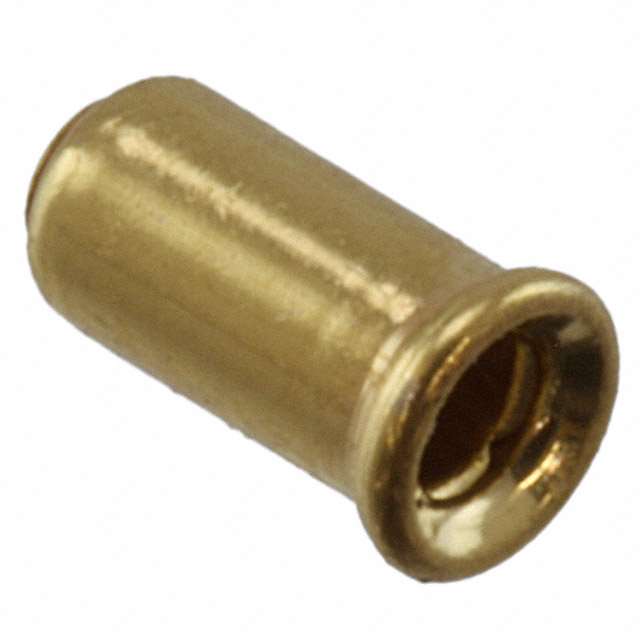

SOCKET,MIN-SPR W/H AU SER-4

Part	Tail Type	Socket Depth	Socket Depth	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Termination	Contact Material	Length - Overall [x]	Length - Overall [x]	Operating Temperature [Max]	Operating Temperature [Min]	Features	Contact Finish Thickness	Contact Finish Thickness	Contact Finish
TE Connectivity Raychem Cable Protection 1-332070-3	No Tail	3.3 mm	0.13 in	1.83 mm	0.072 in	0.86 mm	0.94 mm	0.034 "	0.037 "	Solder	Beryllium Copper	3.63 mm	0.143 in	125 °C	-65 ░C	Open Bottom	0.76 Ám	30 Áin	Gold
TE Connectivity Raychem Cable Protection 2-332070-3	No Tail	3.3 mm	0.13 in	1.83 mm	0.072 in	0.94 mm	1.02 mm	0.037 in	0.04 in	Solder	Beryllium Copper	3.63 mm	0.143 in	125 °C	-65 ░C	Closed Bottom	0.76 Ám	30 Áin	Gold
TE Connectivity Raychem Cable Protection 1-332070-4	No Tail	3.3 mm	0.13 in	1.83 mm	0.072 in	0.94 mm	1.02 mm	0.037 in	0.04 in	Solder	Beryllium Copper	3.63 mm	0.143 in	125 °C	-65 ░C	Open Bottom	0.76 Ám	30 Áin	Gold
TE Connectivity Raychem Cable Protection 1-332070-7	No Tail	3.3 mm	0.13 in	1.83 mm	0.072 in	0.94 mm	1.02 mm	0.037 in	0.04 in	Solder	Beryllium Copper	3.63 mm	0.143 in	125 °C	-65 ░C	Knockout Bottom	0.76 Ám	30 Áin	Gold
TE Connectivity Raychem Cable Protection 2-332070-1	No Tail	3.3 mm	0.13 in	1.83 mm	0.072 in	0.86 mm	0.94 mm	0.034 "	0.037 "	Solder	Beryllium Copper	3.63 mm	0.143 in	126 °C	-65 ░C	Closed Bottom			Gold
