725-009 Series
Manufacturer: EDAC Inc.
Beta
⌘K

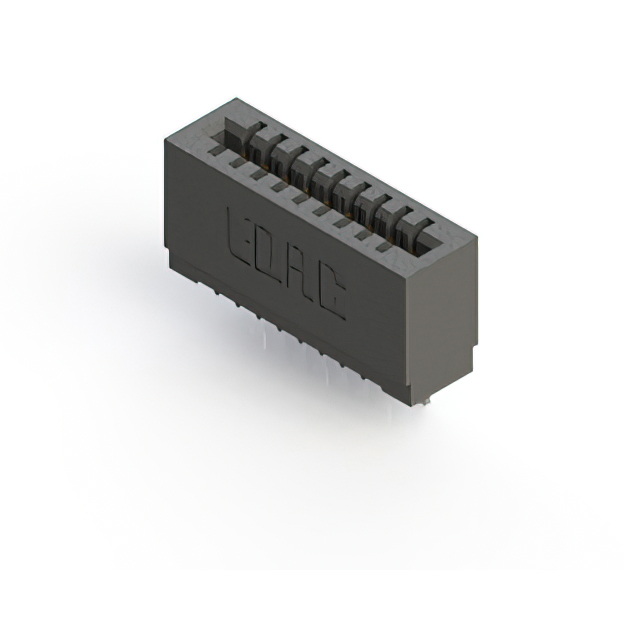

CONN EDGE SINGLE FML 9POS 0.100
| Part | Termination Rows | Material - Insulation | Contact Type | Pitch | Pitch | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions/Bay/Row | Card Thickness [Max] | Card Thickness [Min] | Mounting Type | Gender | Number of Rows | Color | Card Type | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Number of Positions | Termination | Contact Finish | Read Out |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Polyester Thermoplastic | Cantilever | 0.1 " | 2.54 mm | -40 C | 105 ░C | 9 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | Female | 1 | Black | Non Specified - Single Edge | 30 Áin | 0.76 Ám | Copper Alloy | 9 | Press-Fit Wire Wrap | Gold | Single |
