50KM36 Series

Catalog

ELECTRICALSWITCH ROTARY NOTOVER5AMP

Part	Actuator Type	Depth Behind Panel [custom]	Circuit per Deck	Voltage Rating - AC	Termination Style	Number of Poles per Deck	Index Stops	Current Rating (Amps)	Mounting Type	Angle of Throw	Number of Decks [custom]	Voltage Rating - DC	Contact Timing	Actuator Length [x]	Contact Finish	Number of Positions	Panel Cutout Dimensions [diameter]	Features
Grayhill Inc. 50KM36-01-2-03N	Flatted (3.17mm Dia)	18.77 mm	DP3T	115 V	Solder Lug	2	Fixed	150 mA 200 mA	Panel Mount	36 °	1	28 V	Non-Shorting (BBM)	9.53 mm	Gold

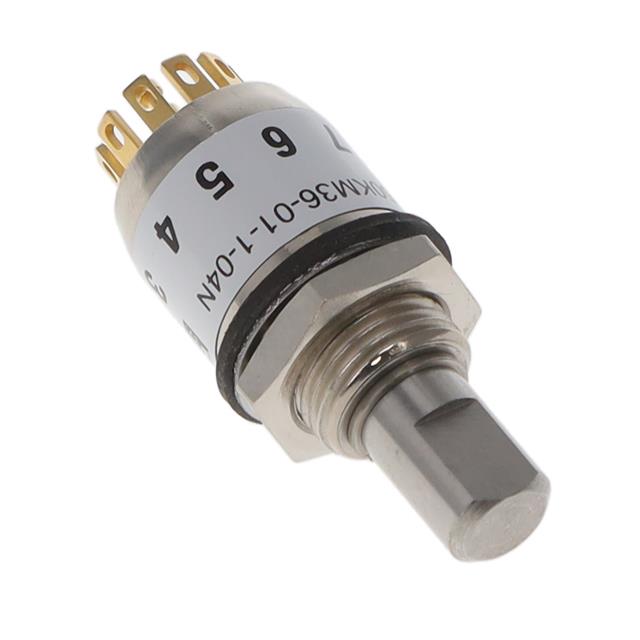

Grayhill Inc. 50KM36-01-1-04N	Flatted (3.17mm Dia)	18.77 mm	SP4T	115 V	Solder Lug	1	Fixed	150 mA 200 mA	Panel Mount	36 °	1	28 V	Non-Shorting (BBM)	9.53 mm	Gold	4
Grayhill Inc. 50KM36-01-2-02N	Flatted (3.17mm Dia)	18.77 mm	DPDT	115 V	Solder Lug	2	Fixed	150 mA 200 mA	Panel Mount	36 °	1	28 V	Non-Shorting (BBM)	9.53 mm	Gold	2
Grayhill Inc. 50KM36-01B10N	Flatted (3.17mm Dia)	18.77 mm	SP10T	115 V	Solder Lug	1	Fixed	150 mA 200 mA	Panel Mount	36 °	1	28 V	Non-Shorting (BBM)	9.53 mm	Gold	10
Grayhill Inc. 50KM36-01-1-06N	Flatted (3.17mm Dia)	18.77 mm	SP6T	115 V	Solder Lug	1	Fixed	150 mA 200 mA	Panel Mount	36 °	1	28 V	Non-Shorting (BBM)	9.53 mm	Gold	6

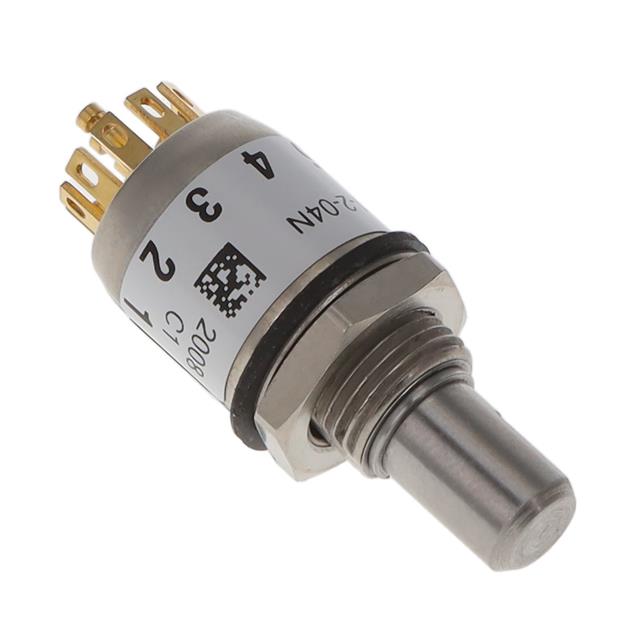

Grayhill Inc. 50KM36-01-2-04N	Flatted (3.17mm Dia)	18.77 mm	DP4T	115 V	Solder Lug	2	Fixed	150 mA 200 mA	Panel Mount	36 °	1	28 V	Non-Shorting (BBM)	9.53 mm	Gold	4
Grayhill Inc. 50KM36-01-1-08N	Flatted (3.17mm Dia)	18.77 mm	SP8T	115 V	Solder Lug	1	Fixed	150 mA 200 mA	Panel Mount	36 °	1	28 V	Non-Shorting (BBM)	9.53 mm	Gold	8
Grayhill Inc. 50KM36-01-2-05N	Flatted (3.17mm Dia)	18.77 mm	DP5T	125 V	Solder Lug	2	Fixed	150 mA 200 mA	Panel Mount	36 °	1	28 V	Non-Shorting (BBM)	9.53 mm	Gold	5	6.45 mm	Process Sealed Shaft and Panel Sealed
Grayhill Inc. 50KM36-01-1-03N	Flatted (3.17mm Dia)	18.77 mm	SP3T	125 V	Solder Lug	1	Fixed	150 mA 200 mA	Panel Mount	36 °	1	28 V	Non-Shorting (BBM)	9.53 mm	Gold		6.45 mm	Process Sealed Shaft and Panel Sealed
