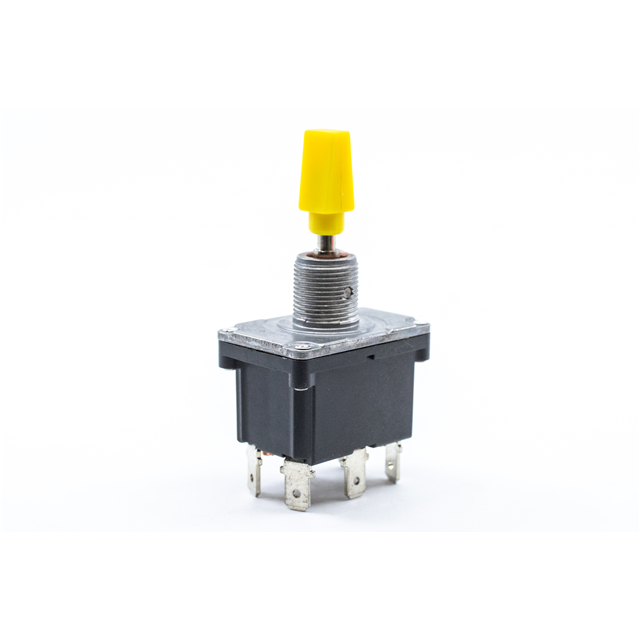

ST5DP Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH TOGGLE DPDT 20A 125V
| Part | Electrical Life | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Circuit | Actuator Length [x] | Bushing Thread | Actuator Type | Termination Style | Mounting Type | Voltage Rating - AC | Ingress Protection | Panel Cutout Dimensions [diameter] | Switch Function | Voltage Rating - DC | Illumination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 10000 Cycles | -10 °C | 125 °C | 20 A | DPDT | 22.2 mm | 15/32-32 | Flatted | Quick Connect | Panel Mount | 125 V | IP40 | 12 mm | Mom-Off-Mom | 30 V | Non-Illuminated |
