MB2185S Series

Catalog

SWITCH PUSHBUTTON 4PDT 6A 125V

Part	Mechanical Life	Electrical Life	Features	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Switch Function	Current Rating (Amps)	Actuator Type	Color - Actuator/Cap	Actuator Marking	Type	Panel Cutout Dimensions [diameter]	Termination Style	Voltage Rating - DC	Mounting Type	Voltage Rating - AC	Ingress Protection

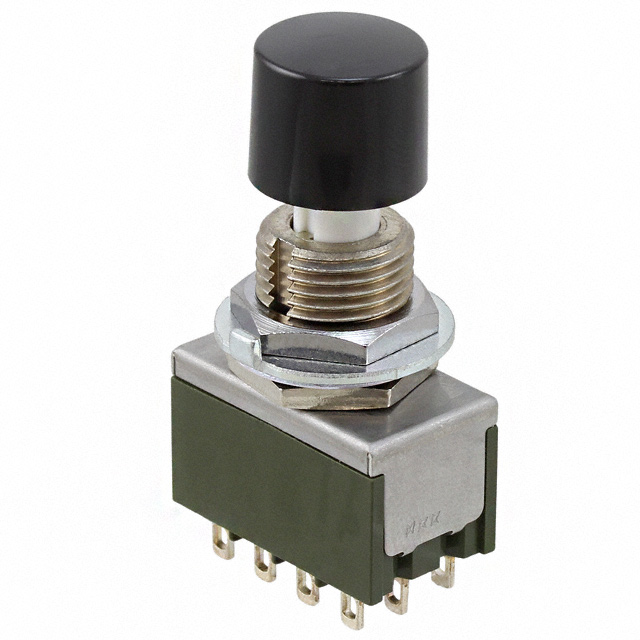

NKK Switches MB2185SB1W01-DA	100000 Cycles	25000 Steps	Epoxy Sealed Terminals	85 °C	-30 ░C	4PDT	On-On	3 A 6 A	Button Round	Black	No Marking	Standard	12.5 mm	Solder Lug	30 V	Panel Mount Rear	125 V
NKK Switches MB2185SB1W01-BA	100000 Cycles	25000 Steps	Epoxy Sealed Terminals	85 °C	-30 ░C	4PDT	On-On	3 A 6 A	Button Round	Black	No Marking	Standard	12.5 mm	Solder Lug	30 V	Panel Mount Rear	125 V

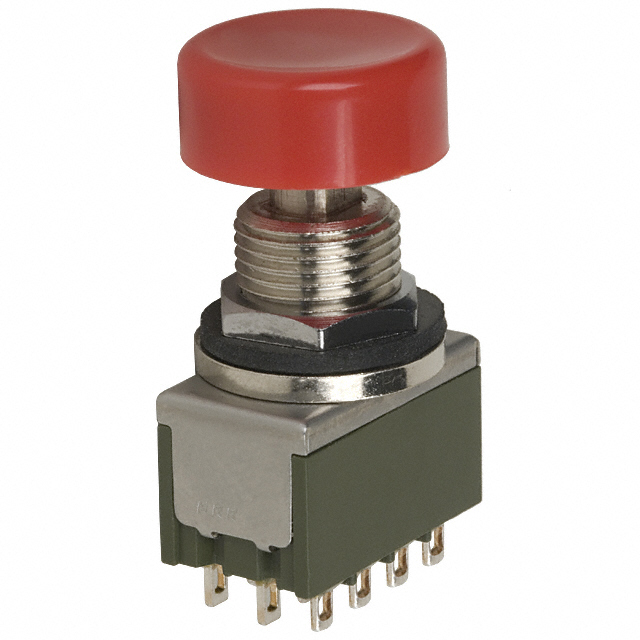

NKK Switches MB2185SB3W01-EC	50000 Cycles	25000 Steps	Epoxy Sealed Terminals	85 °C	-30 ░C	4PDT	On-On	3 A 6 A	Button Round	Red	No Marking	Standard	12.5 mm	Solder Lug	30 V	Panel Mount Rear	125 V	IP67 - Dust Tight Waterproof
NKK Switches MB2185SB3W01-CB	50000 Cycles	25000 Steps	Epoxy Sealed Terminals	85 °C	-30 ░C	4PDT	On-On	3 A 6 A	Button Round	White	No Marking	Standard	12.5 mm	Solder Lug	30 V	Panel Mount Rear	125 V	IP67 - Dust Tight Waterproof

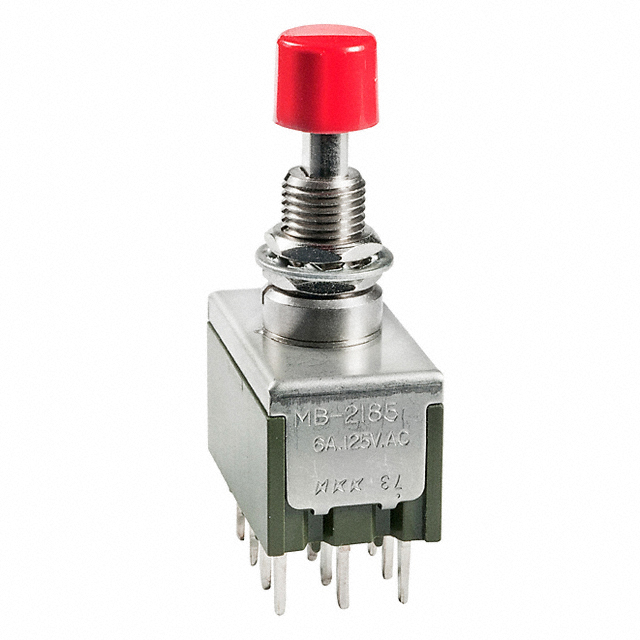

NKK Switches MB2185SS1W03-BC	100000 Cycles	25000 Steps	Epoxy Sealed Terminals	85 °C	-30 ░C	4PDT	On-On	3 A 6 A	Button Round	Red	No Marking	Standard	6.5 mm	PC Pin	30 V	Panel Mount Rear	125 V

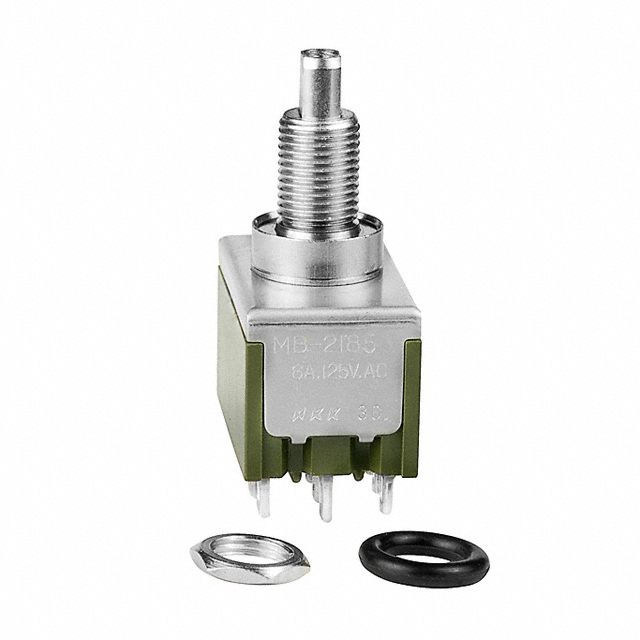

NKK Switches MB2185SD3W01	50000 Cycles	25000 Steps	Epoxy Sealed Terminals	85 °C	-30 ░C	4PDT	On-On	3 A 6 A	Plunger for Cap		No Marking	Standard	6.5 mm	Solder Lug	30 V	Panel Mount Rear	125 V	IP67 - Dust Tight Waterproof
NKK Switches MB2185SB1G01-DE	100000 Cycles	50000 Cycles	Epoxy Sealed Terminals	85 °C	-30 ░C	4PDT	On-On	0.4 VA	Button Round	Yellow	No Marking	Standard	12.5 mm	Solder Lug	28 V	Panel Mount Rear	28 V
NKK Switches MB2185SS1W03-CF	100000 Cycles	25000 Steps	Epoxy Sealed Terminals	85 °C	-30 ░C	4PDT	On-On	3 A 6 A	Button Round	Green	No Marking	Standard	6.5 mm	PC Pin	30 V	Panel Mount Rear	125 V

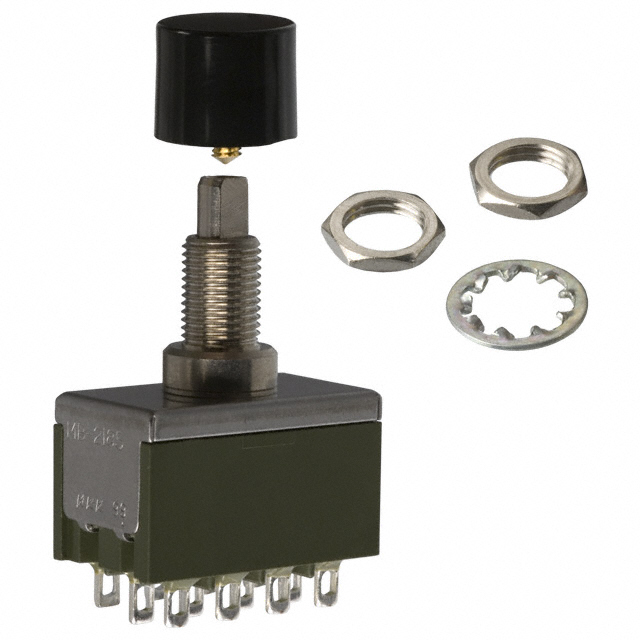

NKK Switches MB2185SS1W01-CA	100000 Cycles	25000 Steps	Epoxy Sealed Terminals	85 °C	-30 ░C	4PDT	On-On	3 A 6 A	Button Round	Black	No Marking	Standard	6.5 mm	Solder Lug	30 V	Panel Mount Rear	125 V

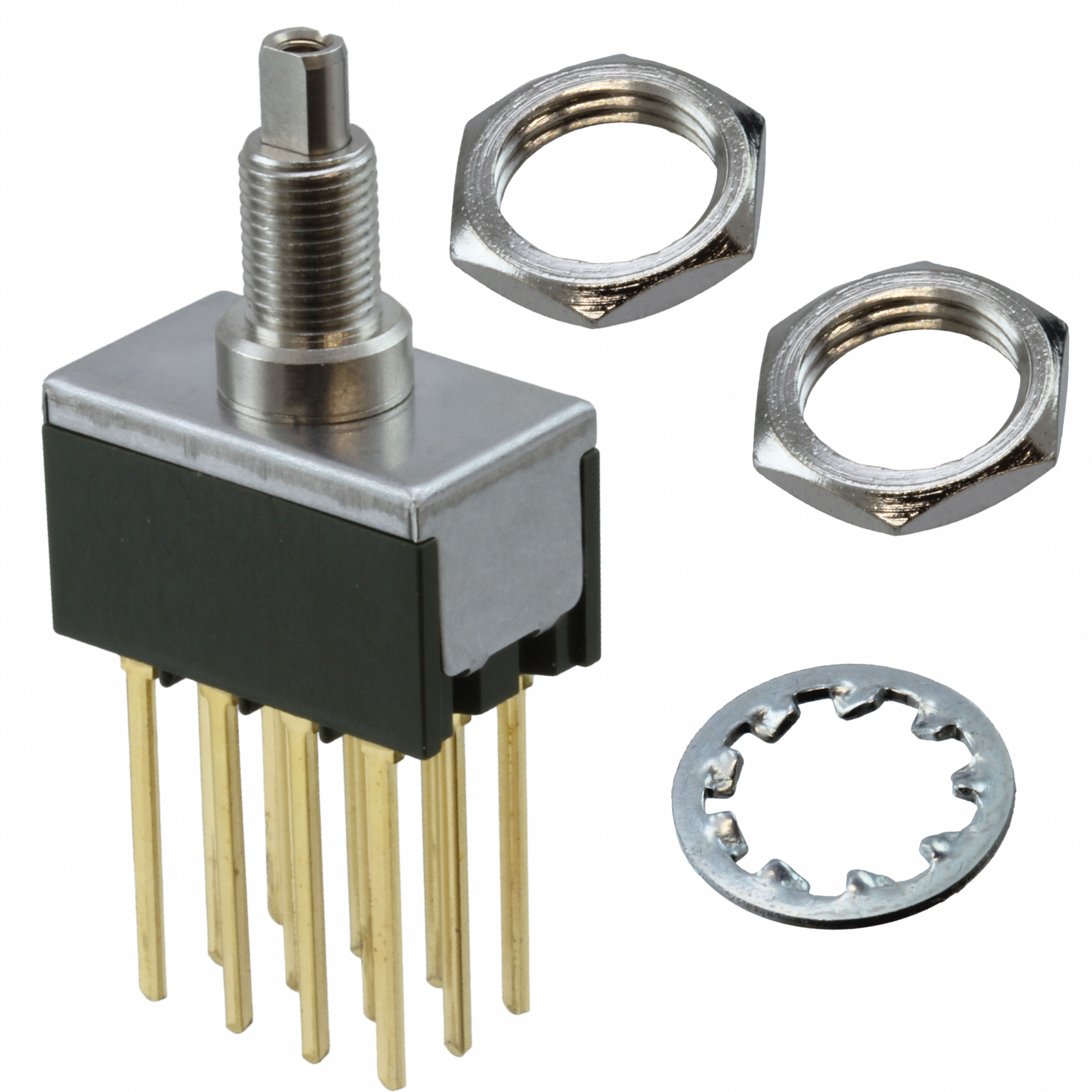

NKK Switches MB2185SS1G06	100000 Cycles	50000 Cycles	Epoxy Sealed Terminals	85 °C	-30 ░C	4PDT	On-On	0.4 VA	Plunger for Cap		No Marking	Standard	6.5 mm	Wire Wrap	28 V	Panel Mount Rear	28 V
