5480L Series

Catalog

MULTI-PAIR 20COND 24AWG 100'

Part	Shield Material	Shield Coverage	Shield Type	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Wire Gauge	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Voltage	Length [x]	Length [x]	Jacket (Insulation) Material	Number of Conductors	Conductor Insulation	Cable Type	Conductor Material	Features	Length	Length

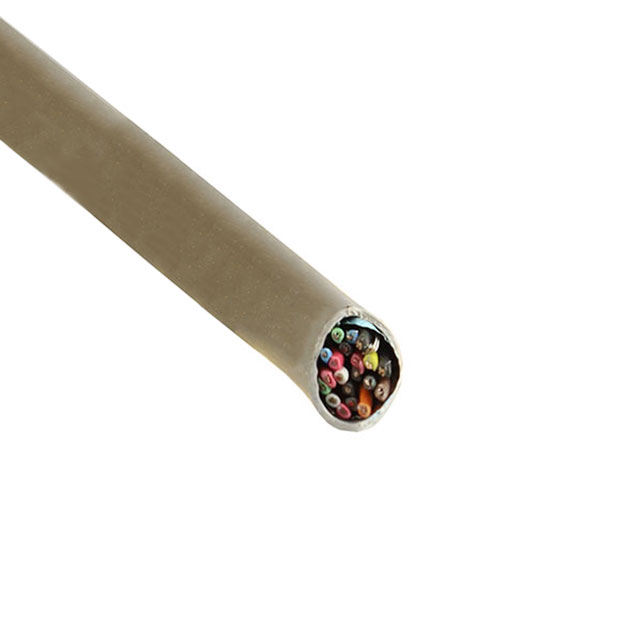

ALPHA WIRE 5480L SL005	Aluminum	100 %	Foil	Slate	0.378 in	9.6 mm	24 AWG	7	32 AWG	0.635 mm	0.025 in	300 VDC	100 ft	30.5 m	Low Smoke Zero Halogen (LSZH)	20	Low Smoke Zero Halogen (LSZH)	Multi-Pair	Copper Tinned	Drain Wire
ALPHA WIRE 5480L SL001	Aluminum	100 %	Foil	Slate	0.378 in	9.6 mm	24 AWG	7	32 AWG	0.635 mm	0.025 in	300 VDC			Low Smoke Zero Halogen (LSZH)	20	Low Smoke Zero Halogen (LSZH)	Multi-Pair	Copper Tinned	Drain Wire	304.8 m	1000 ft
ALPHA WIRE 5480L SL002	Aluminum	100 %	Foil	Slate	0.378 in	9.6 mm	24 AWG	7	32 AWG	0.635 mm	0.025 in	300 VDC			Low Smoke Zero Halogen (LSZH)	20	Low Smoke Zero Halogen (LSZH)	Multi-Pair	Copper Tinned	Drain Wire	152.4 m	500 ft
