CFS-0101 Series

Catalog

DIP SWITCH, SPST-NO, 0.1A, 6V, SMD

Part	Length	Length	Electrical Life	Body Material	Contact Material	Actuator Level	Number of Positions	Height Above Board [z]	Height Above Board [z]	Pitch	Pitch	Actuator Type	Contact Finish	Current Rating (Amps)	Termination Style	Voltage Rating	Mounting Type	Circuit	Operating Temperature [Max]	Operating Temperature [Min]
Nidec Components Corporation CFS-0101MB	0.156 in	3.96 mm	1000 Cycles	Polyphenylene Sulfide (PPS)	Copper Alloy	Flush Recessed	1	3.7 mm	0.146 in	2.54 mm	0.1 "	Slide (Standard)	Gold	100 mA	Gull Wing	6 V	Surface Mount	SPST	85 °C	-40 C
Nidec Components Corporation CFS-0101TA	0.156 in	3.96 mm	1000 Cycles	Polyphenylene Sulfide (PPS)	Copper Alloy	Flush Recessed	1	3.9 mm	0.154 in	2.54 mm	0.1 "	Slide (Standard)	Gold	100 mA	J Lead	6 V	Surface Mount	SPST	85 °C	-40 C
Nidec Components Corporation CFS-0101TB	0.156 in	3.96 mm	1000 Cycles	Polyphenylene Sulfide (PPS)	Copper Alloy	Flush Recessed	1	3.7 mm	0.146 in	2.54 mm	0.1 "	Slide (Standard)	Gold	100 mA	Gull Wing	6 V	Surface Mount	SPST	85 °C	-40 C

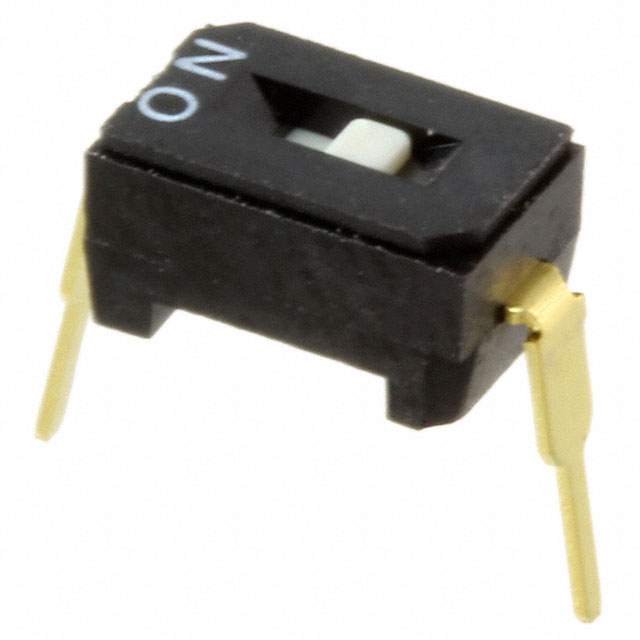

Nidec Components Corporation CFS-0101MC	0.156 in	3.96 mm	1000 Cycles	Polyphenylene Sulfide (PPS)	Copper Alloy	Flush Recessed	1	4.5 mm	0.177 in	2.54 mm	0.1 "	Slide (Standard)	Gold	100 mA	PC Pin	6 V	Through Hole	SPST	85 °C	-40 C

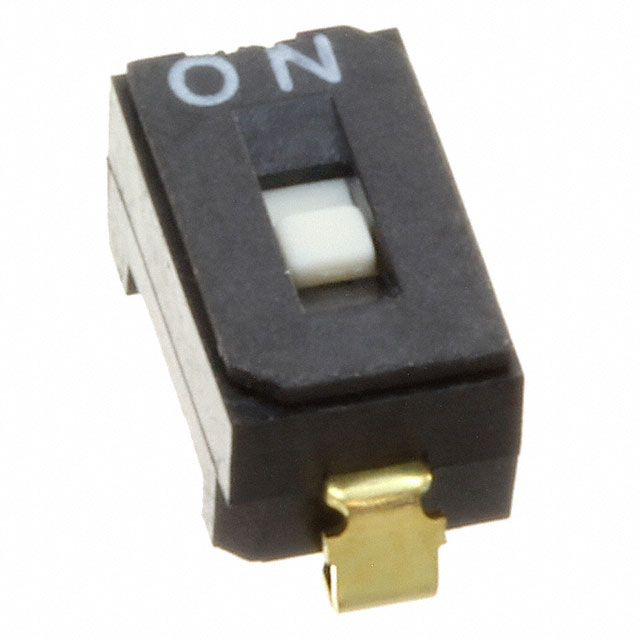

Nidec Components Corporation CFS-0101MA	0.156 in	3.96 mm	1000 Cycles	Polyphenylene Sulfide (PPS)	Copper Alloy	Flush Recessed	1	3.9 mm	0.154 in	2.54 mm	0.1 "	Slide (Standard)	Gold	100 mA	J Lead	6 V	Surface Mount	SPST	85 °C	-40 C
