208008 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

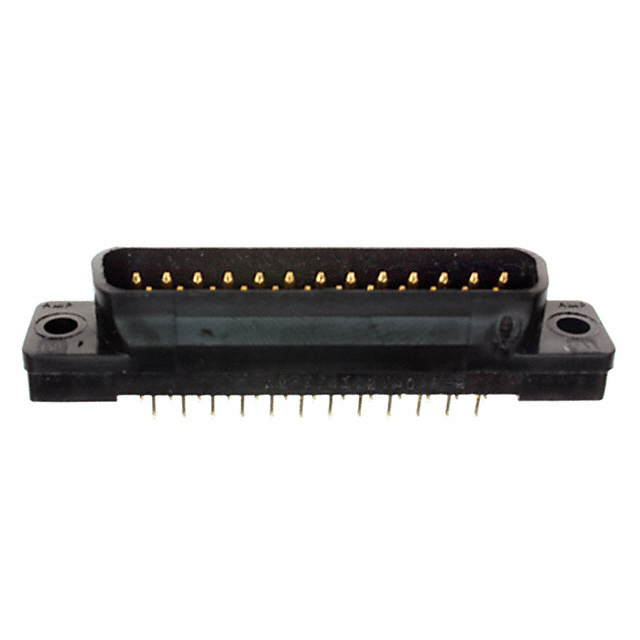

D SUB CONNECTOR, DB25, 25 CONTACTS, PLUG, SOLDER, DB, AMPLIMITE HD-20 SERIES, PLASTIC BODY
| Part | Dielectric Material | Connector Style | Flange Feature | Contact Finish Thickness | Contact Finish | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Number of Rows | Mounting Type | Voltage Rating | Termination | Color | Material Flammability Rating | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Connector Type | Current Rating (Amps) | Contact Type | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Polyester | D-Sub | Housing/Shell (Unthreaded) | Flash | Gold | Brass | 105 ░C | -55 °C | 2 | Through Hole | 125 VDC | Solder | Black | UL94 V-0 | B DB | 3 | Male Pins Plug | 6 A | Signal | ||
 TE Connectivity Raychem Cable Protection | Polyester | D-Sub | Housing/Shell (Unthreaded) | Gold | Brass | 105 ░C | -55 °C | 2 | Through Hole | 125 VDC | Solder | Black | UL94 V-0 | B DB | 3 | Male Pins Plug | 6 A | Signal | 0.76 Ám | 30 Áin |
