9019-0 Series

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Flange Diameter [diameter]	Flange Diameter [diameter]	Length - Overall [x]	Length - Overall [x]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Contact Finish	Termination	Contact Finish Thickness	Contact Finish Thickness	Tail Type	Socket Depth	Socket Depth
Mill-Max Manufacturing Corp. 9019-0-19-80-06-80-10-0	-55 C	125 °C	Beryllium Copper	0.125 in	3.18 mm	0.167 "	4.24 mm	0.075 "	1.91 mm	0.051 in	1.3 mm	Tin	Press-Fit	200 Áin	5.08 Ám	No Tail	2.92 mm	0.115 in
Mill-Max Manufacturing Corp. 9019-0-19-01-06-01-10-0	-55 C	125 °C	Beryllium Copper	0.125 in	3.18 mm	0.167 "	4.24 mm	0.075 "	1.91 mm	0.051 in	1.3 mm	Tin-Lead	Press-Fit	200 Áin	5.08 Ám	No Tail	2.92 mm	0.115 in
Mill-Max Manufacturing Corp. 9019-0-19-01-06-27-10-0	-55 C	125 °C	Beryllium Copper	0.125 in	3.18 mm	0.167 "	4.24 mm	0.075 "	1.91 mm	0.051 in	1.3 mm	Gold	Press-Fit	30 Áin	0.76 Ám	No Tail	2.92 mm	0.115 in

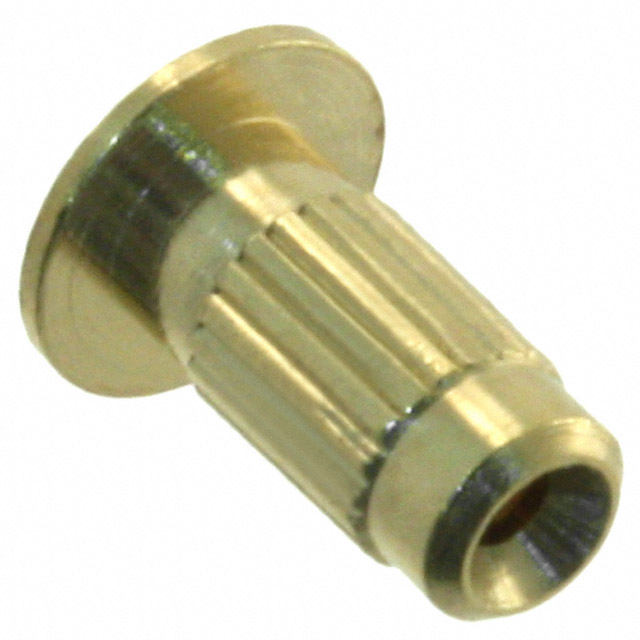

Mill-Max Manufacturing Corp. 9019-0-19-15-06-27-10-0	-55 C	125 °C	Beryllium Copper	0.125 in	3.18 mm	0.167 "	4.24 mm	0.075 "	1.91 mm	0.051 in	1.3 mm	Gold	Press-Fit	30 Áin	0.76 Ám	No Tail	2.92 mm	0.115 in

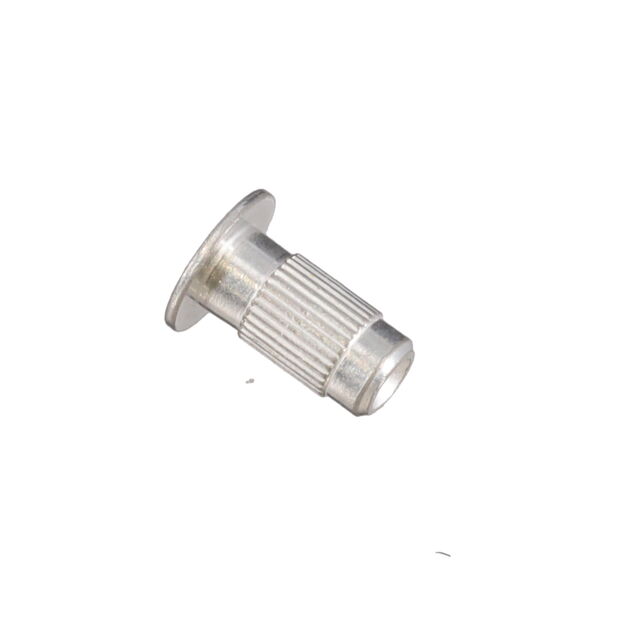

Mill-Max Manufacturing Corp. 9019-0-19-01-06-14-10-0	-55 C	125 °C	Beryllium Copper	0.125 in	3.18 mm	0.167 "	4.24 mm	0.075 "	1.91 mm	0.051 in	1.3 mm	Gold	Press-Fit	10 Áin	0.25 Ám	No Tail	2.92 mm	0.115 in
