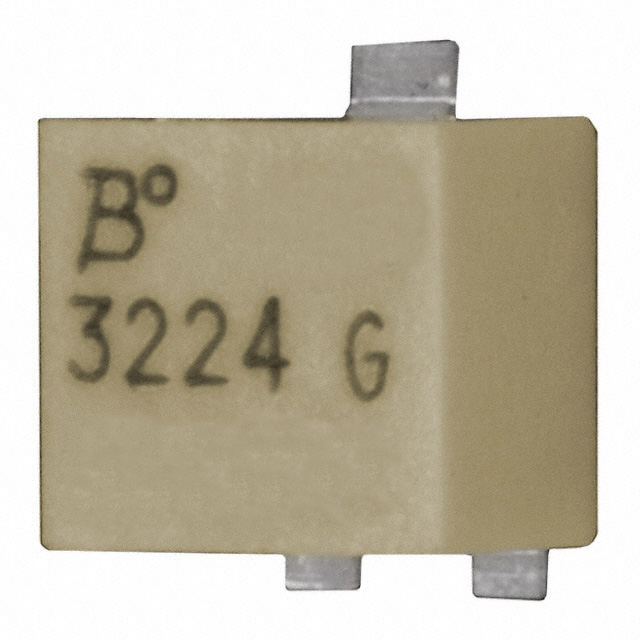

3224G Series

Catalog

RES,CERMET,5KOHMS,10+/-% TOL,-100,100PPM-TC,1819-CASE

Part	Resistance	Tolerance	Adjustment Type	Resistive Material	Number of Turns	Mounting Type	Power (Watts)	Power (Watts)	Termination Style	Size / Dimension [y]	Size / Dimension [x]	Temperature Coefficient
Bourns Inc. 3224G-2-502E	5 kOhms	10 %	Side Adjustment	Cermet	12	Surface Mount	0.25 W	0.25 W	Gull Wing	0.138 in 3.5 mm	0.181 in 4.6 mm	100 ppm/°C
Bourns Inc. 3224G-1-503E	50000 Ohms	10 %	Side Adjustment	Cermet	12	Surface Mount	0.25 W	0.25 W	Gull Wing	0.138 in 3.5 mm	0.181 in 4.6 mm	100 ppm/°C
Bourns Inc. 3224G-1-104E	100 kOhms	10 %	Side Adjustment	Cermet	12	Surface Mount	0.25 W	0.25 W	Gull Wing	0.138 in 3.5 mm	0.181 in 4.6 mm	100 ppm/°C
Bourns Inc. 3224G-1-504E		10 %	Side Adjustment	Cermet	12	Surface Mount	0.25 W	0.25 W	Gull Wing	0.138 in 3.5 mm	0.181 in 4.6 mm	100 ppm/°C
Bourns Inc. 3224G-2-104E	100 kOhms	10 %	Side Adjustment	Cermet	12	Surface Mount	0.25 W	0.25 W	Gull Wing	0.138 in 3.5 mm	0.181 in 4.6 mm	100 ppm/°C
Bourns Inc. 3224G-1-205E	2 MOhms	10 %	Side Adjustment	Cermet	12	Surface Mount	0.25 W	0.25 W	Gull Wing	0.138 in 3.5 mm	0.181 in 4.6 mm	100 ppm/°C
Bourns Inc. 3224G-2-202E	2 kOhms	10 %	Side Adjustment	Cermet	12	Surface Mount	0.25 W	0.25 W	Gull Wing	0.138 in 3.5 mm	0.181 in 4.6 mm	100 ppm/°C
Bourns Inc. 3224G-1-100E	10 Ohms	10 %	Side Adjustment	Cermet	12	Surface Mount	0.25 W	0.25 W	Gull Wing	0.138 in 3.5 mm	0.181 in 4.6 mm	100 ppm/°C
Bourns Inc. 3224G-1-202E	2 kOhms	10 %	Side Adjustment	Cermet	12	Surface Mount	0.25 W	0.25 W	Gull Wing	0.138 in 3.5 mm	0.181 in 4.6 mm	100 ppm/°C
Bourns Inc. 3224G-1-200E	20 Ohms	10 %	Side Adjustment	Cermet	12	Surface Mount	0.25 W	0.25 W	Gull Wing	0.138 in 3.5 mm	0.181 in 4.6 mm	100 ppm/°C
