24_SMB-50 Series
Manufacturer: Huber+Suhner, Inc.
Beta
⌘K

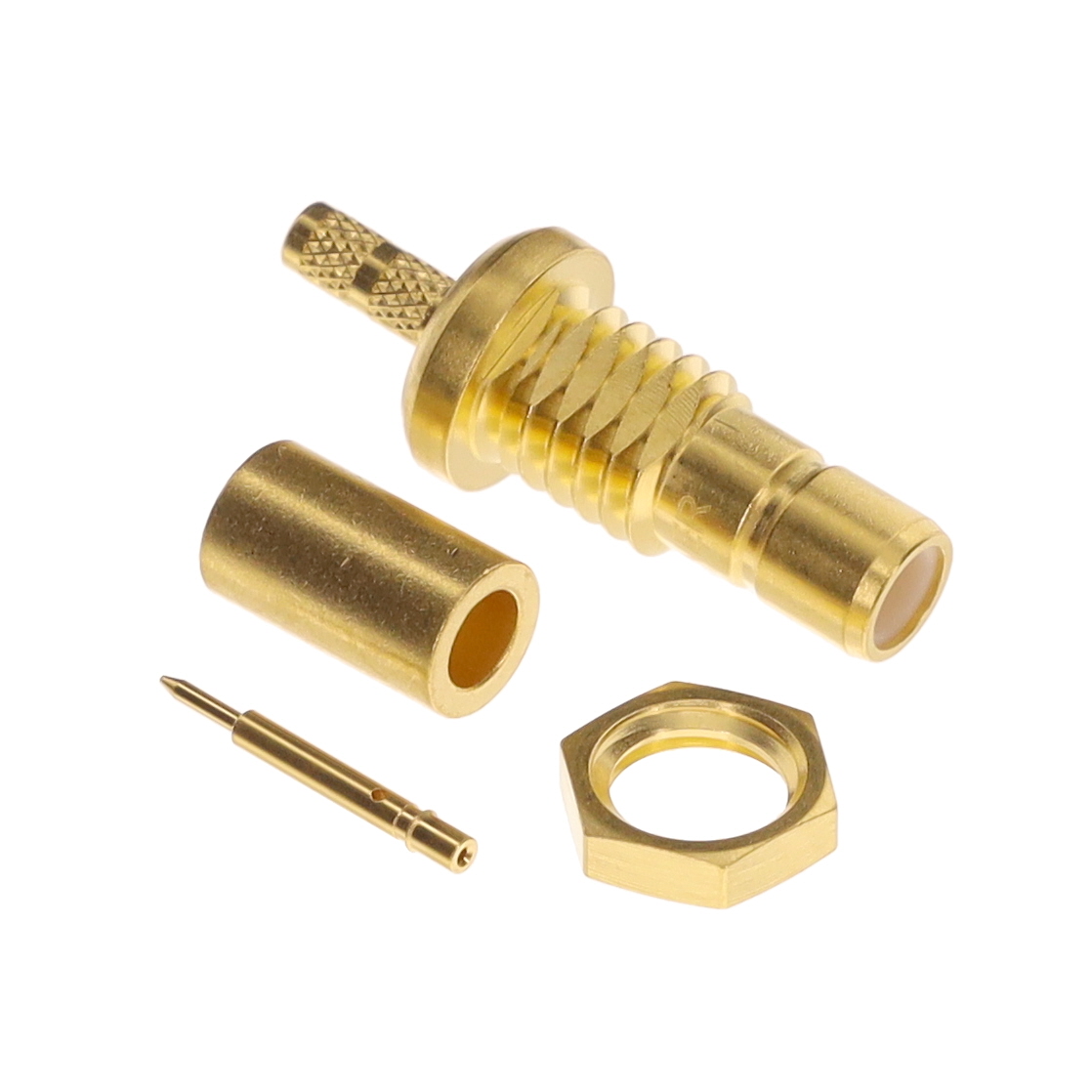

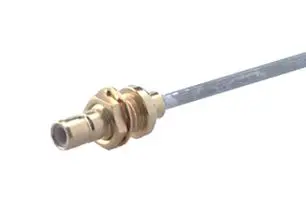

RF COAX CONN, SMB, BULKHEAD JACK, 50 OHM ROHS COMPLIANT: YES
| Part | Mating Cycles | Body Finish | Center Contact Plating | Body Material | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Connector Style | Frequency - Max [Max] | Cable Group | Mounting Type | Impedance | Number of Ports | Mounting Feature | Fastening Type | Contact Termination | Shield Termination | Housing Color | Center Contact Material | Connector Type | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Huber+Suhner, Inc. | 500 | Gold | Gold | Brass | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | SMB | 4 GHz | RG-405 (.086 Semi Rigid) | Panel Mount | 50 Ohms | 1 | Bulkhead - Front Side Nut | Snap-On | Solder | Solder | Gold | Brass | Female Socket Jack | |
 Huber+Suhner, Inc. | 500 | Gold | Gold | Brass | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | SMB | 4 GHz | RG-405 (.086 Semi Rigid) | Panel Mount | 50 Ohms | 1 | Bulkhead - Front Side Nut | Snap-On | Solder | Solder | Gold | Brass | Female Socket Jack | |
 Huber+Suhner, Inc. | 500 | Gold | Gold | Brass | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | SMB | 4 GHz | 188 316 RG-174 | Panel Mount | 50 Ohms | 1 | Bulkhead - Front Side Nut | Snap-On | Crimp | Crimp | Gold | Brass | Female Socket Jack | |
 Huber+Suhner, Inc. | 500 | Gold | Gold | Brass | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | SMB | 4 GHz | RG-178 | Panel Mount | 50 Ohms | 1 | Bulkhead - Front Side Nut | Snap-On | Crimp | Crimp | Gold | Brass | Female Socket Jack | 196 |
