2271110 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

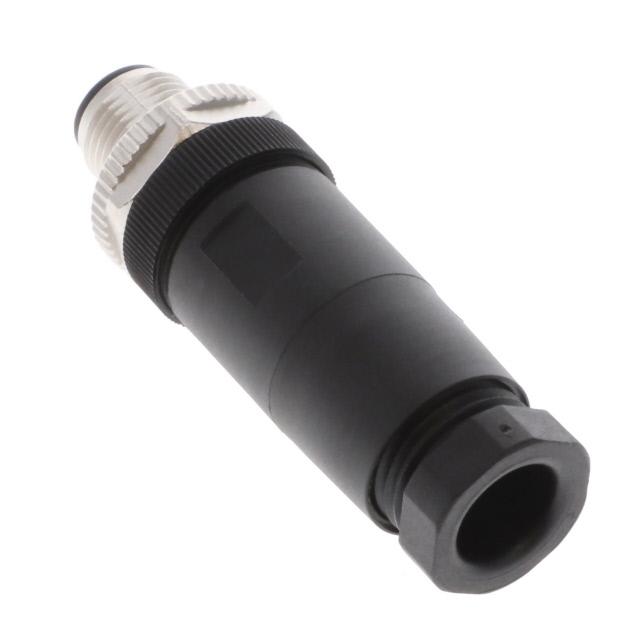

M12.MALE.A CODE.8P.PG9.(AU)
| Part | Mounting Type | Backshell Material, Plating | Shell Size - Insert | Contact Finish - Mating | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Color | Insert Material | Primary Material | Current Rating (Amps) | Applications | Orientation | Features | Number of Positions | Shielding | Contact Material | Voltage Rating | Connector Type | Termination | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Operating Temperature [Max] | Operating Temperature [Min] | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | ||||||||||||||||||||||||||
 TE Connectivity Raychem Cable Protection | Free Hanging (In-Line) | Nylon Polyamide (PA) | M12-12 | Gold | 8 mm | 6 mm | 0.315 in | 0.236 in | Black Silver | Nylon Polyamide (PA) | Plastic | 2 A | Industrial Automation | A | Backshell | 12 | Unshielded | Brass | 30 VAC | Male Pins Receptacle | Screw | 0.5 µm | 19.7 µin | 85 °C | -40 °C | IP67 - Dust Tight Waterproof |
TE Connectivity Raychem Cable Protection |
