CWR-180 Series

Catalog

CONN D-SUB RCPT 25POS IDC

Part	Color	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge [Max]	Wire Gauge [Min]	Contact Material	Contact Type	Mounting Type	Flange Feature	Number of Positions	Features	Number of Rows [custom]	Shell Size, Connector Layout	Shell Size, Connector Layout [x]	Contact Finish Thickness	Contact Finish Thickness	Material Flammability Rating	Contact Finish	Termination	Connector Style	Connector Type	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout

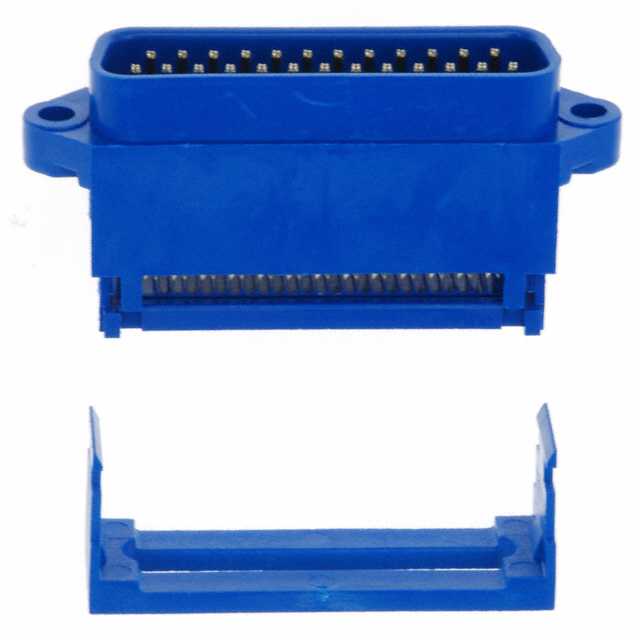

CW Industries CWR-180-25-0203	Blue	Thermoplastic	-55 C	125 °C	30 AWG	27.5 AWG	Phosphor Bronze	Signal	Free Hanging (In-Line)	Housing/Shell (Unthreaded)	25	Feed Through Strain Relief	2	B DB	3	2.54 µm	100 µin	UL94 V-0	Tin	IDC Ribbon Cable	D-Sub	Receptacle Male Pins
CW Industries CWR-180-09-0021	Blue	Thermoplastic	-55 C	125 °C	30 AWG	27.5 AWG	Phosphor Bronze	Signal	Free Hanging (In-Line)	Housing/Shell (Unthreaded)	9	Feed Through Strain Relief	2			0.76 Ám	30 Áin	UL94 V-0	Gold	IDC Ribbon Cable	D-Sub	Receptacle Male Pins	1	DE E

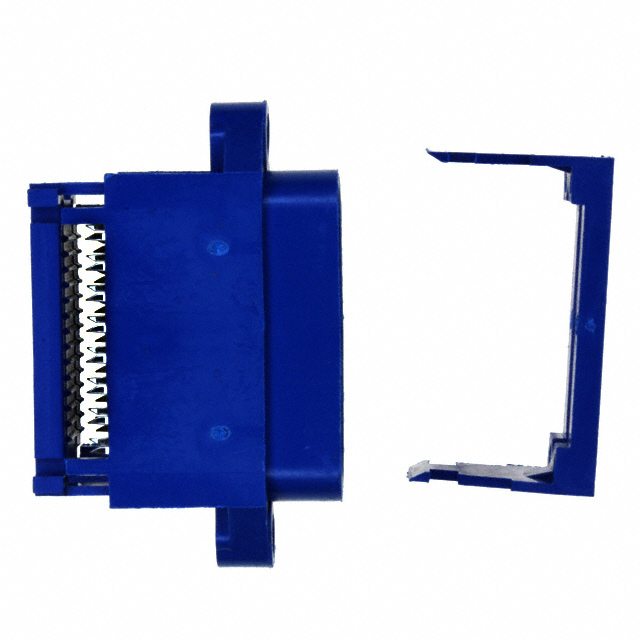

CW Industries CWR-180-15-0203	Blue	Thermoplastic	-55 C	125 °C	30 AWG	27.5 AWG	Phosphor Bronze	Signal	Free Hanging (In-Line)	Housing/Shell (Unthreaded)	15	Feed Through Strain Relief	2			2.54 µm	100 µin	UL94 V-0	Tin	IDC Ribbon Cable	D-Sub	Receptacle Male Pins			2

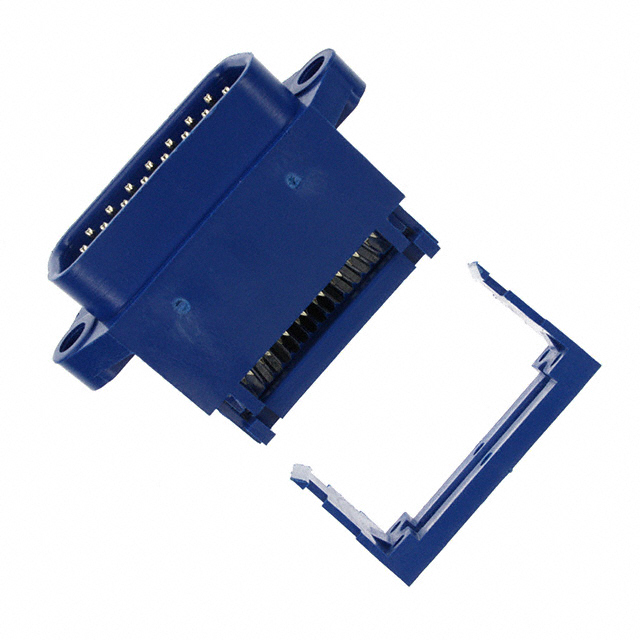

CW Industries CWR-180-15-0003	Blue	Thermoplastic	-55 C	125 °C	30 AWG	27.5 AWG	Phosphor Bronze	Signal	Free Hanging (In-Line)	Housing/Shell (Unthreaded)	15	Feed Through Strain Relief	2			2.54 µm	100 µin	UL94 V-0	Tin	IDC Ribbon Cable	D-Sub	Receptacle Male Pins			2
CW Industries CWR-180-25-0021	Blue	Thermoplastic	-55 C	125 °C	30 AWG	27.5 AWG	Phosphor Bronze	Signal	Free Hanging (In-Line)	Housing/Shell (Unthreaded)	25	Feed Through Strain Relief	2	B DB	3	0.76 Ám	30 Áin	UL94 V-0	Gold	IDC Ribbon Cable	D-Sub	Receptacle Male Pins

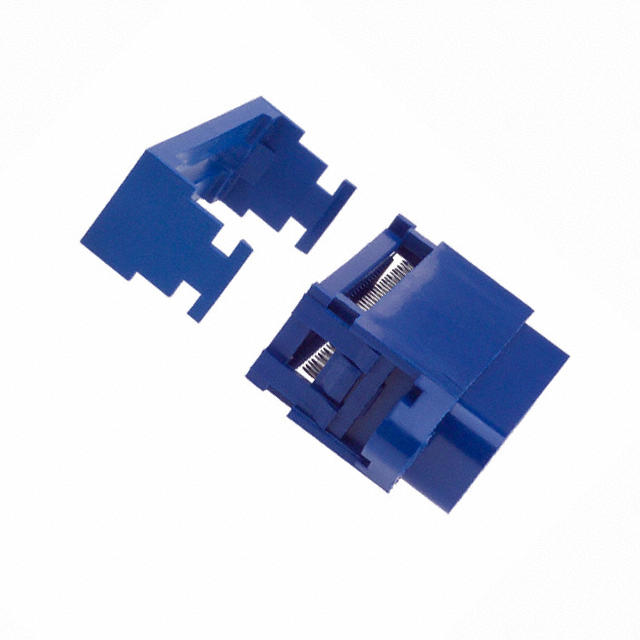

CW Industries CWR-180-25-0000	Blue	Thermoplastic	-55 C	125 °C	30 AWG	27.5 AWG	Phosphor Bronze	Signal	Free Hanging (In-Line)	Housing/Shell (Unthreaded)	25	Feed Through Strain Relief	2	B DB	3	0.25 Ám	10 Áin	UL94 V-0	Gold	IDC Ribbon Cable	D-Sub	Receptacle Male Pins

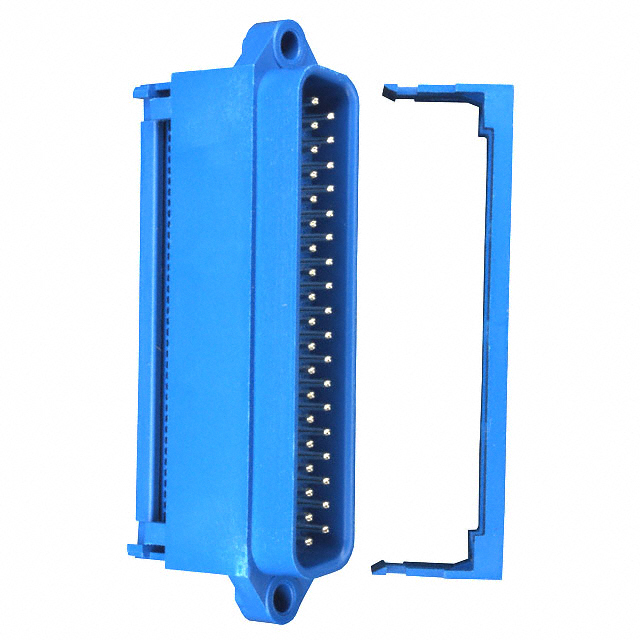

CW Industries CWR-180-37-0003	Blue	Thermoplastic	-55 C	125 °C	30 AWG	27.5 AWG	Phosphor Bronze	Signal	Free Hanging (In-Line)	Housing/Shell (Unthreaded)	37	Feed Through Strain Relief	2	DC C		2.54 µm	100 µin	UL94 V-0	Tin	IDC Ribbon Cable	D-Sub	Receptacle Male Pins			4
CW Industries CWR-180-15-0021	Blue	Thermoplastic	-55 C	125 °C	30 AWG	27.5 AWG	Phosphor Bronze	Signal	Free Hanging (In-Line)	Housing/Shell (Unthreaded)	15	Feed Through Strain Relief	2			0.76 Ám	30 Áin	UL94 V-0	Gold	IDC Ribbon Cable	D-Sub	Receptacle Male Pins			2

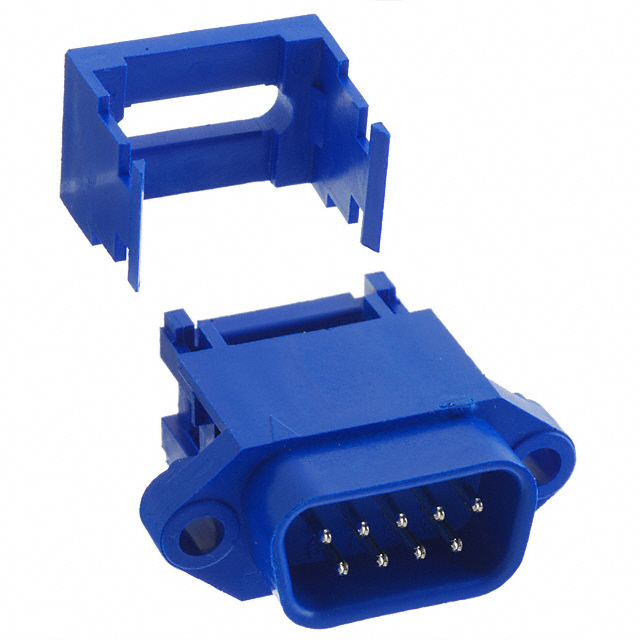

CW Industries CWR-180-09-0003	Blue	Thermoplastic	-55 C	125 °C	30 AWG	27.5 AWG	Phosphor Bronze	Signal	Free Hanging (In-Line)	Housing/Shell (Unthreaded)	9	Feed Through Strain Relief	2			2.54 µm	100 µin	UL94 V-0	Tin	IDC Ribbon Cable	D-Sub	Receptacle Male Pins	1	DE E
CW Industries CWR-180-09-0203	Blue	Thermoplastic	-55 C	125 °C	30 AWG	27.5 AWG	Phosphor Bronze	Signal	Free Hanging (In-Line)	Housing/Shell (Unthreaded)	9	Feed Through Strain Relief	2			2.54 µm	100 µin	UL94 V-0	Tin	IDC Ribbon Cable	D-Sub	Receptacle Male Pins	1	DE E
