MA4010 Series
Manufacturer: Mechatronics Fan Group
Beta
⌘K

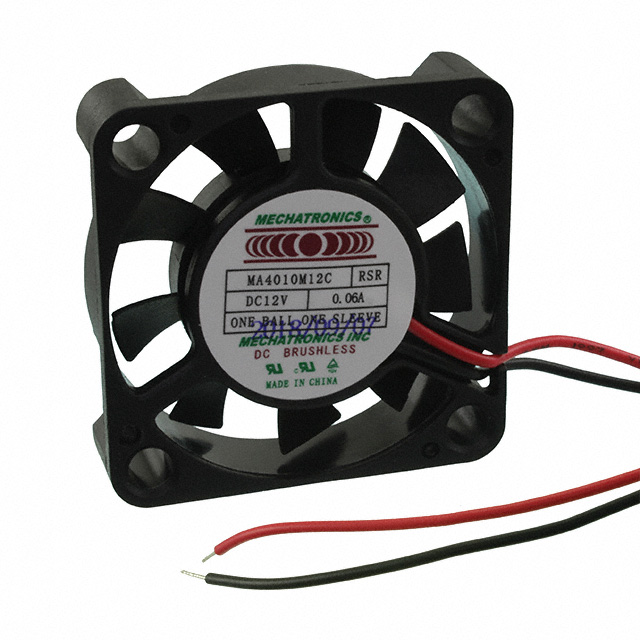

FAN AXIAL 40X10MM 12VDC WIRE
| Part | Voltage Range [Max] | Voltage Range [Min] | Material - Blade | Current Rating (Amps) | Air Flow | Air Flow | Weight | Weight | RPM | Fan Type | Bearing Type | Width [y] | Voltage - Rated | Approval Agency | Noise | Static Pressure | Static Pressure | Termination | Size / Dimension [x] | Size / Dimension [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mechatronics Fan Group | 13.8 VDC | 7 V | Polybutylene Terephthalate (PBT) | 60 mA | 0.118 m³/min | 4.2 CFM | 20.87 g | 0.046 lb | 5000 RPM | Tubeaxial | 1 Ball 1 Sleeve | 10 mm | 12 VDC | cUL UL | 24 dB | 19.9 Pa | 0.08 in H2O | 2 Wire Leads | 40 mm | 40 mm |
