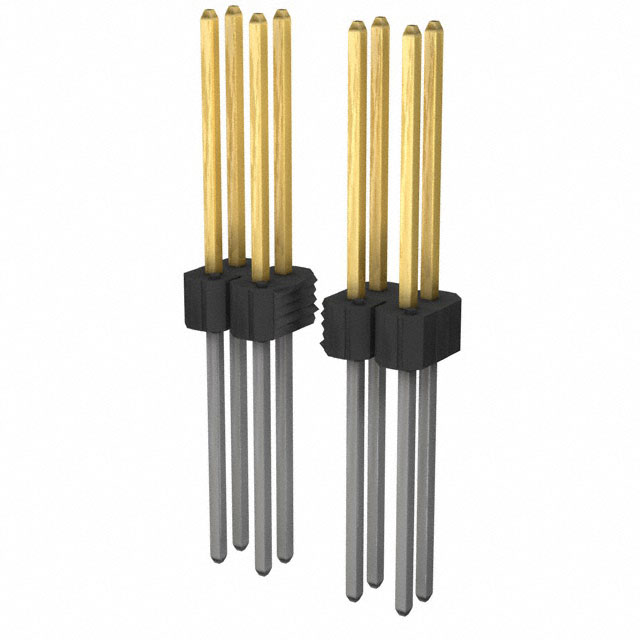

79271 Series

Catalog

CONN HEADER VERT 72POS 2.54MM

Part	Mounting Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Type	Contact Finish - Mating	Shrouding	Material Flammability Rating	Number of Positions	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Connector Type	Insulation Color	Pitch - Mating	Pitch - Mating	Number of Rows	Termination	Overall Contact Length	Overall Contact Length	Number of Positions Loaded	Insulation Height	Insulation Height	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Shape	Contact Length - Post	Contact Length - Post
Amphenol ICC (FCI) 79271-172HLF	Through Hole	2.54 mm	0.1 in	Male Pin	Gold or Gold GXT™	Unshrouded	UL94 V-0	72	Push-Pull	30 Áin	0.76 Ám	Phosphor Bronze	Header	Black	0.1 in	2.54 mm	2	Solder	1.1 in	27.94 mm	All	0.1 in	2.54 mm	0.5 in	12.7 mm	Square	12.7 mm	0.5 in
Amphenol ICC (FCI) 79271-372	Through Hole	2.54 mm	0.1 in	Male Pin	Gold or Gold GXT™	Unshrouded	UL94 V-0	72	Push-Pull	50 µin	1.27 µm	Phosphor Bronze	Header	Black	0.1 in	2.54 mm	2	Solder	1.1 in	27.94 mm	All	0.1 in	2.54 mm	0.5 in	12.7 mm	Square	12.7 mm	0.5 in
Amphenol ICC (FCI) 79271-172H	Through Hole	2.54 mm	0.1 in	Male Pin	Gold or Gold GXT™	Unshrouded	UL94 V-0	72	Push-Pull	30 Áin	0.76 Ám	Phosphor Bronze	Header	Black	0.1 in	2.54 mm	2	Solder	1.1 in	27.94 mm	All	0.1 in	2.54 mm	0.5 in	12.7 mm	Square	12.7 mm	0.5 in
