CDFV7W2 Series

Catalog

COMBINATION LAYOUT D SUB CONNECTOR, IP67, NANOOK SERIES, DA-7W2, PLUG, 7 CONTACTS

Part	Operating Temperature [Max]	Operating Temperature [Min]	Color	Dielectric Material	Contact Material	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Number of Positions	Number of Positions [custom]	Number of Positions [custom]	Mounting Type	Connector Type	Termination	Contact Type	Flange Feature	Number of Rows [custom]	Connector Style	Contact Finish Thickness	Contact Finish Thickness	Material Flammability Rating	Ingress Protection	Features	Current Rating (Amps)	Contact Finish	Shell Material, Finish	Contact Finish Thickness	Current Rating (Amps)

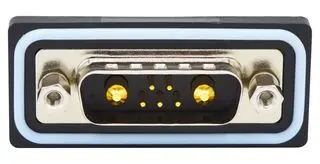

NorComp Inc. CDFV7W2113L452	85 °C	-25 °C	Black	Polybutylene Terephthalate (PBT)	Brass	A DA	2	7W2	7	5	2	Panel Mount Through Hole	Plug Male Pins	Solder	Signal and Power	4-40 Mating Side Female Screwlock	2	Combo D-Sub	30 Áin	0.76 Ám	UL94 V-0	IP67 - Dust Tight Waterproof	Board Lock Grounding Indents	5 A 40 A	Gold	Nickel Plated Steel

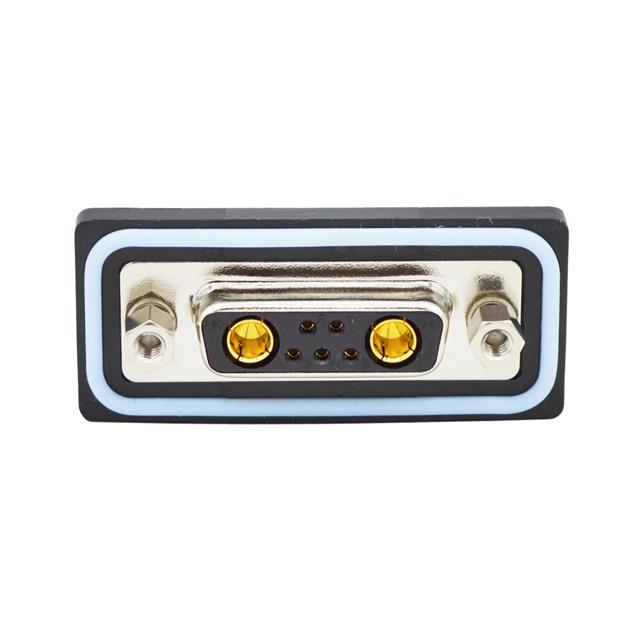

NorComp Inc. CDFV7W2213L411	85 °C	-25 °C	Black	Polybutylene Terephthalate (PBT)	Brass	A DA	2	7W2	7	5	2	Panel Mount Through Hole	Receptacle Female Sockets	Solder	Signal and Power	4-40 Mating Side Female Screwlock	2	Combo D-Sub			UL94 V-0	IP67 - Dust Tight Waterproof		5 A 40 A	Gold	Nickel Plated Steel	Flash
NorComp Inc. CDFV7W2213L452	85 °C	-25 °C	Black	Polybutylene Terephthalate (PBT)	Brass	A DA	2	7W2	7	5	2	Panel Mount Through Hole	Receptacle Female Sockets	Solder	Signal and Power	4-40 Mating Side Female Screwlock	2	Combo D-Sub	30 Áin	0.76 Ám	UL94 V-0	IP67 - Dust Tight Waterproof	Board Lock	5 A 40 A	Gold	Nickel Plated Steel

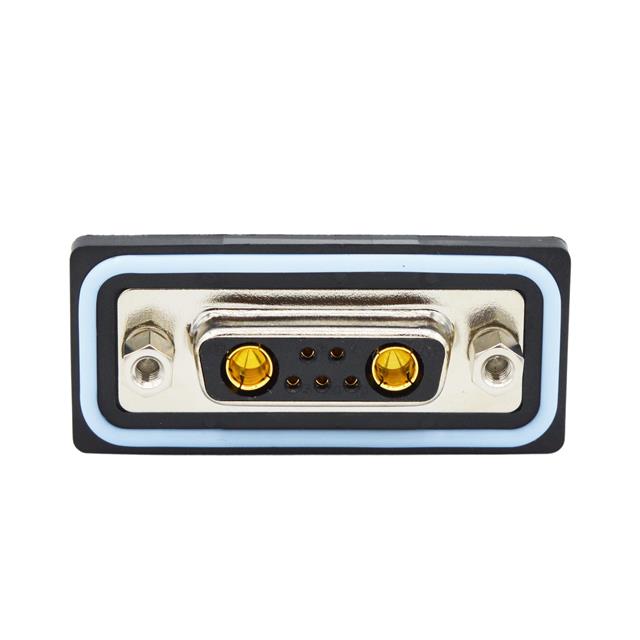

NorComp Inc. CDFV7W2213L451	85 °C	-25 °C	Black	Polybutylene Terephthalate (PBT)	Brass	A DA	2	7W2	7	5	2	Panel Mount Through Hole	Receptacle Female Sockets	Solder	Signal and Power	4-40 Mating Side Female Screwlock	2	Combo D-Sub			UL94 V-0	IP67 - Dust Tight Waterproof	Board Lock	5 A 40 A	Gold	Nickel Plated Steel	Flash

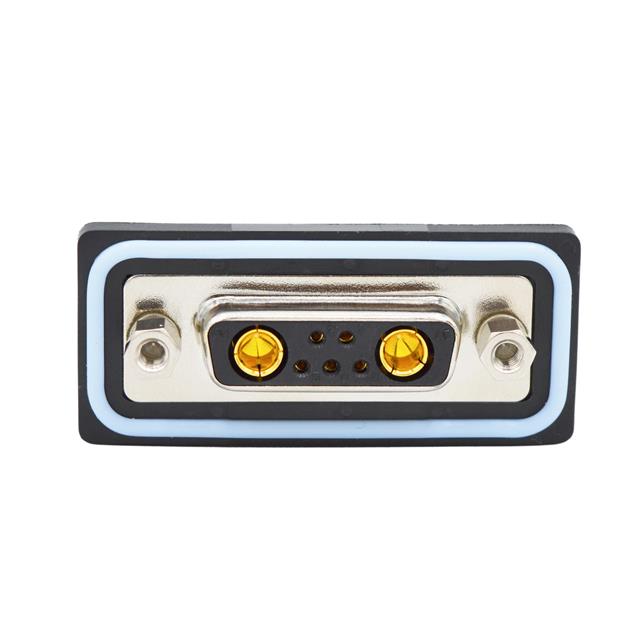

NorComp Inc. CDFV7W2213L211	85 °C	-25 °C	Black	Polybutylene Terephthalate (PBT)	Brass	A DA	2	7W2	7	5	2	Panel Mount Through Hole	Receptacle Female Sockets	Solder	Signal and Power	4-40 Mating Side Female Screwlock	2	Combo D-Sub			UL94 V-0	IP67 - Dust Tight Waterproof			Gold	Nickel Plated Steel	Flash	20A 5A

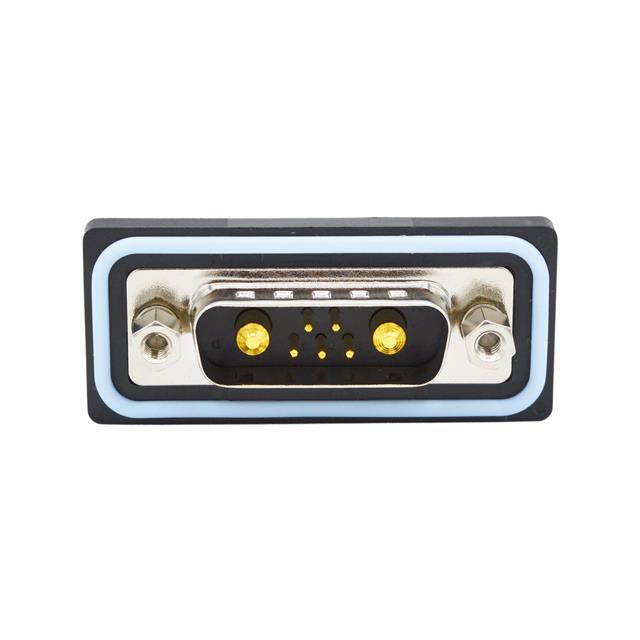

NorComp Inc. CDFV7W2113L211	85 °C	-25 °C	Black	Polybutylene Terephthalate (PBT)	Brass	A DA	2	7W2	7	5	2	Panel Mount Through Hole	Plug Male Pins	Solder	Signal and Power	4-40 Mating Side Female Screwlock	2	Combo D-Sub			UL94 V-0	IP67 - Dust Tight Waterproof	Grounding Indents		Gold	Nickel Plated Steel	Flash	20A 5A
NorComp Inc. CDFV7W2113L412	85 °C	-25 °C	Black	Polybutylene Terephthalate (PBT)	Brass	A DA	2	7W2	7	5	2	Panel Mount Through Hole	Plug Male Pins	Solder	Signal and Power	4-40 Mating Side Female Screwlock	2	Combo D-Sub	30 Áin	0.76 Ám	UL94 V-0	IP67 - Dust Tight Waterproof	Grounding Indents	5 A 40 A	Gold	Nickel Plated Steel

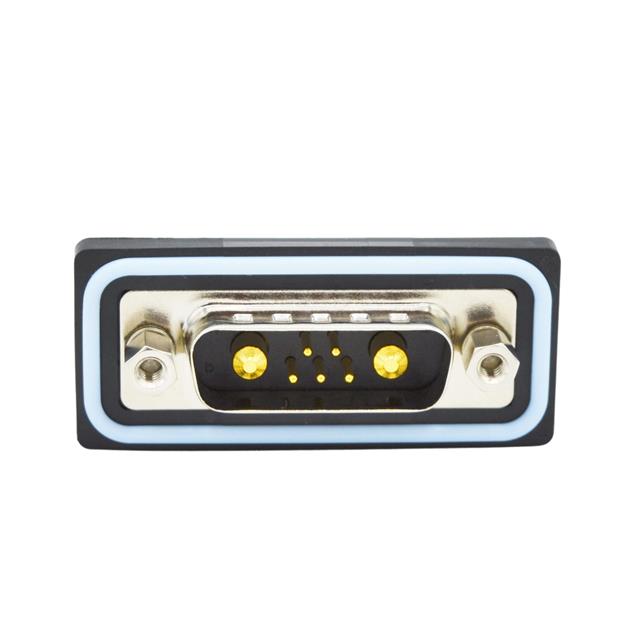

NorComp Inc. CDFV7W2113L251	85 °C	-25 °C	Black	Polybutylene Terephthalate (PBT)	Brass	A DA	2	7W2	7	5	2	Panel Mount Through Hole	Plug Male Pins	Solder	Signal and Power	4-40 Mating Side Female Screwlock	2	Combo D-Sub			UL94 V-0	IP67 - Dust Tight Waterproof	Board Lock Grounding Indents		Gold	Nickel Plated Steel	Flash	20A 5A
NorComp Inc. CDFV7W2113L212	85 °C	-25 °C	Black	Polybutylene Terephthalate (PBT)	Brass	A DA	2	7W2	7	5	2	Panel Mount Through Hole	Plug Male Pins	Solder	Signal and Power	4-40 Mating Side Female Screwlock	2	Combo D-Sub	30 Áin	0.76 Ám	UL94 V-0	IP67 - Dust Tight Waterproof	Grounding Indents		Gold	Nickel Plated Steel		20A 5A

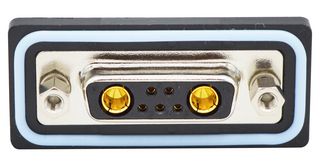

NorComp Inc. CDFV7W2213L412	85 °C	-25 °C	Black	Polybutylene Terephthalate (PBT)	Brass	A DA	2	7W2	7	5	2	Panel Mount Through Hole	Receptacle Female Sockets	Solder	Signal and Power	4-40 Mating Side Female Screwlock	2	Combo D-Sub	30 Áin	0.76 Ám	UL94 V-0	IP67 - Dust Tight Waterproof		5 A 40 A	Gold	Nickel Plated Steel
