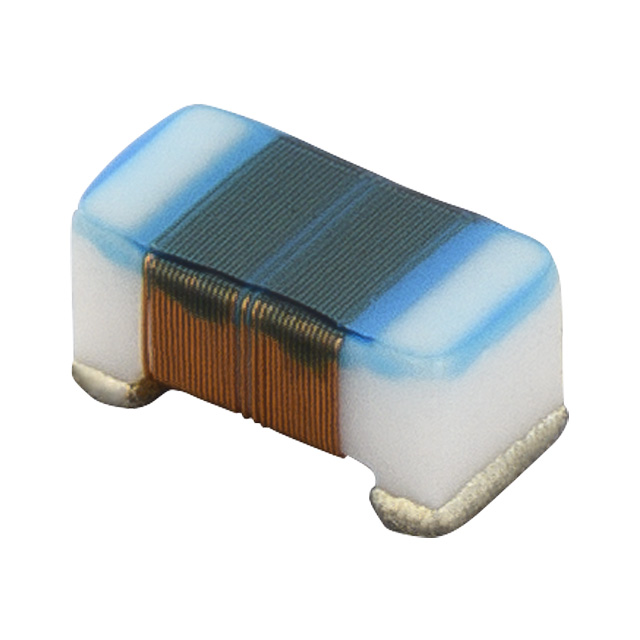

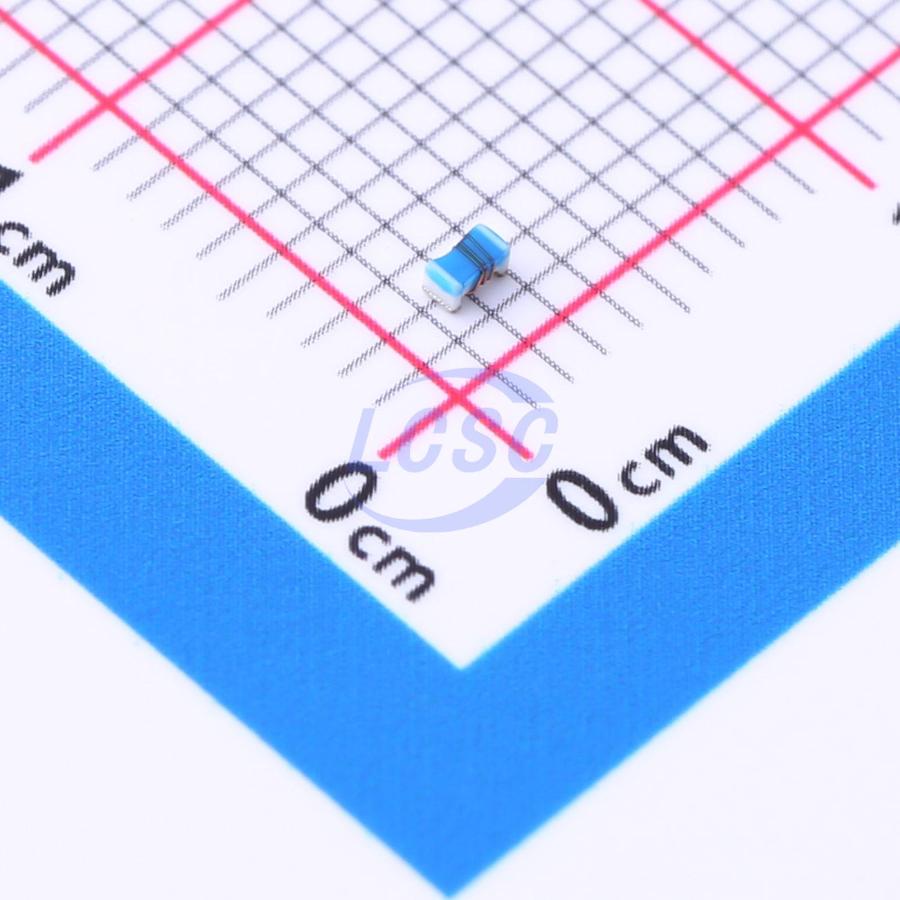

LQW18AN Series

Manufacturer: Murata Power Solutions Inc.

Catalog

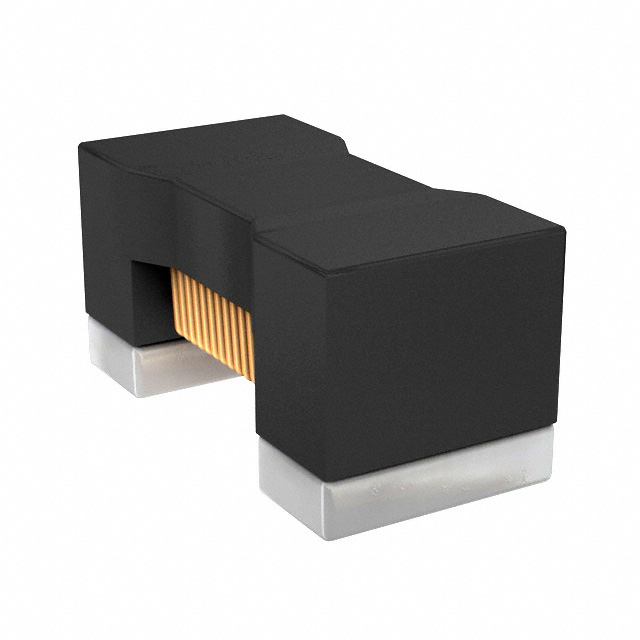

FIXED IND 58NH 700MA 0.3OHM SMD

...

Part	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	DC Resistance (DCR) [Max]	Package / Case	Inductance	Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Min]	Operating Temperature [Max]	Inductance Frequency - Test	Frequency - Self Resonant	Q @ Freq	Tolerance	Material - Core	Shielding	Current Rating (Amps)	Mounting Type	DC Resistance (DCR)	Ratings
Murata Power Solutions Inc. LQW18AN58NG80D	0.039 "	1 mm	300 mOhm	0603 (1608 Metric)	58 nH	Drum Core Wirewound	0.039 "	1.65 mm	0.065 in	0.99 mm	-55 °C	125 °C	100 MHz	2.4 GHz	35 200 MHz	2 %	Non-Magnetic	Unshielded	700 mA	Surface Mount
Murata Power Solutions Inc. LQW18AN83NJ80D	0.039 "	1 mm	500 mOhm	0603 (1608 Metric)	83 nH	Drum Core Wirewound	0.039 "	1.65 mm	0.065 in	0.99 mm	-55 °C	125 °C	100 MHz	2.23 GHz	34 150 MHz	5 %	Non-Magnetic	Unshielded	0.55 A	Surface Mount
Murata Power Solutions Inc. LQW18AN34NJ80D	0.039 "	1 mm	150 mOhm	0603 (1608 Metric)	34 nH	Drum Core Wirewound	0.039 "	1.65 mm	0.065 in	0.99 mm	-55 °C	125 °C	100 MHz	3 GHz	40 250 MHz	5 %	Non-Magnetic	Unshielded	1.05 A	Surface Mount
Murata Power Solutions Inc. LQW18AN15NJ80D	0.039 "	1 mm	75 mOhm	0603 (1608 Metric)	15 nH	Drum Core Wirewound	0.039 "	1.65 mm	0.065 in	0.99 mm	-55 °C	125 °C	100 MHz	4.6 GHz	38 250 MHz	5 %	Non-Magnetic	Unshielded	1.4 A	Surface Mount
Murata Power Solutions Inc. LQW18AN48NG80D	0.039 "	1 mm	230 mOhm	0603 (1608 Metric)	48 nH	Drum Core Wirewound	0.039 "	1.65 mm	0.065 in	0.99 mm	-55 °C	125 °C	100 MHz	2.7 GHz	32 200 MHz	2 %	Non-Magnetic	Unshielded	830 mA	Surface Mount
Murata Power Solutions Inc. LQW18AN56NG0ZD	0.039 "	1 mm		0603 (1608 Metric)	56 nH	Drum Core Wirewound	0.031 in	1.6 mm	0.063 in	0.8 mm	-55 °C	125 °C	100 MHz	2.4 GHz	38 200 MHz	2 %	Non-Magnetic	Unshielded	360 mA	Surface Mount	350 mOhm	AEC-Q200
Murata Power Solutions Inc. LQW18AN78NG8ZD	0.039 "	1 mm	410 mOhm	0603 (1608 Metric)	78 nH	Drum Core Wirewound	0.039 "	1.65 mm	0.065 in	0.99 mm	-55 °C	125 °C	100 MHz	2.28 GHz	28 150 MHz	2 %	Non-Magnetic	Unshielded	590 mA	Surface Mount		AEC-Q200
Murata Power Solutions Inc. LQW18AN4N9B80D	0.039 "	1 mm	81 mOhm	0603 (1608 Metric)	4.9 nH	Drum Core Wirewound	0.039 "	1.65 mm	0.065 in	0.99 mm	-55 °C	125 °C	100 MHz	7.3 GHz	23 250 MHz	0.1 nH	Non-Magnetic	Unshielded	1.2 A	Surface Mount
Murata Power Solutions Inc. LQW18AN6N5G80D	0.039 "	1 mm	40 mOhm	0603 (1608 Metric)	6.5 nH	Drum Core Wirewound	0.039 "	1.65 mm	0.065 in	0.99 mm	-55 °C	125 °C	100 MHz	6.65 GHz	40 250 MHz	2 %	Non-Magnetic	Unshielded	1.9 A	Surface Mount
Murata Power Solutions Inc. LQW18AN27NJ0ZD	0.039 "	1 mm		0603 (1608 Metric)	27 nH	Drum Core Wirewound	0.031 in	1.6 mm	0.063 in	0.8 mm	-55 °C	125 °C	100 MHz	3.7 GHz	40 250 MHz	5 %	Non-Magnetic	Unshielded	0.44 A	Surface Mount	210 mOhm	AEC-Q200
