TPS61194 Series
Manufacturer: Texas Instruments
Beta
⌘K
EVALUATION MODULE
| Part | Voltage - Input [Min] | Voltage - Input [Max] | Utilized IC / Part | Voltage - Output | Current - Output / Channel | Supplied Contents | Outputs and Type | Outputs and Type | Applications | Dimming | Frequency [Max] | Frequency [Min] | Package / Case | Package / Case [custom] | Package / Case | Supplier Device Package | Mounting Type | Topology | Number of Outputs | Internal Switch(s) | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Supply (Min) [Min] | Voltage - Supply (Max) [Max] | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

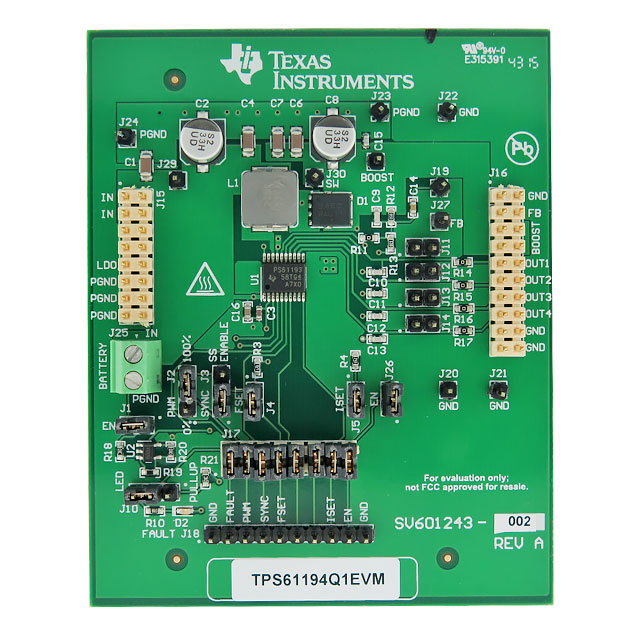

 Texas Instruments | 4.5 V | 40 V | TPS61194-Q1 | 45 V | 100 mA | Board(s) | 4 | Non-Isolated | |||||||||||||||||

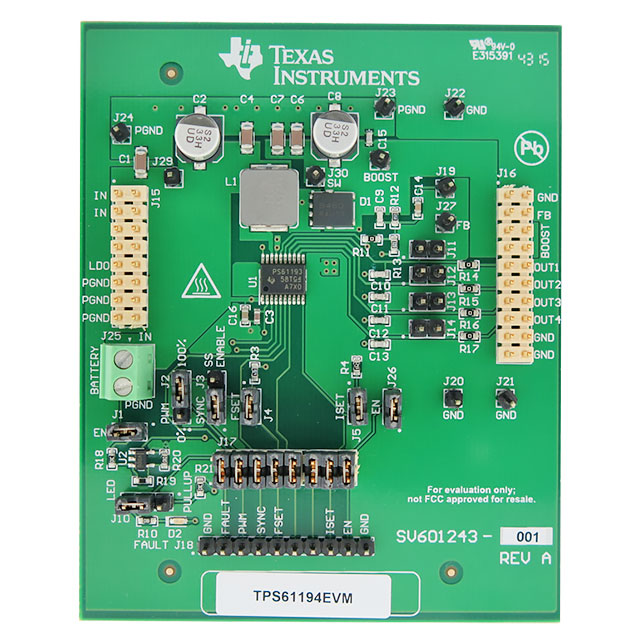

 Texas Instruments | 4.5 V | 40 V | TPS61194 | 45 V | 100 mA | Board(s) | 4 | Non-Isolated | |||||||||||||||||
 Texas Instruments | 45 V | 100 mA | Backlight | PWM | 2.2 MHz | 300 kHz | 20-PowerTSSOP | 4.4 mm | 0.173 in | 20-HTSSOP | Surface Mount | SEPIC Step-Up (Boost) | 4 | -40 °C | 125 °C | 4.5 V | 40 V | DC DC Regulator |
