3.14100 Series
Manufacturer: RAFI USA
Beta
⌘K

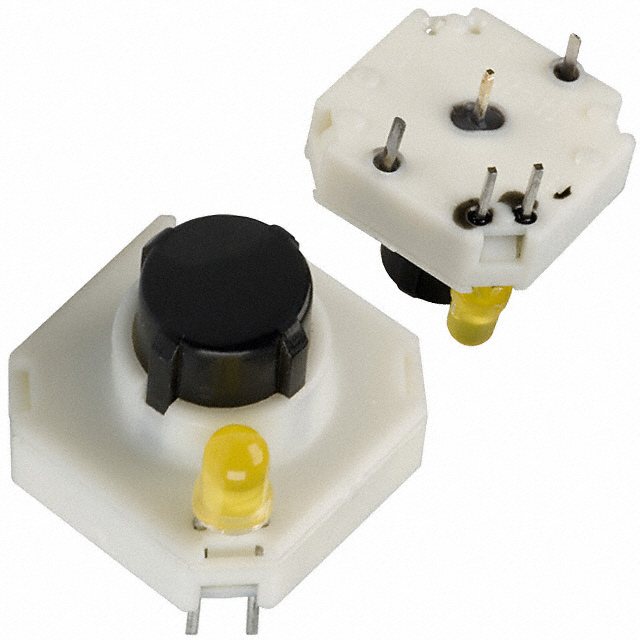

SWITCH TACTILE SPST-NO 0.25A 35V
| Part | Operating Force | Switch Function | Outline [x] | Outline [y] | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Actuator Orientation | Illumination Type, Color | Actuator Type | Illumination | Actuator Height off PCB, Vertical [z] | Circuit | Contact Rating @ Voltage | Termination Style | Switch Travel | Mechanical Life |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 RAFI USA | 296 gf | Off-Mom | 15 mm | 15 mm | -25 °C | 70 °C | Through Hole | Top Actuated | LED Yellow | Round Button | Illuminated | 12.5 mm | SPST-NO | 0.25 A 35 VAC/DC | PC Pin | ||
RAFI USA | 296 gf | Off-Mom | 15 mm | 15 mm | -25 °C | 70 °C | Through Hole | Top Actuated | LED Yellow | Round Button | Illuminated | 12.5 mm | SPST-NO | 0.25 A 35 VAC/DC | PC Pin | 0.5 mm | 1000000 Cycles |
