SSL-LX3034 Series

Catalog

LED YELLOW DIFFUSED T-1 T/H

Part	Supplier Device Package	Configuration	Mounting Type	Lens Transparency	Voltage - Forward (Vf) (Typ)	Color	Millicandela Rating	Viewing Angle	Height (Max) [Max] [z]	Wavelength - Peak	Lens Color	Lens Size	Lens Size	Lens Style	Current - Test	Package / Case

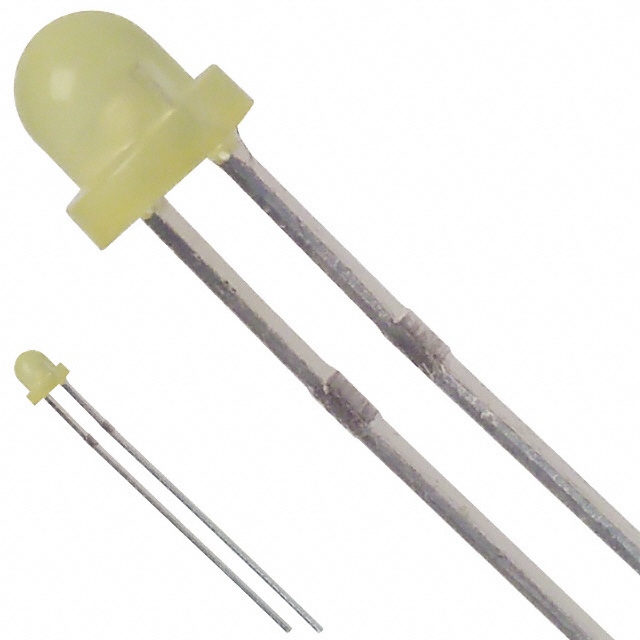

Lumex Opto/Components Inc. SSL-LX3034YD	T-1	Standard	Through Hole	Diffused	2.1 V	Yellow	10 mcd	60 °	3.8 mm	585 nm	Yellow	3 mm	T-1	Round with Domed Top	20 mA	Radial
Lumex Opto/Components Inc. SSL-LX3034ID	T-1	Standard	Through Hole	Diffused	2 V	Red	10 mcd	60 °	3.8 mm	635 nm	Red	3 mm	T-1	Round with Domed Top	20 mA	Radial

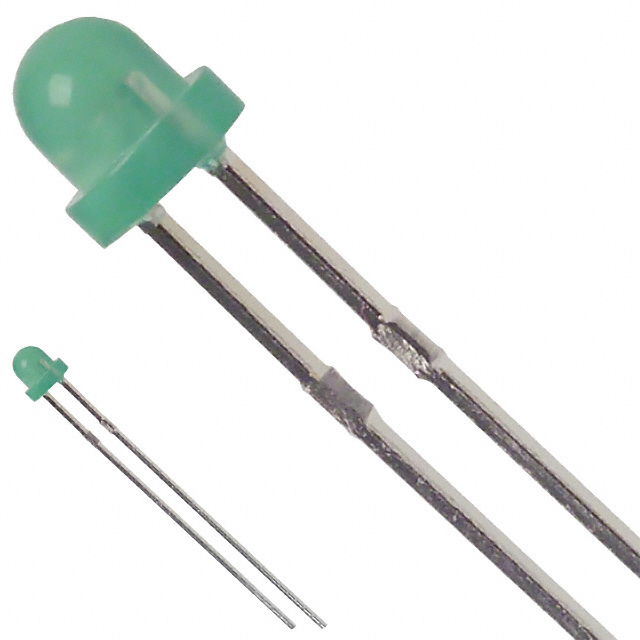

Lumex Opto/Components Inc. SSL-LX3034GD	T-1	Standard	Through Hole	Diffused	2.2 V	Green	10 mcd	60 °	3.8 mm	565 nm	Green	3 mm	T-1	Round with Domed Top	20 mA	Radial
