RAYCHEM ES-CAP Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

ES-CAP-NO.2-B9-0-35MM

Part	Type	Color	Total Length Supplied	Total Length Supplied	Large Diameter Recovered [diameter]	Large Diameter Recovered [diameter]	Features	Material	Large Diameter Supplied [diameter]	Large Diameter Supplied [diameter]
TE Connectivity AMP Connectors EG41050001
TE Connectivity AMP Connectors ES-CAP-NO.1-C1-X-50MM	Cap	Clear	1.97 in	50.04 mm	1.27 mm	0.05 in	Abrasion Resistant Adhesive Coating Fluid Resistant Moisture Resistant Strain Resistant	Polyolefin (PO) Semi-Rigid	5.72 mm	0.225 in
TE Connectivity AMP Connectors ES-CAP-NO.1-C1-0-40MM	Cap	Black	1.575 in	40.01 mm	1.27 mm	0.05 in	Abrasion Resistant Adhesive Coating Flame Retardant Fluid Resistant Moisture Resistant Strain Resistant	Polyolefin (PO) Semi-Rigid	5.72 mm	0.225 in
TE Connectivity AMP Connectors ES-CAP-NO.3-B8-0-35MM	Cap	Black	1.38 in	35.05 mm	2.41 mm	0.095 in	Abrasion Resistant Adhesive Coating Flame Retardant Fluid Resistant Moisture Resistant Strain Resistant	Polyolefin (PO) Semi-Rigid	10.85 mm	0.427 in
TE Connectivity AMP Connectors EG40970001	Cap	Black	1.18 "	29.97 mm	1.27 mm	0.05 in	Abrasion Resistant Adhesive Coating Flame Retardant Fluid Resistant Moisture Resistant Strain Resistant	Polyolefin (PO) Semi-Rigid	5.72 mm	0.225 in
TE Connectivity AMP Connectors ES-CAP-NO.1-C1-0-30MM	Cap	Black	1.18 "	29.97 mm	1.27 mm	0.05 in	Abrasion Resistant Adhesive Coating Flame Retardant Fluid Resistant Moisture Resistant Strain Resistant	Polyolefin (PO) Semi-Rigid	5.72 mm	0.225 in
TE Connectivity AMP Connectors ES-CAP-HW-NO.3-M8-0-45MM	Cap	Black	1.77 in	44.96 mm	2.41 mm	0.095 in		Polyolefin (PO) Semi-Rigid	10.85 mm	0.427 in
TE Connectivity AMP Connectors ES-CAP-NO.1-C1-0-35MM	Cap	Black	1.38 in	35.05 mm	1.27 mm	0.05 in	Abrasion Resistant Adhesive Coating Flame Retardant Fluid Resistant Moisture Resistant Strain Resistant	Polyolefin (PO) Semi-Rigid	5.72 mm	0.225 in

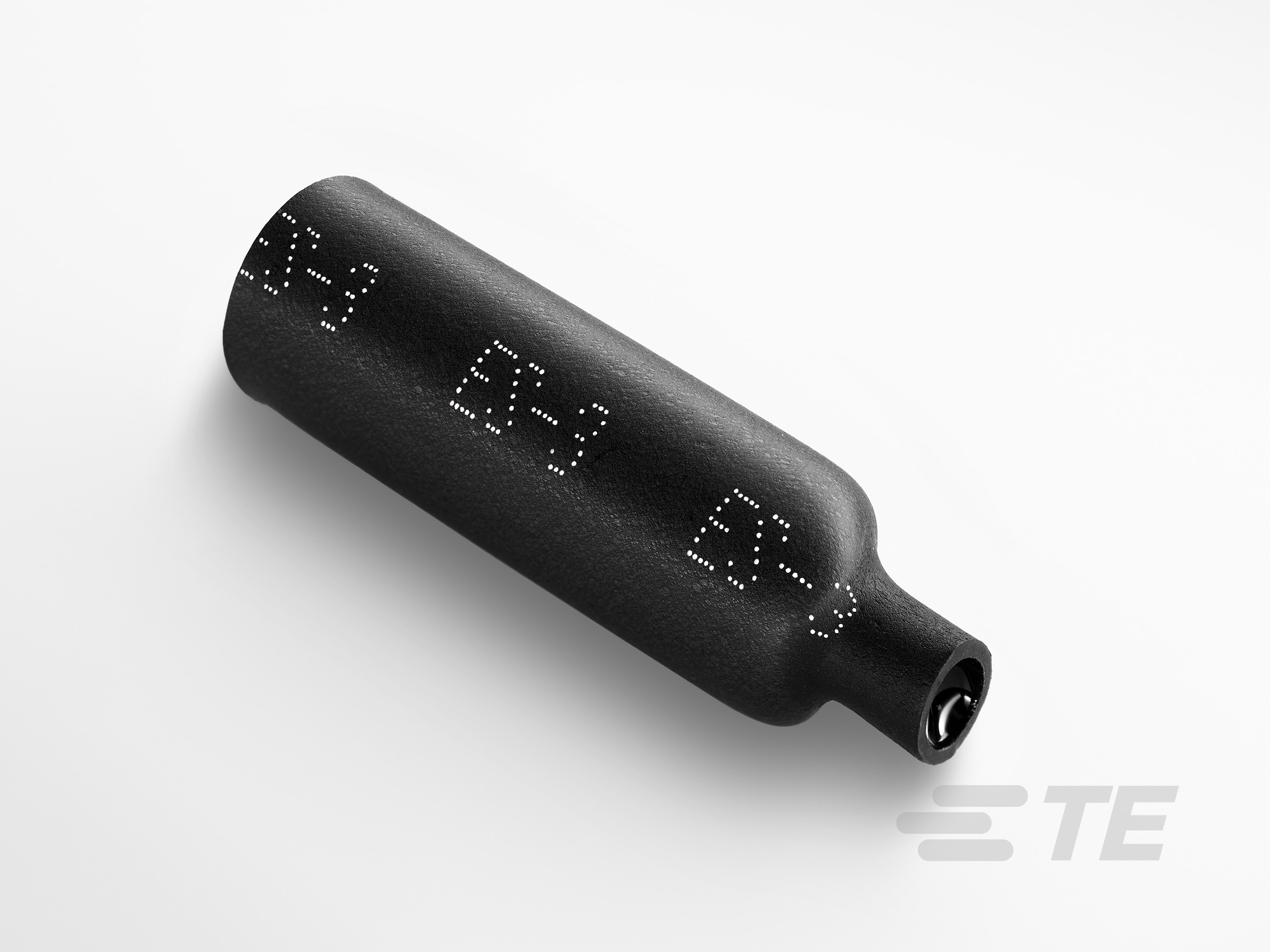

TE Connectivity AMP Connectors ES-CAP-NO.3-B8-0-50MM	Cap	Black	1.97 in	50.04 mm	2.41 mm	0.095 in	Abrasion Resistant Adhesive Coating Flame Retardant Fluid Resistant Moisture Resistant Strain Resistant	Polyolefin (PO) Semi-Rigid	10.85 mm	0.427 in
TE Connectivity AMP Connectors ES-CAP-HW-NO.3-0-45MM-ST	Cap	Black	1.77 in	44.96 mm	2.41 mm	0.095 in	Abrasion Resistant Adhesive Coating Flame Retardant Fluid Resistant Moisture Resistant Strain Resistant	Polyolefin (PO) Semi-Rigid	10.85 mm	0.427 in
