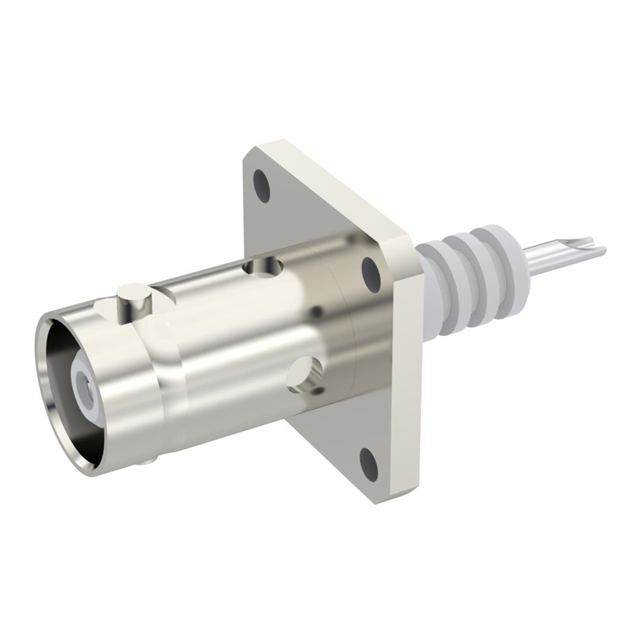

R31640 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K
BNCHV F SQF
| Part | Mating Cycles | Body Material | Body Finish | Operating Temperature [Max] | Operating Temperature [Min] | Center Contact Plating | Dielectric Material | Number of Ports | Housing Color | Mounting Feature | Contact Termination | Features | Connector Style | Frequency - Max [Max] | Connector Type | Shield Termination | Fastening Type | Impedance | Mounting Type | Center Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 500 | Brass | Nickel | 155 C | -55 C | Silver | Polytetrafluoroethylene (PTFE) | 1 | Silver | Flange | Solder Cup | Extended Insulation | BNC | 2 GHz | Receptacle Female Socket | Solder | Bayonet Lock | 50 Ohms | Panel Mount | Beryllium Copper Brass |
