TPS63806 Series

2.5-A high-efficient buck-boost converter with optimized load step response in tiny WCSP

Catalog

2.5-A high-efficient buck-boost converter with optimized load step response in tiny WCSP

Part	Voltage - Output (Min/Fixed)	Output Configuration	Voltage - Input (Min) [Min]	Number of Outputs	Package / Case	Function	Mounting Type	Voltage - Input (Max) [Max]	Output Type	Synchronous Rectifier	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Topology	Voltage - Output (Max) [Max]	Frequency - Switching	Current - Output	Board Type	Supplied Contents	Outputs and Type	Outputs and Type	Voltage - Input [Min]	Voltage - Input [Max]	Regulator Topology	Utilized IC / Part	Voltage - Output	Contents	Main Purpose
Texas Instruments TPS63806YFFR	1.8 V	Positive	1.3 V	1	15-UFBGA DSBGA	Step-Up/Step-Down	Surface Mount	5.5 V	Adjustable		15-DSBGA	-40 C	125 °C	Buck-Boost	5.2 V	2.1 MHz	2 A

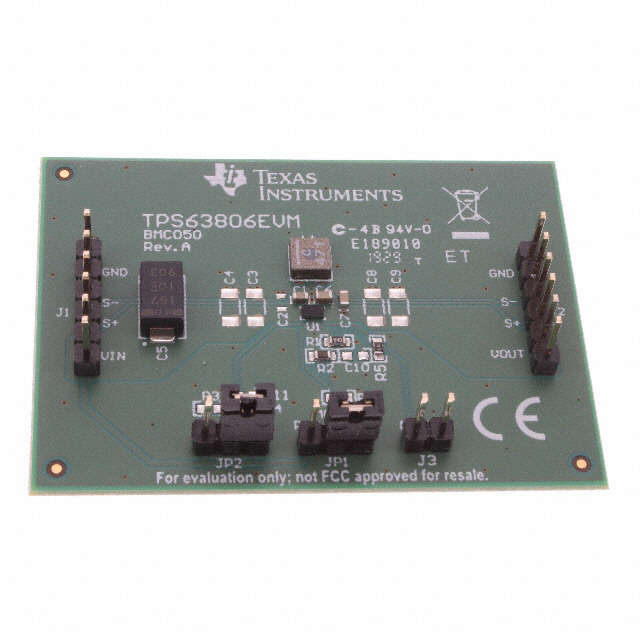

Texas Instruments TPS63806EVM																2.1 MHz	2 A	Fully Populated	Board(s)	1	1 Non-Isolated Output Non-Isolated	1.3 V	5.5 V	Buck-Boost	TPS63806	3.3 V	Board(s)	DC/DC Step Up or Down

Catalog

2.5-A high-efficient buck-boost converter with optimized load step response in tiny WCSP

Description

The TPS63805, TPS63806, and TPS63807 are high efficiency, high output current buck-boost converters. Depending on the input voltage, they automatically operate in boost, buck, or in a novel 4-cycle buck-boost mode when the input voltage is approximately equal to the output voltage. The TPS63805, TPS63806, and TPS63807 are high efficiency, high output current buck-boost converters. Depending on the input voltage, they automatically operate in boost, buck, or in a novel 4-cycle buck-boost mode when the input voltage is approximately equal to the output voltage.
