664-025 Series
Manufacturer: EDAC Inc.
Beta
⌘K

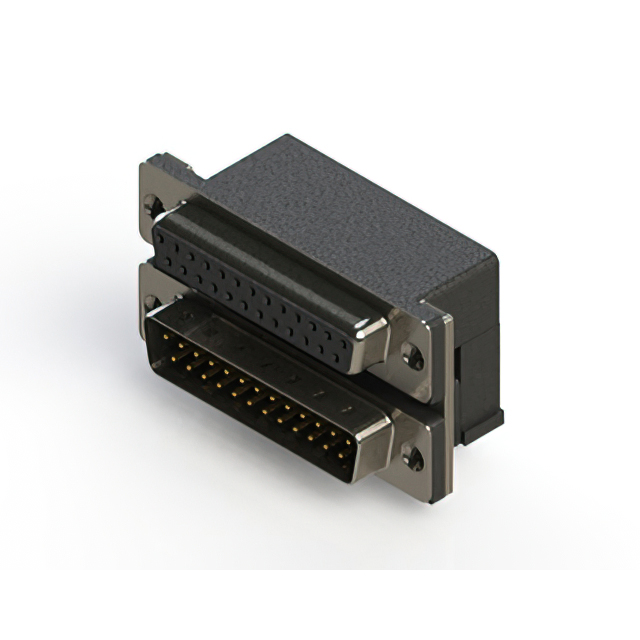

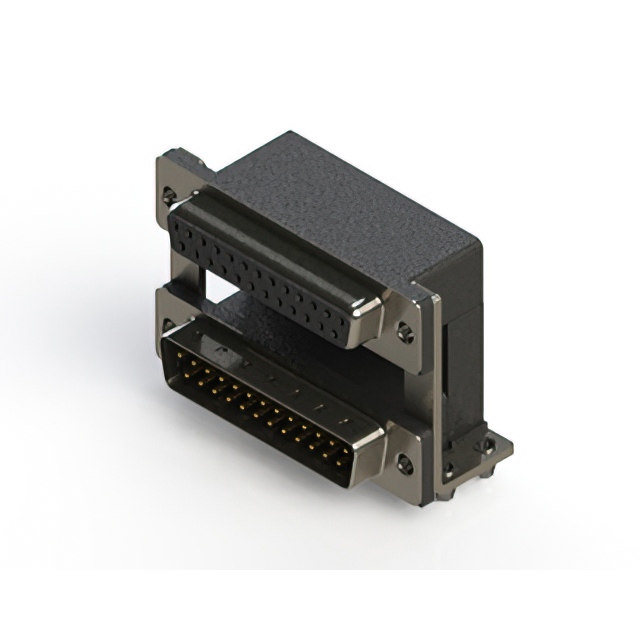

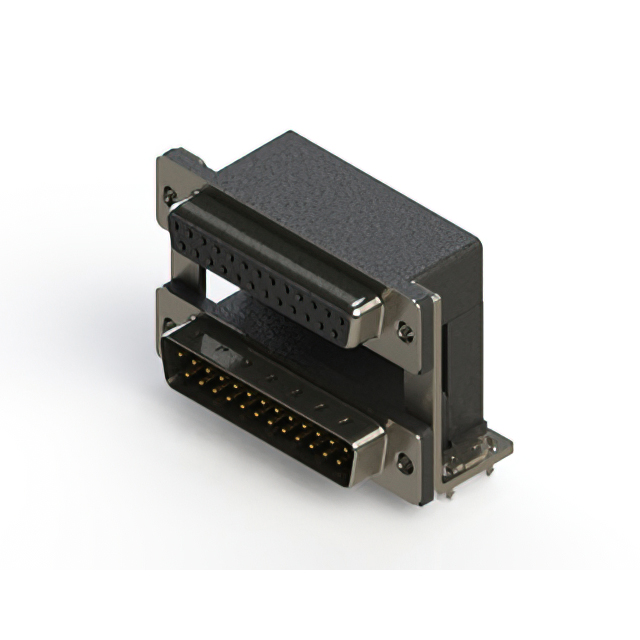

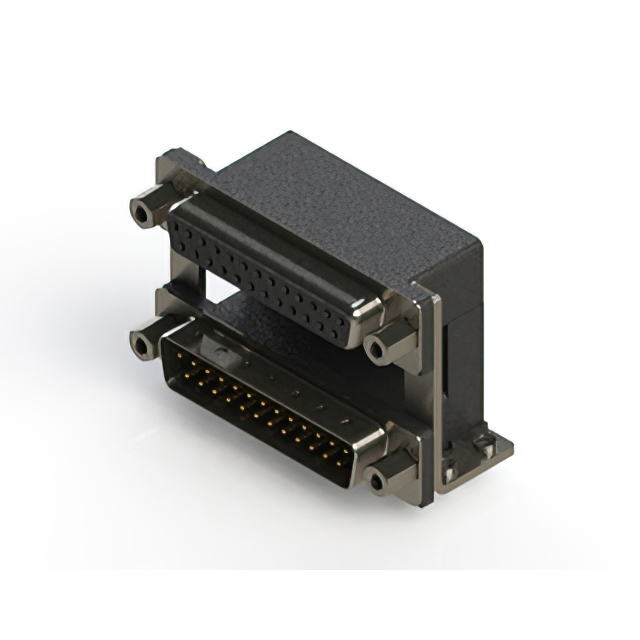

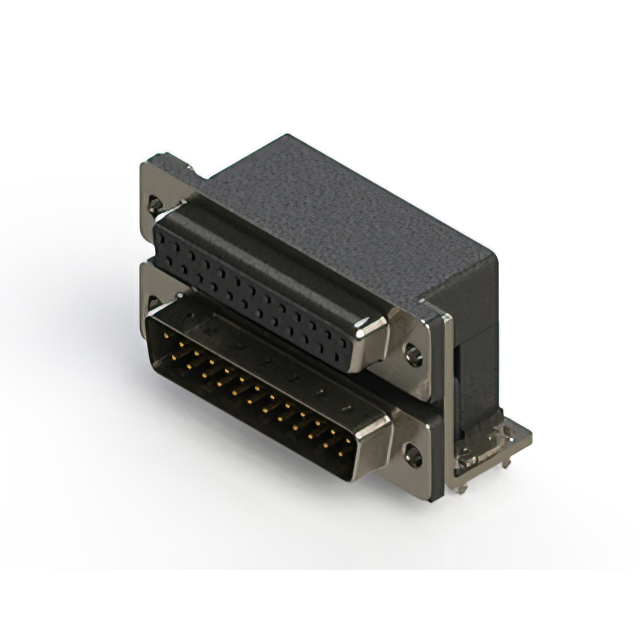

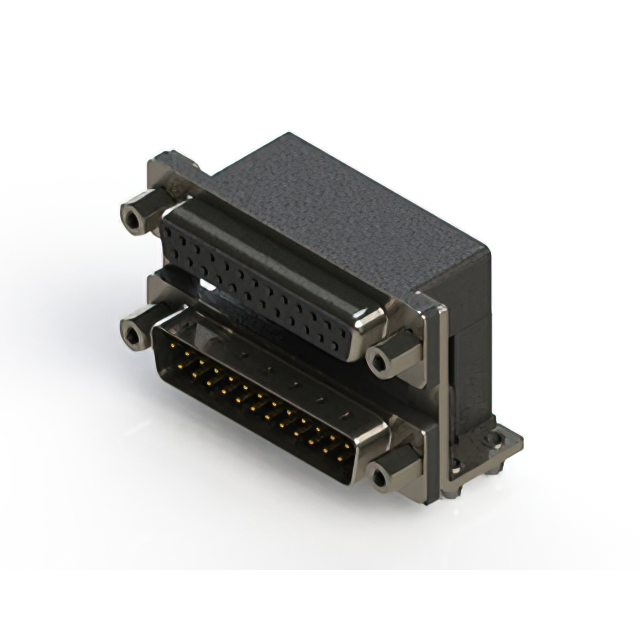

664 SERIES RIGHT ANGLE DUAL D-SU
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Color | Dielectric Material | Contact Material | Contact Type | Connector Style | Contact Finish Thickness | Contact Finish Thickness | Shell Size, Connector Layout | Mounting Type | Features | Connector Type | Number of Rows [custom] | Backset Spacing | Backset Spacing | Termination | Flange Feature | Contact Finish | Material Flammability Rating | Shell Material, Finish | Number of Positions | Current Rating (Amps) | Flange Feature | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | -55 C | 85 °C | Black | Polyester Thermoplastic | Brass Phosphor Bronze | Signal | D-Sub - Stacked | 30 Áin | 0.76 Ám | 3 (DB B) | Right Angle Through Hole | Board Lock Grounding Indents Mounting Brackets Shielded | Plug Male Pins Receptacle Female Socket | 2 | 8.08 mm | 0.318 " | Solder | Housing/Shell (Unthreaded) | Gold | UL94 V-0 | Nickel Plated Steel | 25 | 3 A | ||
 EDAC Inc. | -55 C | 85 °C | Black | Polyester Thermoplastic | Brass Phosphor Bronze | Signal | D-Sub - Stacked | 30 Áin | 0.76 Ám | 3 (DB B) | Right Angle Through Hole | Grounding Indents Mounting Brackets Shielded | Plug Male Pins Receptacle Female Socket | 2 | 8.08 mm | 0.318 " | Solder | 4-40 Mating Side Female Screwlock | Gold | UL94 V-0 | Nickel Plated Steel | 25 | 3 A | ||
 EDAC Inc. | -55 C | 85 °C | Black | Polyester Thermoplastic | Brass Phosphor Bronze | Signal | D-Sub - Stacked | 30 Áin | 0.76 Ám | 3 (DB B) | Right Angle Through Hole | Grounding Indents Shielded | Plug Male Pins Receptacle Female Socket | 2 | 8.08 mm | 0.318 " | Solder | Housing/Shell | Gold | UL94 V-0 | Nickel Plated Steel | 25 | 3 A | 4-40 | |
 EDAC Inc. | -55 C | 85 °C | Black | Polyester Thermoplastic | Brass Phosphor Bronze | Signal | D-Sub - Stacked | 30 Áin | 0.76 Ám | 3 (DB B) | Right Angle Through Hole | Grounding Indents Mounting Brackets Shielded | Plug Male Pins Receptacle Female Socket | 2 | 8.08 mm | 0.318 " | Solder | Housing/Shell | Gold | UL94 V-0 | Nickel Plated Steel | 25 | 3 A | 4-40 | |
 EDAC Inc. | -55 C | 85 °C | Black | Polyester Thermoplastic | Brass Phosphor Bronze | Signal | D-Sub - Stacked | 30 Áin | 0.76 Ám | 3 (DB B) | Right Angle Through Hole | Board Lock Grounding Indents Mounting Brackets Shielded | Plug Male Pins Receptacle Female Socket | 2 | 8.08 mm | 0.318 " | Solder | Housing/Shell (M3) | Gold | UL94 V-0 | Nickel Plated Steel | 25 | 3 A | ||
 EDAC Inc. | -55 C | 85 °C | Black | Polyester Thermoplastic | Brass Phosphor Bronze | Signal | D-Sub - Stacked | 30 Áin | 0.76 Ám | 3 (DB B) | Right Angle Through Hole | Board Lock Grounding Indents Mounting Brackets Shielded | Plug Male Pins Receptacle Female Socket | 2 | 8.08 mm | 0.318 " | Solder | Housing/Shell (Unthreaded) | Gold | UL94 V-0 | Nickel Plated Steel | 25 | 3 A | ||
 EDAC Inc. | -55 C | 85 °C | Black | Polyester Thermoplastic | Brass Phosphor Bronze | Signal | D-Sub - Stacked | 15 µin | 0.38 µm | 3 (DB B) | Right Angle Through Hole | Board Lock Grounding Indents Mounting Brackets Shielded | Plug Male Pins Receptacle Female Socket | 2 | 8.08 mm | 0.318 " | Solder | 4-40 Mating Side Female Screwlock | Gold | UL94 V-0 | Nickel Plated Steel | 25 | 3 A | ||
 EDAC Inc. | -55 C | 85 °C | Black | Polyester Thermoplastic | Brass Phosphor Bronze | Signal | D-Sub - Stacked | 3 (DB B) | Right Angle Through Hole | Board Lock Grounding Indents Mounting Brackets Shielded | Plug Male Pins Receptacle Female Socket | 2 | 8.08 mm | 0.318 " | Solder | 4-40 Mating Side Female Screwlock | Gold | UL94 V-0 | Nickel Plated Steel | 25 | 3 A | Flash | |||
 EDAC Inc. | -55 C | 85 °C | Black | Polyester Thermoplastic | Brass Phosphor Bronze | Signal | D-Sub - Stacked | 3 (DB B) | Right Angle Through Hole | Grounding Indents Shielded | Plug Male Pins Receptacle Female Socket | 2 | 8.08 mm | 0.318 " | Solder | 4-40 Mating Side Female Screwlock | Gold | UL94 V-0 | Nickel Plated Steel | 25 | 3 A | Flash | |||
 EDAC Inc. | -55 C | 85 °C | Black | Polyester Thermoplastic | Brass Phosphor Bronze | Signal | D-Sub - Stacked | 30 Áin | 0.76 Ám | 3 (DB B) | Right Angle Through Hole | Board Lock Grounding Indents Mounting Brackets Shielded | Plug Male Pins Receptacle Female Socket | 2 | 8.08 mm | 0.318 " | Solder | Housing/Shell (M3) | Gold | UL94 V-0 | Nickel Plated Steel | 25 | 3 A |
