SPUN02 Series

Catalog

DC/DC CONVERTER

Part	Voltage - Isolation	Applications	Number of Outputs	Type	Efficiency	Approval Agency	Voltage - Output 1	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Package / Case	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Mounting Type	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)
MEAN WELL USA Inc. SPUN02N-05	3000 V	ITE (Commercial)	1	Isolated Module	81 %	CE EAC UKCA	5 V	26.4 V	400 mA	7-SIP Module 4 Leads	0.4 "	0.28 in	10.2 mm	7.2 mm	19.6 mm	0.77 in	Through Hole	21.6 V	105 C	-40 °C	2 W
MEAN WELL USA Inc. SPUN02M-15	3000 V	ITE (Commercial)	1	Isolated Module	86 %	CE EAC UKCA	15 V	13.2 V	134 mA	7-SIP Module 4 Leads	0.4 "	0.28 in	10.2 mm	7.2 mm	19.6 mm	0.77 in	Through Hole	10.8 V	105 C	-40 °C	2 W
MEAN WELL USA Inc. SPUN02M-05	3000 V	ITE (Commercial)	1	Isolated Module	81 %	CE EAC UKCA	5 V	13.2 V	400 mA	7-SIP Module 4 Leads	0.4 "	0.28 in	10.2 mm	7.2 mm	19.6 mm	0.77 in	Through Hole	10.8 V	105 C	-40 °C	2 W
MEAN WELL USA Inc. SPUN02M-12	3000 V	ITE (Commercial)	1	Isolated Module	86 %	CE EAC UKCA	12 V	13.2 V	167 mA	7-SIP Module 4 Leads	0.4 "	0.28 in	10.2 mm	7.2 mm	19.6 mm	0.77 in	Through Hole	10.8 V	105 C	-40 °C	2 W
MEAN WELL USA Inc. SPUN02N-15	3000 V	ITE (Commercial)	1	Isolated Module	86 %	CE EAC UKCA	15 V	26.4 V	134 mA	7-SIP Module 4 Leads	0.4 "	0.28 in	10.2 mm	7.2 mm	19.6 mm	0.77 in	Through Hole	21.6 V	105 C	-40 °C	2 W
MEAN WELL USA Inc. SPUN02L-15	3000 V	ITE (Commercial)	1	Isolated Module	84 %	CE EAC UKCA	15 V	5.5 V	134 mA	7-SIP Module 4 Leads	0.4 "	0.28 in	10.2 mm	7.2 mm	19.6 mm	0.77 in	Through Hole	4.5 V	105 C	-40 °C	2 W

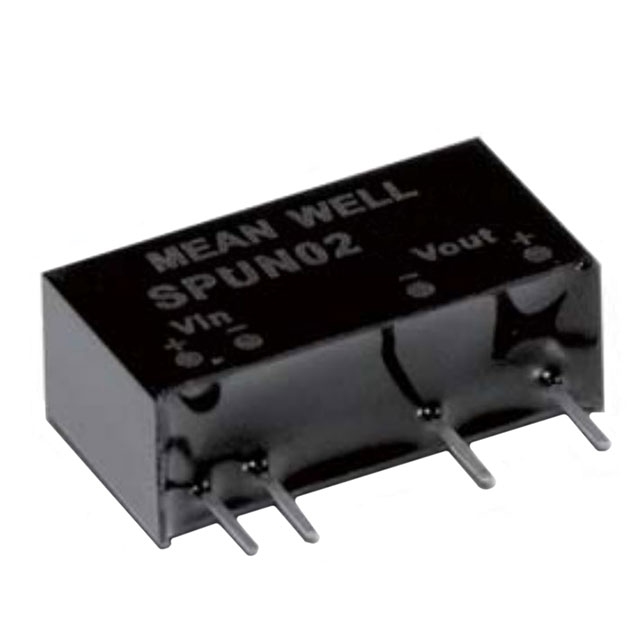

MEAN WELL USA Inc. SPUN02L-05	3000 V	ITE (Commercial)	1	Isolated Module	81 %	CE EAC UKCA	5 V	5.5 V	400 mA	7-SIP Module 4 Leads	0.4 "	0.28 in	10.2 mm	7.2 mm	19.6 mm	0.77 in	Through Hole	4.5 V	105 C	-40 °C	2 W
MEAN WELL USA Inc. SPUN02L-12	3000 V	ITE (Commercial)	1	Isolated Module	84 %	CE EAC UKCA	12 V	5.5 V	167 mA	7-SIP Module 4 Leads	0.4 "	0.28 in	10.2 mm	7.2 mm	19.6 mm	0.77 in	Through Hole	4.5 V	105 C	-40 °C	2 W
