D4E-1A23 Series

Catalog

SWITCH SNAP ACTION SPDT 5A 125V

Part	Ingress Protection	Operating Force	Voltage Rating - DC	Switch Function	Termination Style	Differential Travel	Differential Travel	Circuit	Overtravel	Overtravel	Current Rating (Amps)	Operating Position	Operating Position	Mechanical Life	Pretravel	Pretravel	Release Force	Electrical Life	Voltage Rating - AC	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Features

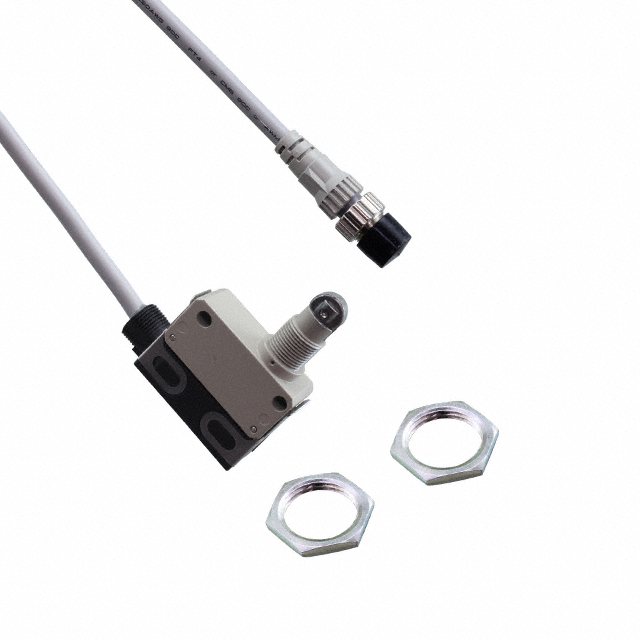

Omron Electronics Inc-EMC Div D4E-1A23N-FH-M1J 0.3M	IP67 - Dust Tight Waterproof	1200 gf	30 V	On-Mom	Cable Leads	0.1 mm	0.004 in	SPDT	3 mm	0.118 in	5 A	1.235 in	31.4 mm	10000000 Cycles	1.5 mm	0.06 in	500 gf	500000 Cycles	125 V	Roller Plunger	80 C	-10 °C

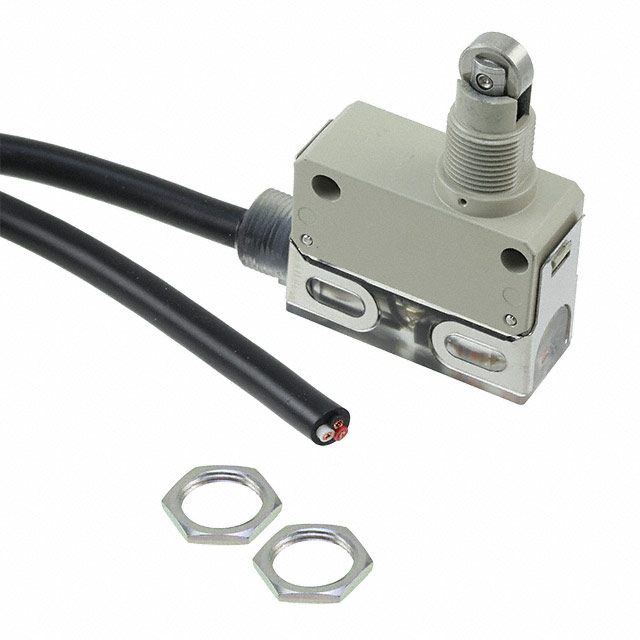

Omron Electronics Inc-EMC Div D4E-1A23L2N	IP67 - Dust Tight Waterproof	1200 gf	30 V	On-Mom	Cable Leads	0.1 mm	0.004 in	SPDT	3 mm	0.118 in	5 A	1.235 in	31.4 mm	10000000 Cycles	1.5 mm	0.06 in	500 gf	500000 Cycles	125 V	Roller Plunger	80 C	-10 °C	Status Indicator
