EDV18 Series

Catalog

DISCONNECT TERMINAL 18-22AWG COPPER RED M 24.9MM NICKEL LOOSE

Part	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Tab Thickness	Tab Thickness	Wire Gauge [Max]	Wire Gauge [Min]	Terminal Type	Termination	Contact Material	Gender	Length - Overall [x]	Length - Overall [x]	Contact Finish	Insulation	Mounting Type	Color	Features	Tab Width [x]	Tab Width [x]	Insulation Diameter	Insulation Diameter	Tab Length	Tab Length

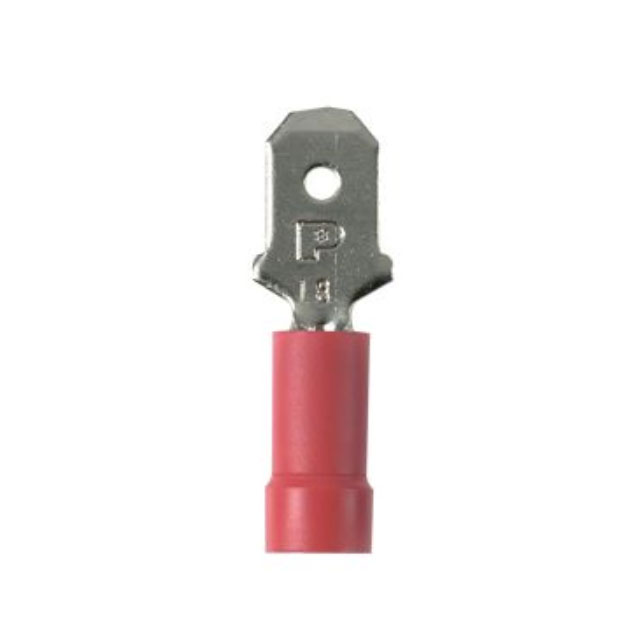

Panduit Corp EDV18-250M-L	0.154 "	3.91 mm	0.81 mm	0.032 in	22 AWG	17.5 AWG	Standard	Crimp	Copper	Male	0.98 in	24.89 mm	Nickel	Non-Mating End Insulated	Free Hanging (In-Line)	Red	Brazed Seam	6.35 mm	0.25 in

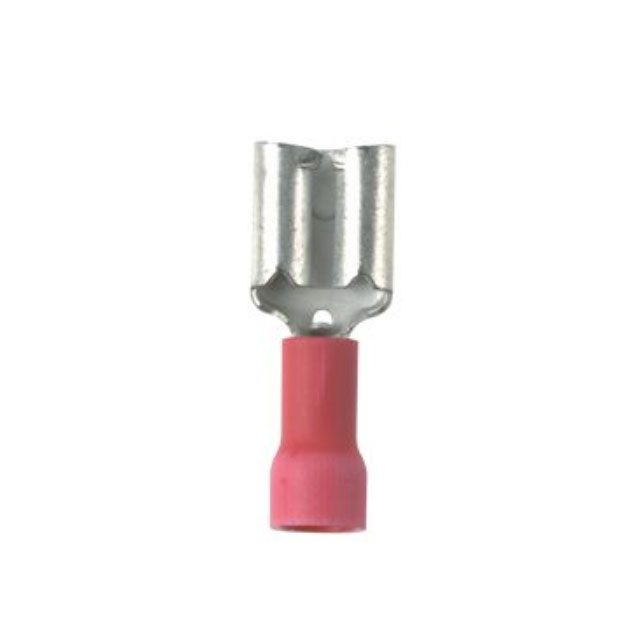

Panduit Corp EDV18-250B-L	0.15 in	3.81 mm	0.81 mm	0.032 in	22 AWG	17.5 AWG	Standard	Crimp	Brass	Female	0.81 "	20.57 mm	Tin	Non-Mating End Insulated	Free Hanging (In-Line)	Red	Serrated Termination	6.35 mm	0.25 in

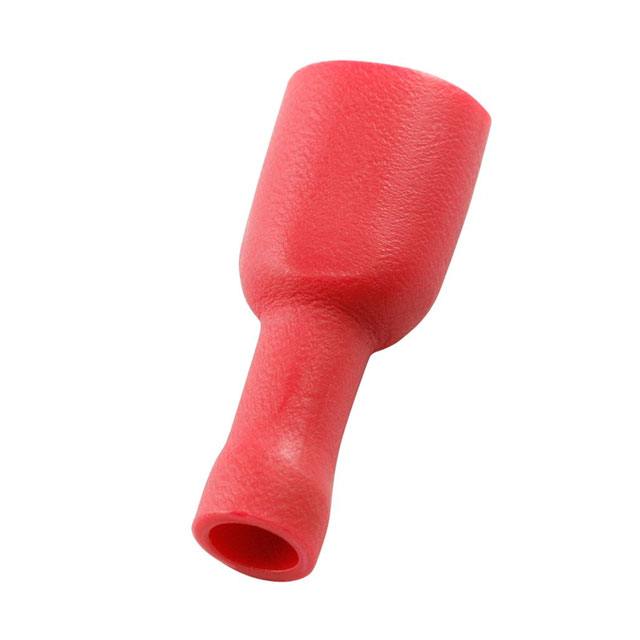

Panduit Corp EDV18-250FIB-Q			0.81 mm	0.032 in	22 AWG	17.5 AWG	Standard	Crimp	Brass	Female	0.87 in	22.1 mm	Tin	Fully Insulated	Free Hanging (In-Line)	Red	Butted Seam	6.35 mm	0.25 in	0.145 in	3.68 mm	0.3 in	7.62 mm
Panduit Corp EDV18-187MB-Q			0.81 mm	0.032 in	22 AWG	17.5 AWG	Standard	Crimp	Brass	Male	0.75 in	19.05 mm	Tin	Non-Mating End Insulated	Free Hanging (In-Line)	Red	Serrated Termination	4.75 mm	0.187 in	0.145 in	3.68 mm
Panduit Corp EDV18-250P-LYY	0.13 in	3.3 mm	0.81 mm	0.032 in	22 AWG	17.5 AWG	Stacked	Crimp	Brass	Female Male	0.88 in	22.35 mm	Tin	Non-Mating End Insulated	Free Hanging (In-Line)	Red		6.35 mm	0.25 in
Panduit Corp EDV18-250P-Q	0.13 in	3.3 mm	0.81 mm	0.032 in	22 AWG	17.5 AWG	Stacked	Crimp	Brass	Female Male	0.88 in	22.35 mm	Tin	Non-Mating End Insulated	Free Hanging (In-Line)	Red		6.35 mm	0.25 in
