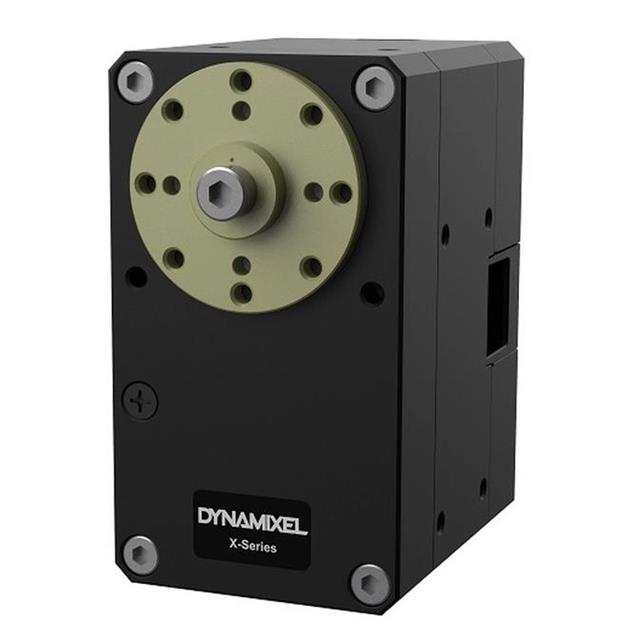

XH540-W150-R DYNAMIXEL SERVO
| Part | RPM | Voltage - Rated | Termination Style | Type | Function | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Motor Type | Operating Temperature [Max] | Operating Temperature [Min] | Gear Reduction Ratio | Torque - Max Momentary (oz-in / mNm) | Torque - Max Momentary (oz-in / mNm) | Features | Encoder Type | Weight | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ROBOTIS | 70 RPM | 12 VDC | Connector | DC Motor | Servomotor | 0.944 " | 36 mm | 1.417 in | 24 mm | Brushed | 80 °C | -5 °C | 152.3 | 1005.6 oz-in | 7100 mNm | Integrated Controller | Absolute | 165 g | 0.364 lb |
