895-009 Series
Manufacturer: EDAC Inc.
Beta
⌘K

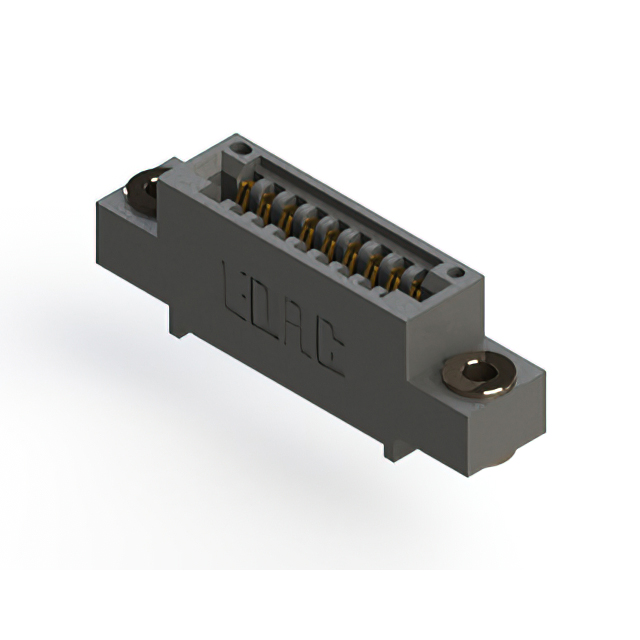

CONN EDGE SINGLE FML 9POS 0.100
| Part | Termination Rows | Material - Insulation | Number of Rows | Contact Material | Pitch | Pitch | Card Thickness [Max] | Card Thickness [Min] | Number of Positions/Bay/Row | Gender | Mounting Type | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Card Type | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Color | Contact Type | Contact Finish | Read Out | Termination | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | 1 | Copper Alloy | 0.1 " | 2.54 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 9 | Female | Through Hole | Floating Bobbin Top Mount Opening | 0.116 " | 2.95 mm | Non Specified - Single Edge | 0.25 Ám | 10 Áin | 9 | Black | Cantilever | Gold | Single | Solder | 125 °C | -40 C |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | 1 | Copper Alloy | 0.1 " | 2.54 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 9 | Female | Through Hole | M3 Threaded Insert Top Mount Opening | Non Specified - Single Edge | 0.25 Ám | 10 Áin | 9 | Black | Cantilever | Gold | Single | Wire Wrap | 125 °C | -40 C | ||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | 1 | Copper Alloy | 0.1 " | 2.54 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 9 | Female | Through Hole | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | Non Specified - Single Edge | 0.25 Ám | 10 Áin | 9 | Black | Cantilever | Gold | Single | Solder | 125 °C | -40 C |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | 1 | Copper Alloy | 0.1 " | 2.54 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 9 | Female | Through Hole | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | Non Specified - Single Edge | 0.25 Ám | 10 Áin | 9 | Black | Cantilever | Gold | Single | Solder | 125 °C | -40 C |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | 1 | Copper Alloy | 0.1 " | 2.54 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 9 | Female | Right Angle Through Hole | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | Non Specified - Single Edge | 0.25 Ám | 10 Áin | 9 | Black | Cantilever | Gold | Single | Solder | 125 °C | -40 C |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | 1 | Copper Alloy | 0.1 " | 2.54 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 9 | Female | Through Hole | Floating Bobbin Top Mount Opening | 0.116 " | 2.95 mm | Non Specified - Single Edge | 0.25 Ám | 10 Áin | 9 | Black | Cantilever | Gold | Single | Solder | 125 °C | -40 C |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | 1 | Copper Alloy | 0.1 " | 2.54 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 9 | Female | Through Hole | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm | Non Specified - Single Edge | 0.25 Ám | 10 Áin | 9 | Black | Cantilever | Gold | Single | Wire Wrap | 125 °C | -40 C |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | 1 | Copper Alloy | 0.1 " | 2.54 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 9 | Female | Through Hole | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | Non Specified - Single Edge | 0.25 Ám | 10 Áin | 9 | Black | Cantilever | Gold | Single | Wire Wrap | 125 °C | -40 C |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | 1 | Copper Alloy | 0.1 " | 2.54 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 9 | Female | Through Hole | 0.128 " | 3.25 mm | Non Specified - Single Edge | 0.25 Ám | 10 Áin | 9 | Black | Cantilever | Gold | Single | Solder | 125 °C | -40 C | |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | 1 | Copper Alloy | 0.1 " | 2.54 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 9 | Female | Through Hole | Flush Mount M3 Threaded Insert Top Opening | Non Specified - Single Edge | 0.25 Ám | 10 Áin | 9 | Black | Cantilever | Gold | Single | Solder | 125 °C | -40 C |
