725-047 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SINGLE FML 47POS 0.100

Part	Material - Insulation	Termination Rows	Card Type	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Color	Number of Positions/Bay/Row	Termination	Pitch	Pitch	Number of Positions	Gender	Card Thickness [Max]	Card Thickness [Min]	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Read Out	Number of Rows	Mounting Type
EDAC Inc. 725-047-540-101	Polyester Thermoplastic	1	Non Specified - Single Edge	Copper Alloy	-40 C	105 ░C	Gold	Black	47	Press-Fit Wire Wrap	0.1 "	2.54 mm	47	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	30 Áin	0.76 Ám	Single	1	Through Hole
EDAC Inc. 725-047-545-101	Polyester Thermoplastic	1	Non Specified - Single Edge	Copper Alloy	-40 C	105 ░C	Gold	Black	47	Press-Fit Wire Wrap	0.1 "	2.54 mm	47	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	30 Áin	0.76 Ám	Single	1	Through Hole
EDAC Inc. 725-047-541-101	Polyester Thermoplastic	1	Non Specified - Single Edge	Copper Alloy	-40 C	105 ░C	Gold	Black	47	Press-Fit Wire Wrap	0.1 "	2.54 mm	47	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	30 Áin	0.76 Ám	Single	1	Through Hole
EDAC Inc. 725-047-520-101	Polyester Thermoplastic	1	Non Specified - Single Edge	Copper Alloy	-40 C	105 ░C	Gold	Black	47	Press-Fit	0.1 "	2.54 mm	47	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	30 Áin	0.76 Ám	Single	1	Through Hole

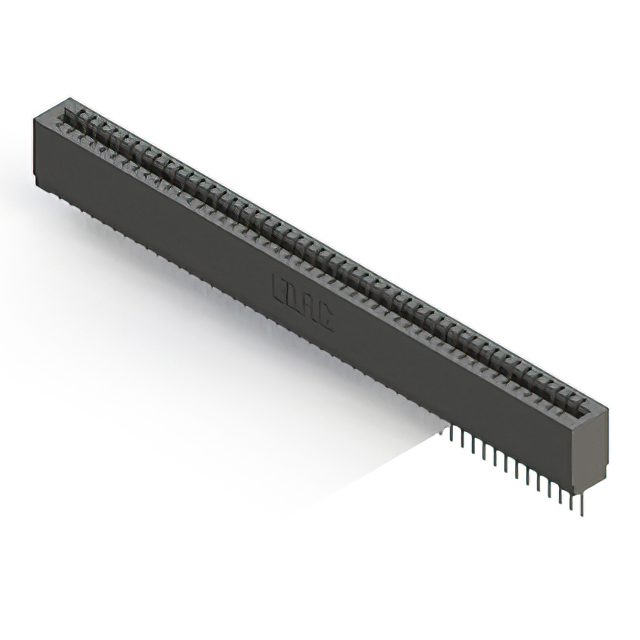

EDAC Inc. 725-047-522-101	Polyester Thermoplastic	1	Non Specified - Single Edge	Copper Alloy	-40 C	105 ░C	Gold	Black	47	Press-Fit	0.1 "	2.54 mm	47	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	30 Áin	0.76 Ám	Single	1	Through Hole
