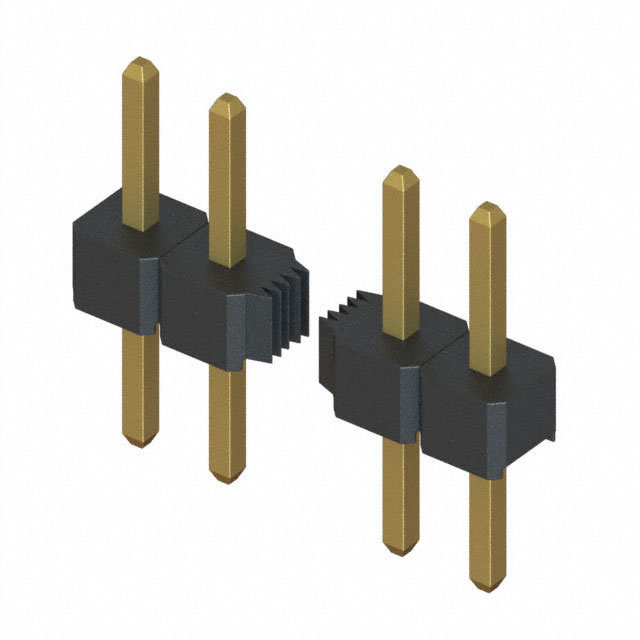

M22-201 Series

Catalog

HEADER CONNECTOR,PCB MOUNT,RECEPT,18 CONTACTS,PIN,0.079 PITCH,PC TAIL TERMINAL ROHS COMPLIANT: YES

Part	Mated Stacking Heights	Contact Length - Post [x]	Contact Length - Post	Contact Length - Mating	Contact Length - Mating	Number of Positions Loaded	Current Rating (Amps)	Overall Contact Length	Overall Contact Length	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Insulation Height	Insulation Height	Contact Type	Material Flammability Rating	Contact Material	Connector Type	Shrouding	Pitch - Mating	Pitch - Mating	Number of Positions	Contact Finish - Mating	Insulation Color	Contact Shape	Termination	Number of Rows	Mounting Type	Fastening Type	Contact Finish - Post
Harwin Inc. M22-2011805	5.9 mm 8.6 mm	0.134 "	3.4 mm	3.5 mm	0.138 in	All	1 A	8.4 mm	0.331 in	-55 C	105 ░C	Nylon 6T Polyamide (PA6T)	0.059 in	1.5 mm	Male Pin	UL94 V-0	Phosphor Bronze	Header Cuttable	Unshrouded	0.079 "	2 mm	18	Gold	Black	Square	Solder	1	Through Hole	Push-Pull
Harwin Inc. M22-2011246	5.9 mm 8.6 mm	0.134 "	3.4 mm	3.5 mm	0.138 in	All	1 A	8.4 mm	0.331 in	-55 C	105 ░C	Nylon 6T Polyamide (PA6T)	0.059 in	1.5 mm	Male Pin	UL94 V-0	Phosphor Bronze	Header Cuttable	Unshrouded	0.079 "	2 mm	12		Black	Square	Solder	1	Through Hole	Push-Pull	Tin
Harwin Inc. M22-2011846	5.9 mm 8.6 mm	0.134 "	3.4 mm	3.5 mm	0.138 in	All	1 A	8.4 mm	0.331 in	-55 C	105 ░C	Nylon 6T Polyamide (PA6T)	0.059 in	1.5 mm	Male Pin	UL94 V-0	Phosphor Bronze	Header Cuttable	Unshrouded	0.079 "	2 mm	18		Black	Square	Solder	1	Through Hole	Push-Pull	Tin
Harwin Inc. M22-2010505	5.9 mm 8.6 mm	0.134 "	3.4 mm	3.5 mm	0.138 in	All	1 A	8.4 mm	0.331 in	-55 C	105 ░C	Nylon 6T Polyamide (PA6T)	0.059 in	1.5 mm	Male Pin	UL94 V-0	Phosphor Bronze	Header Cuttable	Unshrouded	0.079 "	2 mm	5	Gold	Black	Square	Solder	1	Through Hole	Push-Pull
Harwin Inc. M22-2010946	5.9 mm 8.6 mm	0.134 "	3.4 mm	3.5 mm	0.138 in	All	1 A	8.4 mm	0.331 in	-55 C	105 ░C	Nylon 6T Polyamide (PA6T)	0.059 in	1.5 mm	Male Pin	UL94 V-0	Phosphor Bronze	Header Cuttable	Unshrouded	0.079 "	2 mm	9		Black	Square	Solder	1	Through Hole	Push-Pull	Tin
Harwin Inc. M22-2011705	5.9 mm 8.6 mm	0.134 "	3.4 mm	3.5 mm	0.138 in	All	1 A	8.4 mm	0.331 in	-55 C	105 ░C	Nylon 6T Polyamide (PA6T)	0.059 in	1.5 mm	Male Pin	UL94 V-0	Phosphor Bronze	Header Cuttable	Unshrouded	0.079 "	2 mm		Gold	Black	Square	Solder	1	Through Hole	Push-Pull

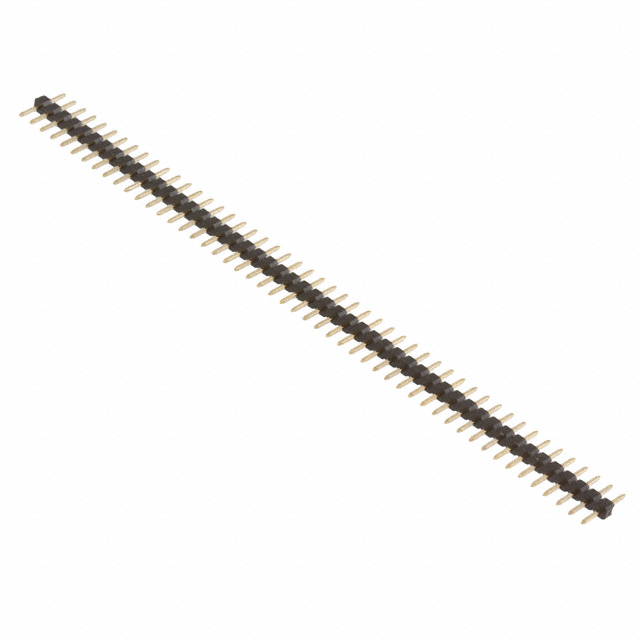

Harwin Inc. M22-2015005	5.9 mm 8.6 mm	0.134 "	3.4 mm	3.5 mm	0.138 in	All	1 A	8.4 mm	0.331 in	-55 C	105 ░C	Nylon 6T Polyamide (PA6T)	0.059 in	1.5 mm	Male Pin	UL94 V-0	Phosphor Bronze	Header Cuttable	Unshrouded	0.079 "	2 mm	50	Gold	Black	Square	Solder	1	Through Hole	Push-Pull
Harwin Inc. M22-2011205	5.9 mm 8.6 mm	0.134 "	3.4 mm	3.5 mm	0.138 in	All	1 A	8.4 mm	0.331 in	-55 C	105 ░C	Nylon 6T Polyamide (PA6T)	0.059 in	1.5 mm	Male Pin	UL94 V-0	Phosphor Bronze	Header Cuttable	Unshrouded	0.079 "	2 mm	12	Gold	Black	Square	Solder	1	Through Hole	Push-Pull
Harwin Inc. M22-2010305	5.9 mm 8.6 mm	0.134 "	3.4 mm	3.5 mm	0.138 in	All	1 A	8.4 mm	0.331 in	-55 C	105 ░C	Nylon 6T Polyamide (PA6T)	0.059 in	1.5 mm	Male Pin	UL94 V-0	Phosphor Bronze	Header Cuttable	Unshrouded	0.079 "	2 mm		Gold	Black	Square	Solder	1	Through Hole	Push-Pull
Harwin Inc. M22-2011005	5.9 mm 8.6 mm	0.134 "	3.4 mm	3.5 mm	0.138 in	All	1 A	8.4 mm	0.331 in	-55 C	105 ░C	Nylon 6T Polyamide (PA6T)	0.059 in	1.5 mm	Male Pin	UL94 V-0	Phosphor Bronze	Header Cuttable	Unshrouded	0.079 "	2 mm	10	Gold	Black	Square	Solder	1	Through Hole	Push-Pull
