726-100 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FML 100POS 0.125

Part	Material - Insulation	Termination Rows [custom]	Termination	Mounting Type	Card Thickness [Max]	Card Thickness [Min]	Contact Finish	Number of Rows [custom]	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Pitch	Pitch	Read Out	Gender	Card Type	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Number of Positions/Bay/Row	Color
EDAC Inc. 726-100-527-201	Polyester Thermoplastic	2	Press-Fit	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	2	Copper Alloy	-40 C	105 ░C	3.18 mm	0.125 in	Dual	Female	Non Specified - Dual Edge	Cantilever	30 Áin	0.76 Ám	100	50	Black
EDAC Inc. 726-100-541-201	Polyester Thermoplastic	2	Press-Fit Wire Wrap	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	2	Copper Alloy	-40 C	105 ░C	3.18 mm	0.125 in	Dual	Female	Non Specified - Dual Edge	Cantilever	30 Áin	0.76 Ám	100	50	Black
EDAC Inc. 726-100-545-201	Polyester Thermoplastic	2	Press-Fit Wire Wrap	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	2	Copper Alloy	-40 C	105 ░C	3.18 mm	0.125 in	Dual	Female	Non Specified - Dual Edge	Cantilever	30 Áin	0.76 Ám	100	50	Black

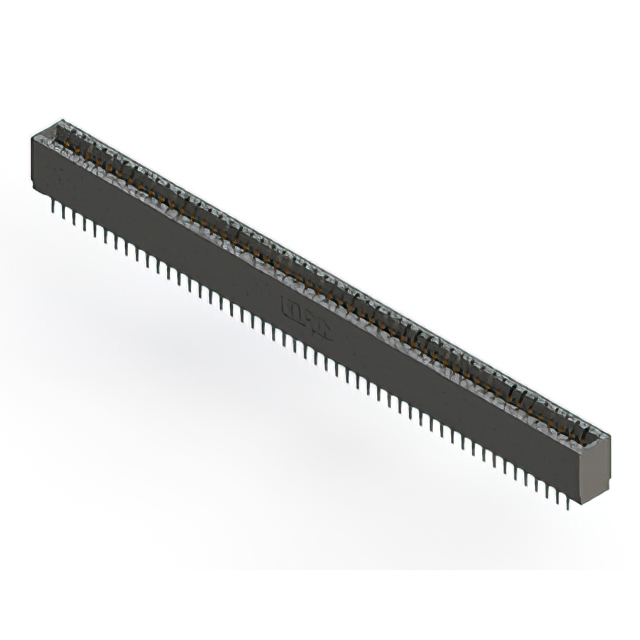

EDAC Inc. 726-100-520-201	Polyester Thermoplastic	2	Press-Fit	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	2	Copper Alloy	-40 C	105 ░C	3.18 mm	0.125 in	Dual	Female	Non Specified - Dual Edge	Cantilever	30 Áin	0.76 Ám	100	50	Black
EDAC Inc. 726-100-553-201	Polyester Thermoplastic	2	Press-Fit Wire Wrap	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	2	Copper Alloy	-40 C	105 ░C	3.18 mm	0.125 in	Dual	Female	Non Specified - Dual Edge	Cantilever	30 Áin	0.76 Ám	100	50	Black

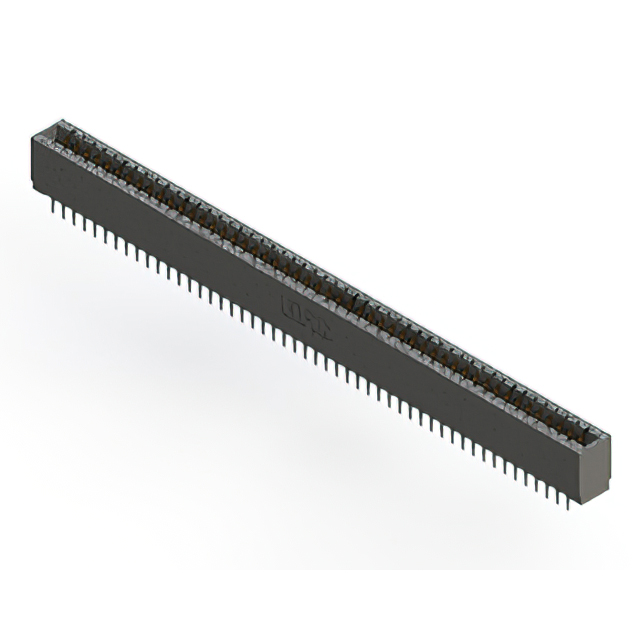

EDAC Inc. 726-100-525-201	Polyester Thermoplastic	2	Press-Fit	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	2	Copper Alloy	-40 C	105 ░C	3.18 mm	0.125 in	Dual	Female	Non Specified - Dual Edge	Cantilever	30 Áin	0.76 Ám	100	50	Black
