215447 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

KIT TRANSFERPUNCHGUIDE LSSOCKET

Part	For Use With/Related Products	Accessory Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions	Shrouding	Insulation Height	Insulation Height	Mounting Type	Style	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Mating	Contact Length - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Termination	Insulation Material	Contact Finish - Mating	Contact Finish - Post	Overall Contact Length	Overall Contact Length	Number of Positions Loaded	Number of Rows [custom]	Connector Type	Contact Material	Pitch - Mating	Pitch - Mating	Fastening Type	Insulation Color	Contact Shape	Contact Type	Material Flammability Rating	Contact Length - Post [x]	Contact Length - Post

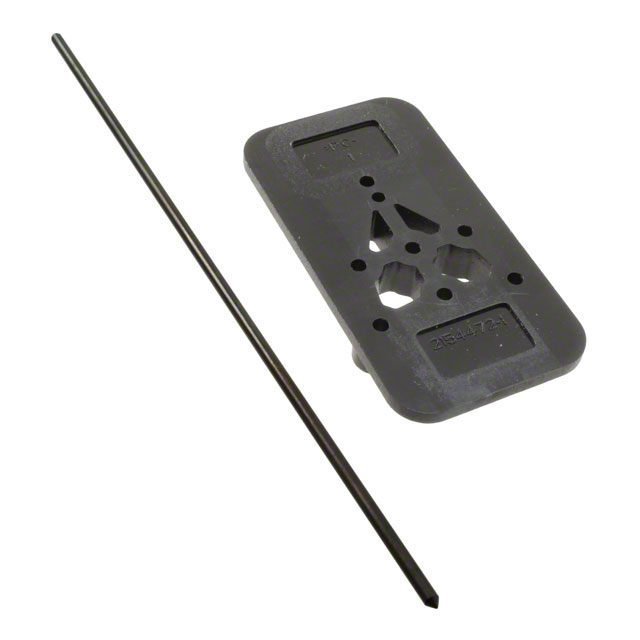

TE Connectivity AMP Connectors 2154473-1	Luxeon S	Transfer Punch Guide Kit
TE Connectivity AMP Connectors 215447-4			1.27 µm	50 µin	8	Unshrouded	0.114 in	2.9 mm	Through Hole	Board to Board Cable	0.76 Ám	30 Áin	6.7 mm	0.264 in	0.1 in	2.54 mm	Press-Fit Solder	Polyester Glass Filled	Gold	Tin	0.535 in	13.59 mm	All	2	Header	Phosphor Bronze	0.1 "	2.54 mm	Push-Pull	Green	Square	Male Pin	UL94 V-0	0.157 in	4 mm
TE Connectivity AMP Connectors 1-215447-0			1.27 µm	50 µin	20	Unshrouded	0.114 in	2.9 mm	Through Hole	Board to Board Cable	0.76 Ám	30 Áin	6.7 mm	0.264 in	0.1 in	2.54 mm	Press-Fit Solder	Polyester Glass Filled	Gold	Tin	0.535 in	13.59 mm	All	2	Header	Phosphor Bronze	0.1 "	2.54 mm	Push-Pull	Green	Square	Male Pin	UL94 V-0	0.157 in	4 mm
TE Connectivity AMP Connectors 215447-7			1.27 µm	50 µin	14	Unshrouded	0.114 in	2.9 mm	Through Hole	Board to Board Cable	0.76 Ám	30 Áin	6.7 mm	0.264 in	0.1 in	2.54 mm	Press-Fit Solder	Polyester Glass Filled	Gold	Tin	0.535 in	13.59 mm	All	2	Header	Phosphor Bronze	0.1 "	2.54 mm	Push-Pull	Green	Square	Male Pin	UL94 V-0	0.157 in	4 mm
TE Connectivity AMP Connectors 4-215447-0			1.27 µm	50 µin	80	Unshrouded	0.114 in	2.9 mm	Through Hole	Board to Board Cable	0.76 Ám	30 Áin	6.7 mm	0.264 in	0.1 in	2.54 mm	Press-Fit Solder	Polyester Glass Filled	Gold	Tin	0.535 in	13.59 mm	All	2	Header	Phosphor Bronze	0.1 "	2.54 mm	Push-Pull	Green	Square	Male Pin	UL94 V-0	0.157 in	4 mm
