1269AS Series

Catalog

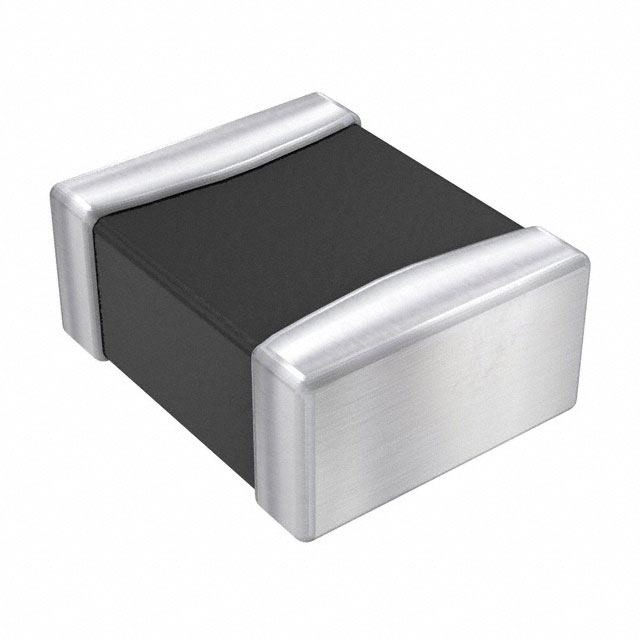

FIXED IND 2.2UH 1.9A 156MOHM SMD

Part	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Inductance	DC Resistance (DCR) [Max]	Current Rating (Amps)	Material - Core	Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Inductance Frequency - Test	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Type	Supplier Device Package	Supplier Device Package	Package / Case	Package / Case
Murata Electronics 1269AS-H-2R2M=P2	Shielded	85 °C	-40 C	2.2 µH	156 mOhm	1.9 A	Iron Powder	20 %	0.039 in	1 mm	1 MHz	Surface Mount	2.5 mm	0.079 in	0.098 in	2 mm	Drum Core Wirewound	2520 Metric	1008	2520 Metric	1008
Murata Electronics 1269AS-H-100N=P2	Shielded	85 °C	-40 C	10 µH	689 mOhm	1 A	Iron Powder	30 %	0.039 in	1 mm	1 MHz	Surface Mount	2.5 mm	0.079 in	0.098 in	2 mm	Drum Core Wirewound	2520 Metric	1008	2520 Metric	1008
Murata Electronics 1269AS-H-3R3M=P2	Shielded	85 °C	-40 C	3.3 µH	228 mOhm	1.5 A	Iron Powder	20 %	0.039 in	1 mm	1 MHz	Surface Mount	2.5 mm	0.079 in	0.098 in	2 mm	Drum Core Wirewound	2520 Metric	1008	2520 Metric	1008
Murata Electronics 1269AS-H-1R5M=P2	Shielded	85 °C	-40 C	1.5 µH	108 mOhm	2.1 A	Iron Powder	20 %	0.039 in	1 mm	1 MHz	Surface Mount	2.5 mm	0.079 in	0.098 in	2 mm	Drum Core Wirewound	2520 Metric	1008	2520 Metric	1008
Murata Electronics 1269AS-H-6R8M=P2	Shielded	85 °C	-40 C	6.8 µH	516 mOhm	1.1 A	Iron Powder	20 %	0.039 in	1 mm	1 MHz	Surface Mount	2.5 mm	0.079 in	0.098 in	2 mm	Drum Core Wirewound	2520 Metric	1008	2520 Metric	1008
Murata Electronics 1269AS-H-R47M=P2	Shielded	85 °C	-40 C	470 nH	46 mOhm	3.5 A	Iron Powder	20 %	0.039 in	1 mm	1 MHz	Surface Mount	2.5 mm	0.079 in	0.098 in	2 mm	Drum Core Wirewound	2520 Metric	1008	2520 Metric	1008
Murata Electronics 1269AS-H-4R7M=P2	Shielded	85 °C	-40 C	4.7 ÁH	300 mOhm	1.3 A	Iron Powder	20 %	0.039 in	1 mm	1 MHz	Surface Mount	2.5 mm	0.079 in	0.098 in	2 mm	Drum Core Wirewound	2520 Metric	1008	2520 Metric	1008
