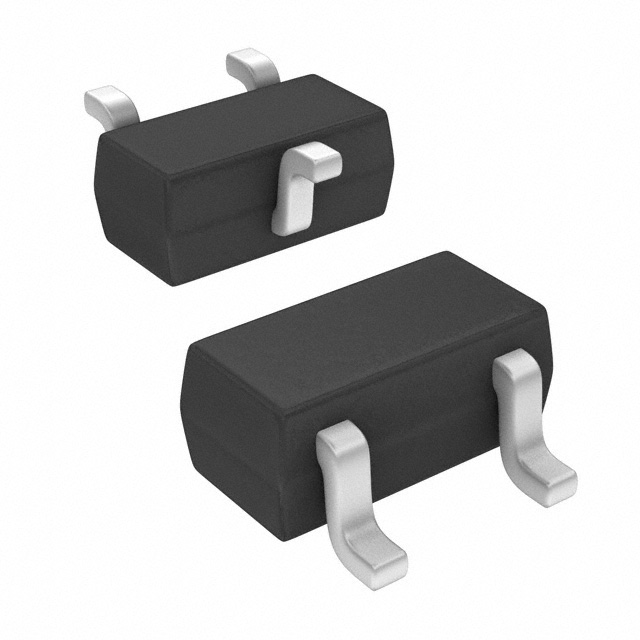

Bipolar Transistors, NPN Bias Resistor Built-in Transistors (BRT), 2.2 kΩ/10 kΩ, SOT-416(SSM)
Bipolar Transistors, NPN Bias Resistor Built-in Transistors (BRT), 2.2 kΩ/10 kΩ, SOT-416(SSM)
Bipolar Transistors, NPN Bias Resistor Built-in Transistors (BRT), 2.2 kΩ/10 kΩ, SOT-416(SSM)
| Part | Resistor - Base (R1) | Package / Case | Mounting Type | DC Current Gain (hFE) (Min) @ Ic, Vce [Min] | Frequency - Transition | Resistor - Emitter Base (R2) | Vce Saturation (Max) @ Ib, Ic | Supplier Device Package | Transistor Type | Current - Collector Cutoff (Max) [Max] | Voltage - Collector Emitter Breakdown (Max) [Max] | Current - Collector (Ic) (Max) [Max] | Power - Max [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Toshiba Semiconductor and Storage | 2.2 kOhm | SC-75 SOT-416 | Surface Mount | 50 | 250 MHz | 10 kOhms | 300 mV | SSM | NPN - Pre-Biased | 500 nA | 50 V | 100 mA | 100 mW |
