175630 Series

Catalog

CONN RCPT 10POS 0.049 TIN SMD

Part	Number of Rows	Insulation Color	Contact Shape	Number of Positions Loaded	Contact Material	Mounting Type	Pitch - Mating	Pitch - Mating	Number of Positions	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Contact Finish - Post	Row Spacing - Mating	Row Spacing - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Current Rating (Amps)	Voltage Rating	Material Flammability Rating	Contact Type
TE Connectivity Raychem Cable Protection 4-175630-0	2	Black	Circular	All	Phosphor Bronze	Surface Mount	1.25 mm	0.049 in	10	Solder	-30 ░C	105 ░C	Receptacle	Tin	0.049 in	1.25 mm	31.5 µin	0.8 µm	Push-Pull	0.5 A	50 V	UL94 V-0	Forked

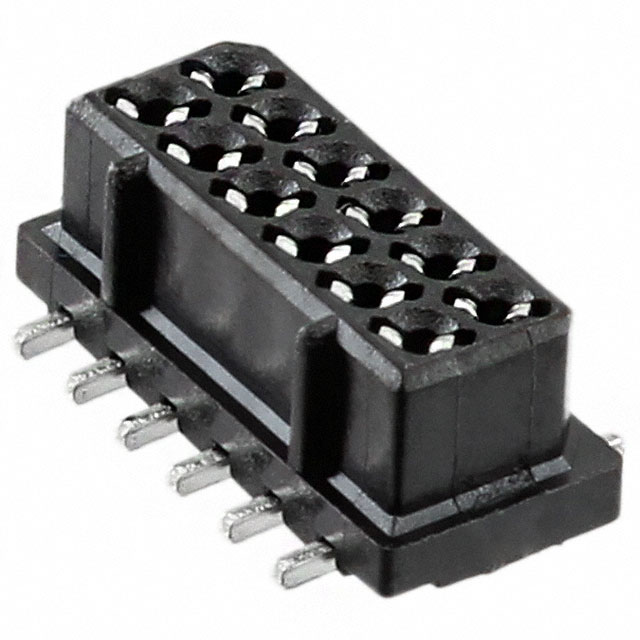

TE Connectivity Raychem Cable Protection 4-175630-2	2	Black	Circular	All	Phosphor Bronze	Surface Mount	1.25 mm	0.049 in	12	Solder	-30 ░C	105 ░C	Receptacle	Tin	0.049 in	1.25 mm	31.5 µin	0.8 µm	Push-Pull	0.5 A	50 V	UL94 V-0	Forked

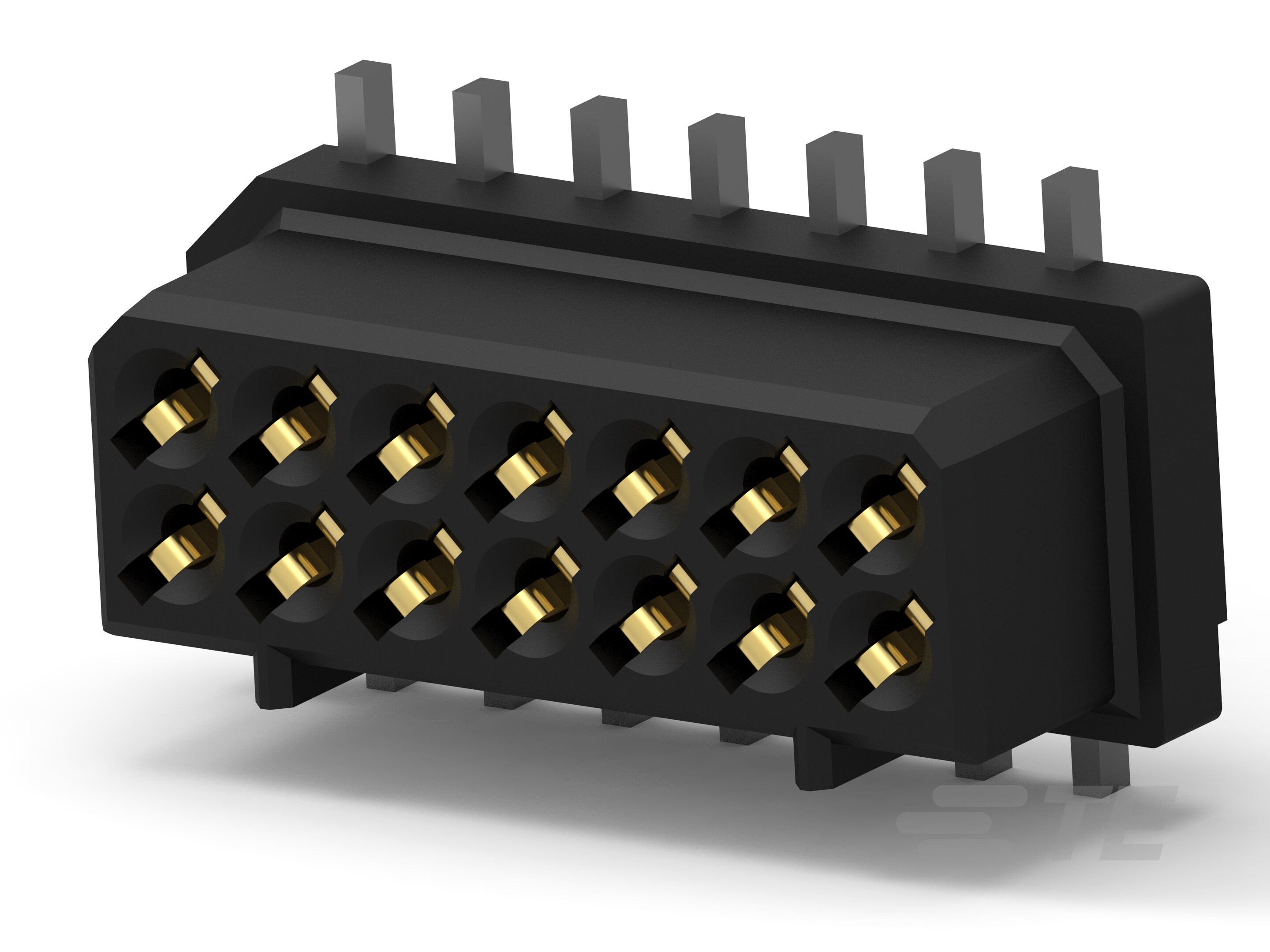

TE Connectivity Raychem Cable Protection 4-175630-4	2	Black	Circular	All	Phosphor Bronze	Surface Mount	1.25 mm	0.049 in	14	Solder	-30 ░C	105 ░C	Receptacle	Tin	0.049 in	1.25 mm	31.5 µin	0.8 µm	Push-Pull	0.5 A	50 V	UL94 V-0	Forked
