M83-LFC1 Series

Catalog

CONNECTOR, RCPT, 60POS, 3ROW, 2MM

Part	Color	Row Spacing	Row Spacing	Contact Finish	Number of Positions	Pitch [x]	Pitch [x]	Wire Gauge [Min]	Wire Gauge [Max]	Number of Rows [custom]	Wire Type	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Features	Cable Termination	Mounting Type	Connector Type
Harwin Inc. M83-LFC1F2N60-0000-000	Black	2 mm	0.079 in	Gold	60	0.079 in	2 mm	24 AWG	28 AWG	3	Discrete	Female Socket	0.3 Ám	11.8 Áin	Jackscrews	Crimp	Free Hanging (In-Line)	Receptacle

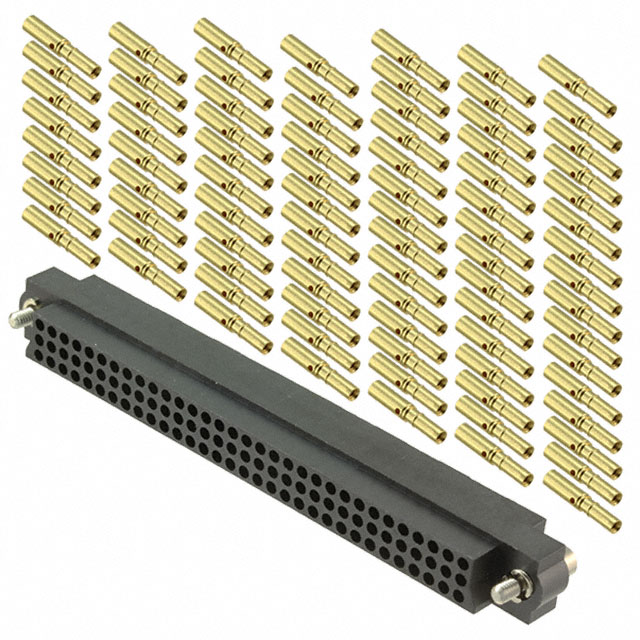

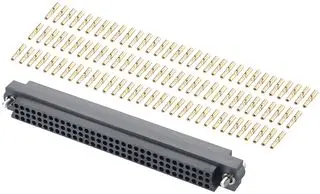

Harwin Inc. M83-LFC1F2N96-0000-000	Black	2 mm	0.079 in	Gold	96	0.079 in	2 mm	24 AWG	28 AWG	3	Discrete	Female Socket	0.3 Ám	11.8 Áin	Jackscrews	Crimp	Free Hanging (In-Line)	Receptacle

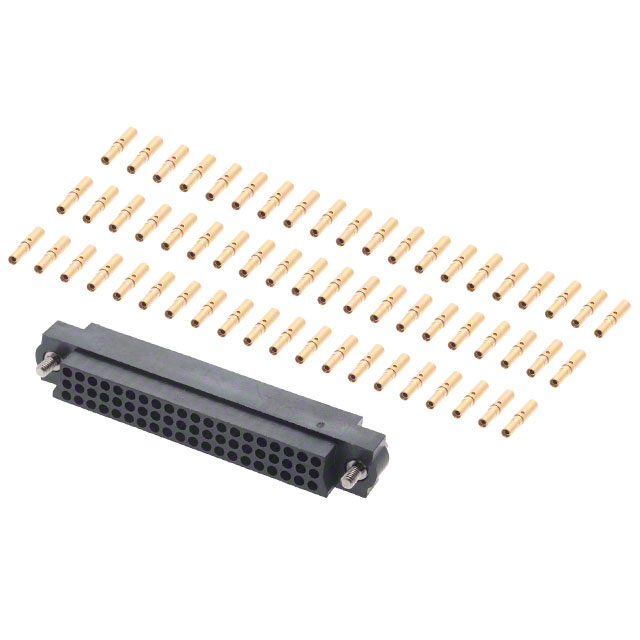

Harwin Inc. M83-LFC1F1N60-0000-000	Black	2 mm	0.079 in	Gold	60	0.079 in	2 mm	24 AWG	28 AWG	3	Discrete	Female Socket	0.3 Ám	11.8 Áin	Jackscrews	Crimp	Free Hanging (In-Line)	Receptacle
Harwin Inc. M83-LFC1F1N27-0000-000	Black	2 mm	0.079 in	Gold	27	0.079 in	2 mm	24 AWG	28 AWG	3	Discrete	Female Socket	0.3 Ám	11.8 Áin	Jackscrews	Crimp	Free Hanging (In-Line)	Receptacle

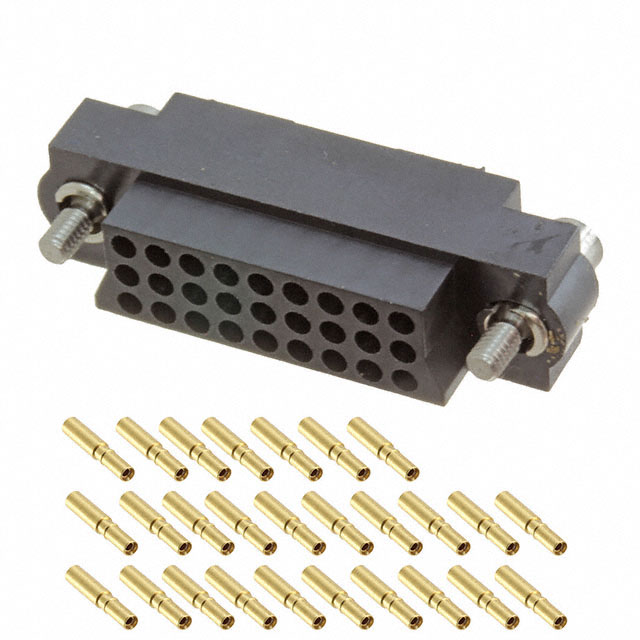

Harwin Inc. M83-LFC1F2N27-0000-000	Black	2 mm	0.079 in	Gold	27	0.079 in	2 mm	24 AWG	28 AWG	3	Discrete	Female Socket	0.3 Ám	11.8 Áin	Jackscrews	Crimp	Free Hanging (In-Line)	Receptacle
Harwin Inc. M83-LFC1F1N18-0000-000	Black	2 mm	0.079 in	Gold	18	0.079 in	2 mm	24 AWG	28 AWG	3	Discrete	Female Socket	0.3 Ám	11.8 Áin	Jackscrews	Crimp	Free Hanging (In-Line)	Receptacle
Harwin Inc. M83-LFC1F2N36-0000-000	Black	2 mm	0.079 in	Gold	36	0.079 in	2 mm	24 AWG	28 AWG	3	Discrete	Female Socket	0.3 Ám	11.8 Áin	Jackscrews	Crimp	Free Hanging (In-Line)	Receptacle
Harwin Inc. M83-LFC1F1N96-0000-000	Black	2 mm	0.079 in	Gold	96	0.079 in	2 mm	24 AWG	28 AWG	3	Discrete	Female Socket	0.3 Ám	11.8 Áin	Jackscrews	Crimp	Free Hanging (In-Line)	Receptacle
